L-force | PLC Designer
General Editors

DMS 4.1 EN 03/2011 TD29 689

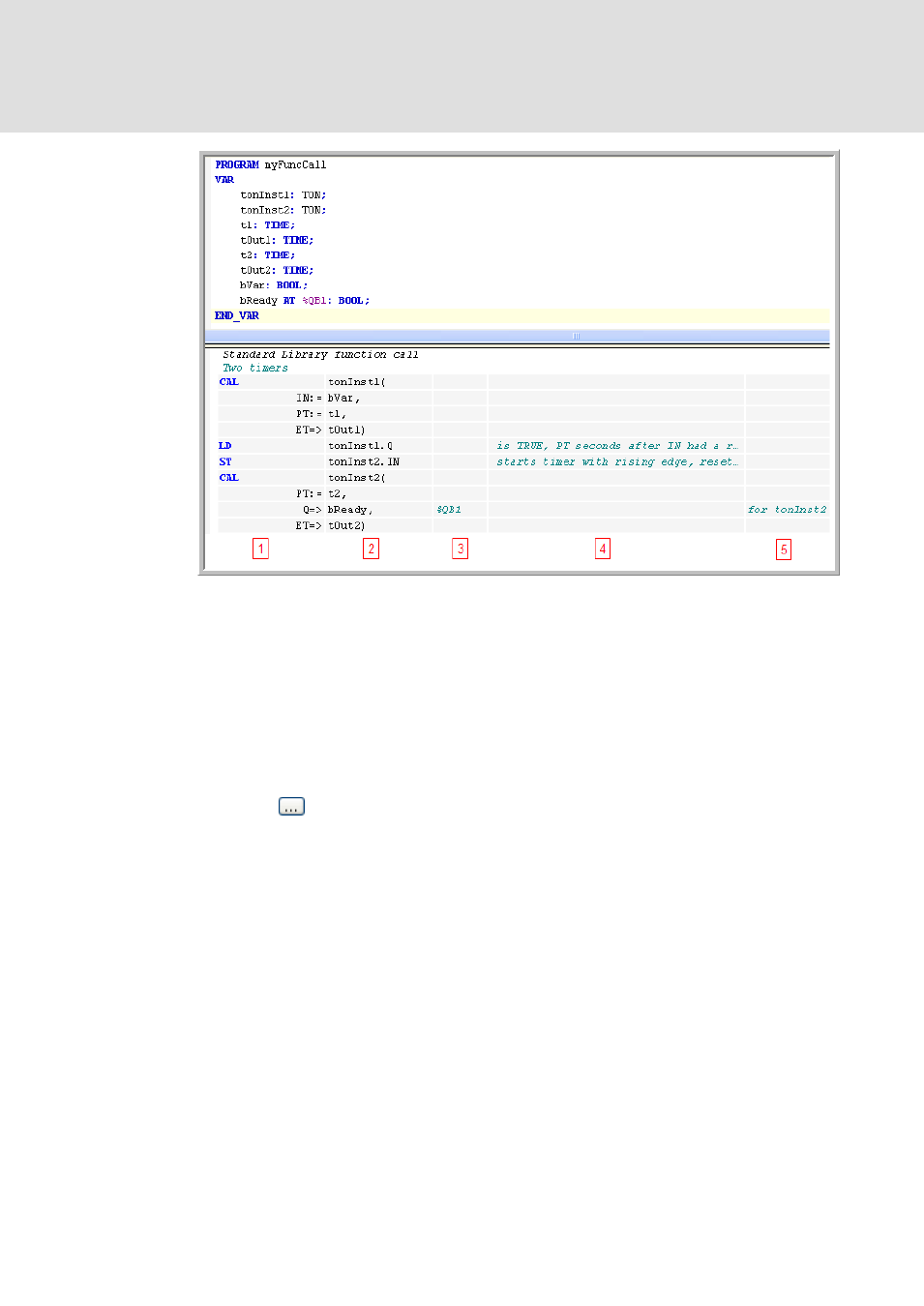

Abb. 374 IL table editor
Navigating in the table:
• Up- and Down arrow keys: Moving to the field above resp. below
• : Moving within a line to the field to the right.
• + : Moving within in a line to the field to the left.
• : Open the currently selected field for editing. Alternatively perform a
further mouse-click on the field. If applicable the input assistant will be available
via the
button. A currently opened edit field can be closed by ,
confirming the current entries, or by , cancelling the made entries.
• + : Enter a new line below the current one.
• : Remove the current line, that is where you have currently selected any
field.
• Cut, Copy, Paste: To copy one or several lines select at least one field of the line(s)
and use the copy command. To cut a line, use the Cut command. Paste will insert
the previously copied/cut lines before the line where currently a field is selected. If
no field is selected they will be inserted at the end of the network.
• + scrolls to the begin of the document and marks the first network.
• + scrolls to the end of the document and marks the last network
• scrolls one screen up and marks the topmost rectangle.
• scrolls one screen down and marks the topmost rectangle.
