L-force | PLC Designer
Menu Commands sorted by Categories

DMS 4.1 EN 03/2011 TD29 515
12.31.12 Online List ...
This command (category Trace) opens a dialog, who is listening all traces currently
existing on the device. If the trace symbol is placed under an application, the traces
running under this application are listed. If the trace symbol is placed under the device,
all traces of the applications below are listed and additionally the vendor-specific
traces implemented in the device.

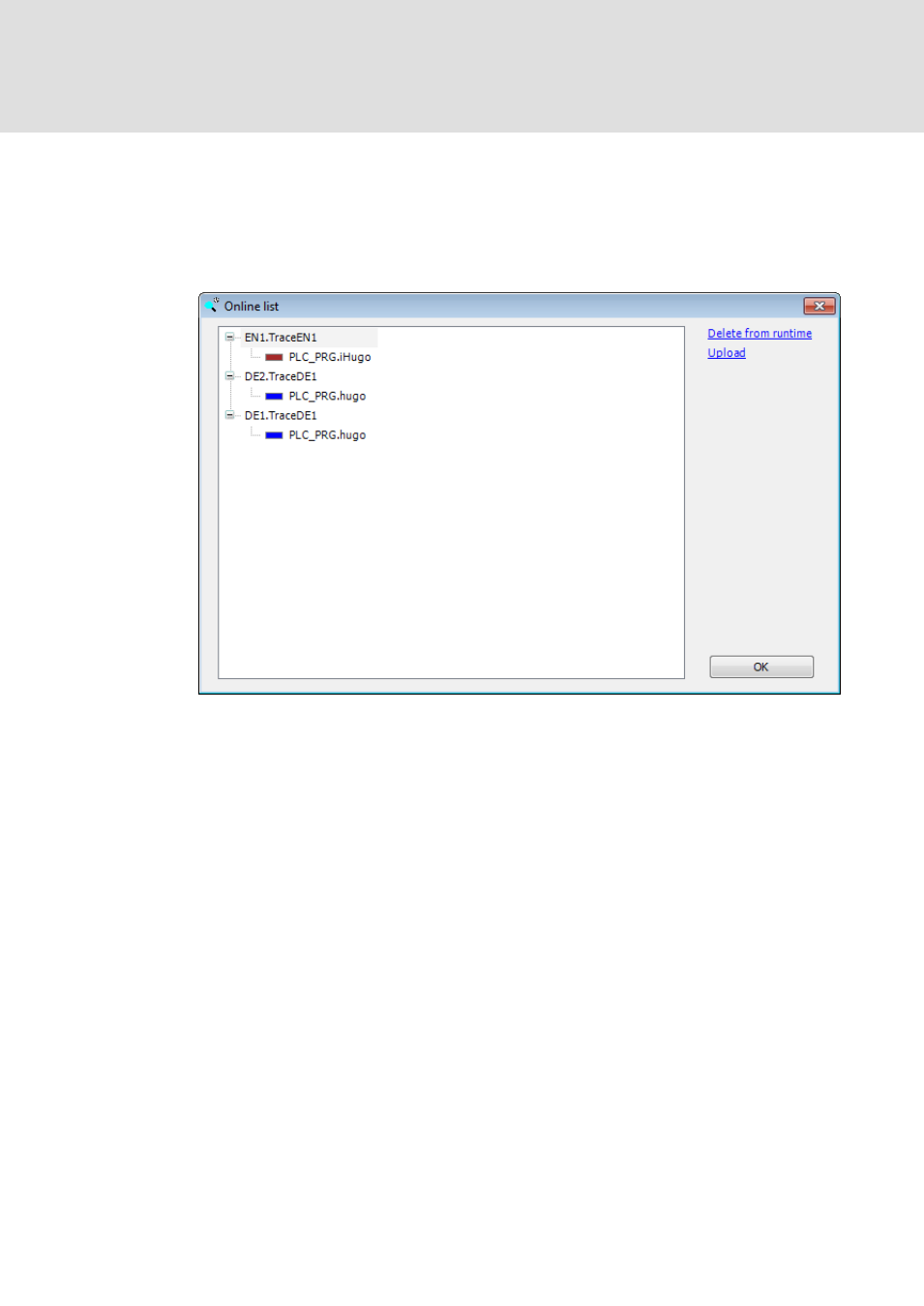

Abb. 273 'Online list' dialog
Delete from runtime: With this command the selected trace is removed.
Upload: With this command the selected trace is loaded up from the runtime system.
This command is only available, when in the runtime system exists the component
'Trace Manager'.
12.31.13 Upload Trace
This command (category Trace) will usually upload all trace records being below the
object. If it is positioned below an application the trace records configured in »PLC
Designer« programming system will visualized. If it is positioned below an device, all
vendor dependent trace records who sampling parameters will visualized, too. The
extended name with instance path provides non-ambiguous names (e.g.
"Application.Trace.MyRecord").
This command is only available, when in the runtime system exists the component
'Trace Manager'.
