L-force | PLC Designer
Menu Commands sorted by Categories

DMS 4.1 EN 03/2011 TD29 299
12.13.12 Insert Coil
Symbol:
Shortcut: +
This command (category 'FBD / LD / IL') is used to insert a coil in parallel to the previous
coils.
If the marked position is a connection between the contacts and the coils, then the
new coil will be inserted as the last. If the marked position is a coil, then the new coil
will be inserted directly above it.
The coil is given the text "???" as a default setting. You can click on this text and
change it to the desired variable or you can use the Input Assistant instead.
For the possibility of entering addresses, of linebreaks for variable names and of
comments per coil please see the description of the Ladder Options dialog.
12.13.13 Insert Set Coil
Symbol:
This command (category 'FBD / LD / IL') is used to insert a set coil. Alternatively the
combination of the commands 'Insert' 'Coil' and' Extras' 'Set/Reset' can be used to
insert a set coil.
12.13.14 Insert Reset Coil
Symbol:
This command (category 'FBD / LD / IL') is used to insert a reset coil. Alternatively a
combination of the commands 'Insert' 'Coil' and' Extras' 'Set/Reset' can be used to
insert a reset coil.

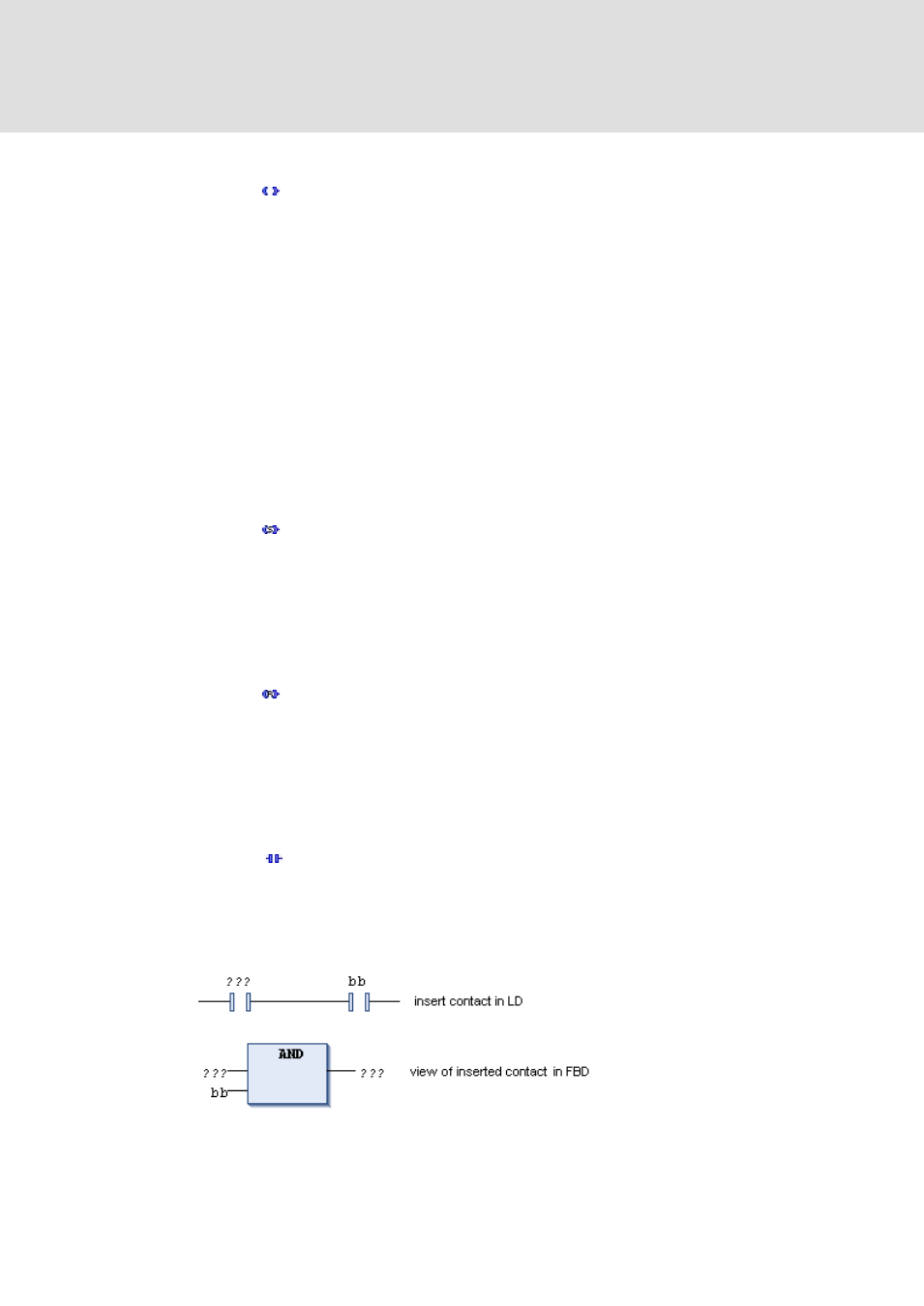

12.13.15 Insert Contact
Symbol:
Shortcut: +
This command (category 'FBD / LD / IL') inserts a contact in a LD network. It is not
available in the FBD and IL editor but will be converted appropriately when switching
views.
