Menu Commands sorted by Categories
296 DMS 4.1 EN 03/2011 TD29

12.13.8 Insert Jump
Symbol:
Shortcut: +
This command (category 'FBD / LD / IL') inserts a jump. The target of a jump is another
network, that is the label of that network.
In FBD or LD, depending on the selected cursor position, insertion takes place directly in
front of a selected input (Cursor Position 2), directly after a selected output (Cursor
Position 4) or - if a whole network or sub-network is selected - at the end of the
network or sub-network (Cursor Position 6 resp. 11).
For an inserted jump, a selection can be made accompanying the entered text "???",
and the jump can be replaced by the name of the label to which it is to be assigned.
In IL a jump is programmed via the JMP operator.

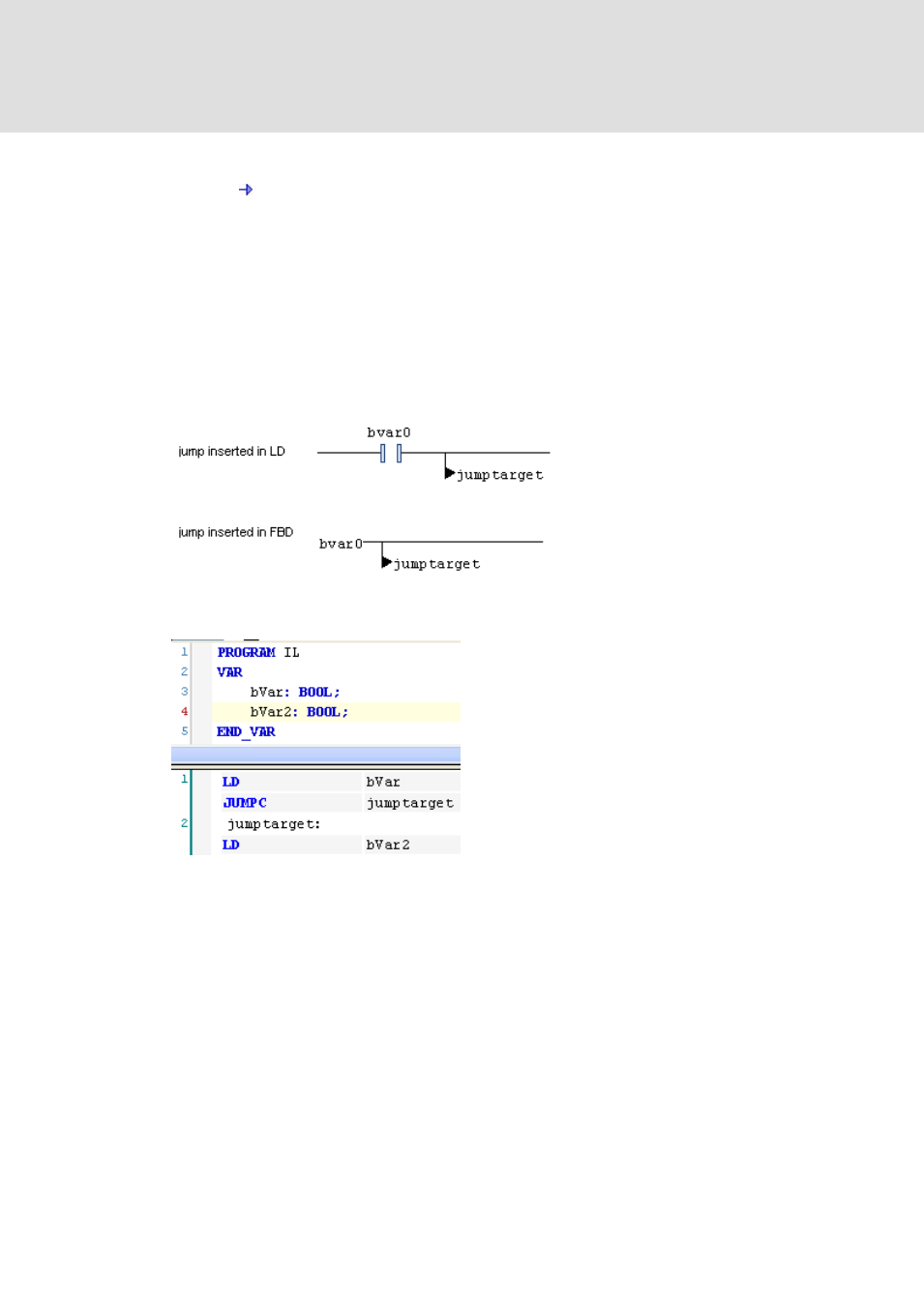

Example:
