Forcing/Writing of variables
In online mode you can prepare a value for forcing or writing a variable either in the
declaration editor or within the implementation part. In the implementation part at a
mouseclick on the variable the following dialog will open:

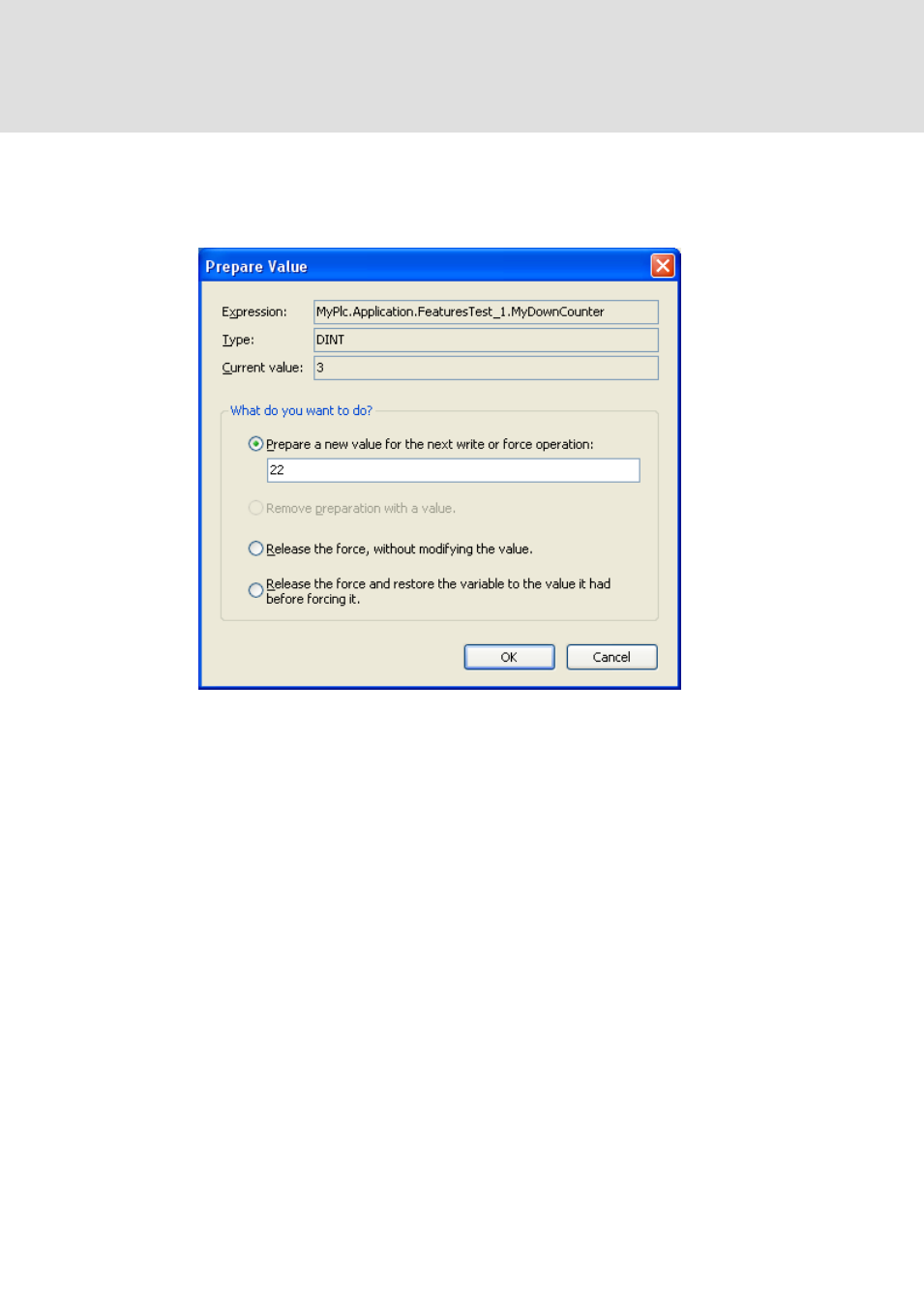

Abb. 388 Dialog - Prepare Value
You find the name of the variable completed by its path within the device tree
("Expression"), its type and current value. By activating the corresponding item you
may choose wether you want to
• prepare a new value which must be entered in the edit field thereby
• remove a prepared value
• release the variable actually forced
• release the variable actually forced and reset it to the value it was assigned to just
before forcing
The selected action will be carried out on executing the menu command Force Values
(per default in the Online menu) or pressing F7.
