13.13.9 SFC Editor in online mode
In online mode the SFC-Editor provides views for monitoring and for writing and
forcing the variables and expressions on the controller. Debugging functionality
(breakpoints, stepping etc.) is
not yet available. See below.
• Notice that the editor window of an SFC object also includes the Declaration Editor
in the upper part. In case of having declared implicit variables (SFC flags) via the
SFC Settings dialog, those will be added here, but will not be viewed in the offline
mode of the declaration editor.
• Also please notice the sequence of processing of the elements of a sequential
function chart.
• See the object properties resp. the SFC Editor options and SFC defaults for settings
concerning compilation resp. online display of the SFC elements and their
attributes.
• Consider the possible use of flags for watching and controlling the processing of an
SFC.
Monitoring
Active steps are displayed filled blue-colored. The display of step attributes depends on
the currently set SFC Editor options.

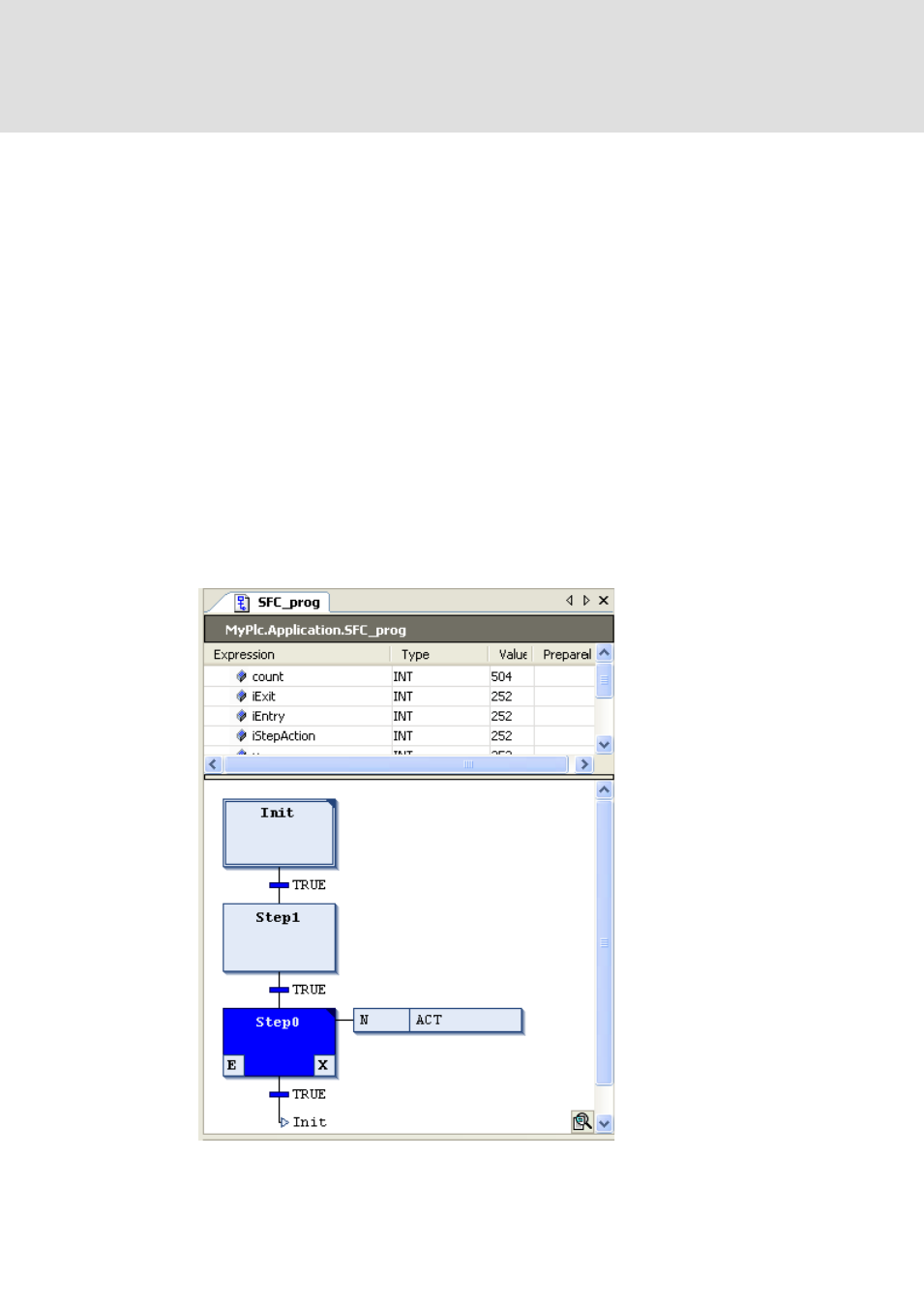

Abb. 415 Example: Online view of a program object SFC_prog
