To add any other files to the archive then the ones listed above, press the button
Additional files..., and the corresponding dialog box opens.

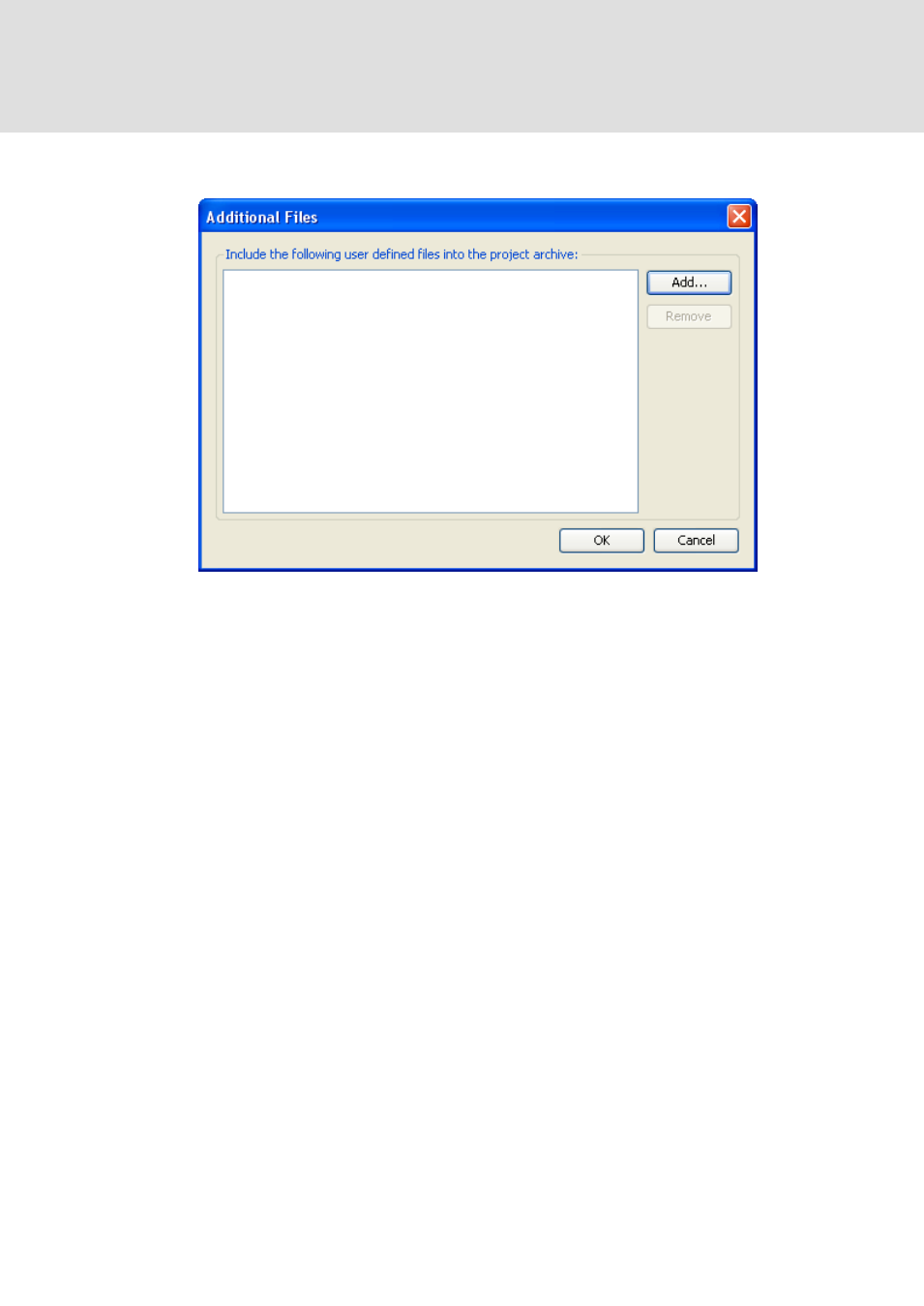

Abb. 141 Additional files dialog
Press the button Add to open the standard dialog, where you can browse for files
(sorted by file type) and open the ones you selected (by confirmation with Open). The
selected files will be added to the list of the Additional files... dialog. To remove a file
from this list, select it by a click and press the button Remove. After the list of selected
files fits to your demands, close the dialog with OK.
To add a note on the project press the button Comment.... You may enter your
comment in the rising text editor before closing it with OK. When your archived
project will be imported, your comment can be accessed in the corresponding dialog
via Show comment....
After carrying out the desired enlistment choose one of the following items of the
main dialog:
• Save... to create and store the archive file to a desired path that you select via the
opening standard dialog. Therein, you may also change the default name
.projectarchive of the archive file. Confirm with Save to start the
building process.
• Mail… to create a temporary archive file that will be attached to a simultaneously
generated empty email.
The successful operation of this feature relies on a correct installation of MAPI
(Messaging Application Programming Interface). If the operation has been
unsuccessfull, an error message will be displayed.
The temporary archive will be deleted automatically as soon as the message has
been sent.
• Cancel to cancel the action; no archive file is generated.
