L-force | PLC Designer
General Editors

DMS 4.1 EN 03/2011 TD29 731
When you click on a shadowed area, the element will get selected. It gets a dotted
frame and is displayed red-shaded :

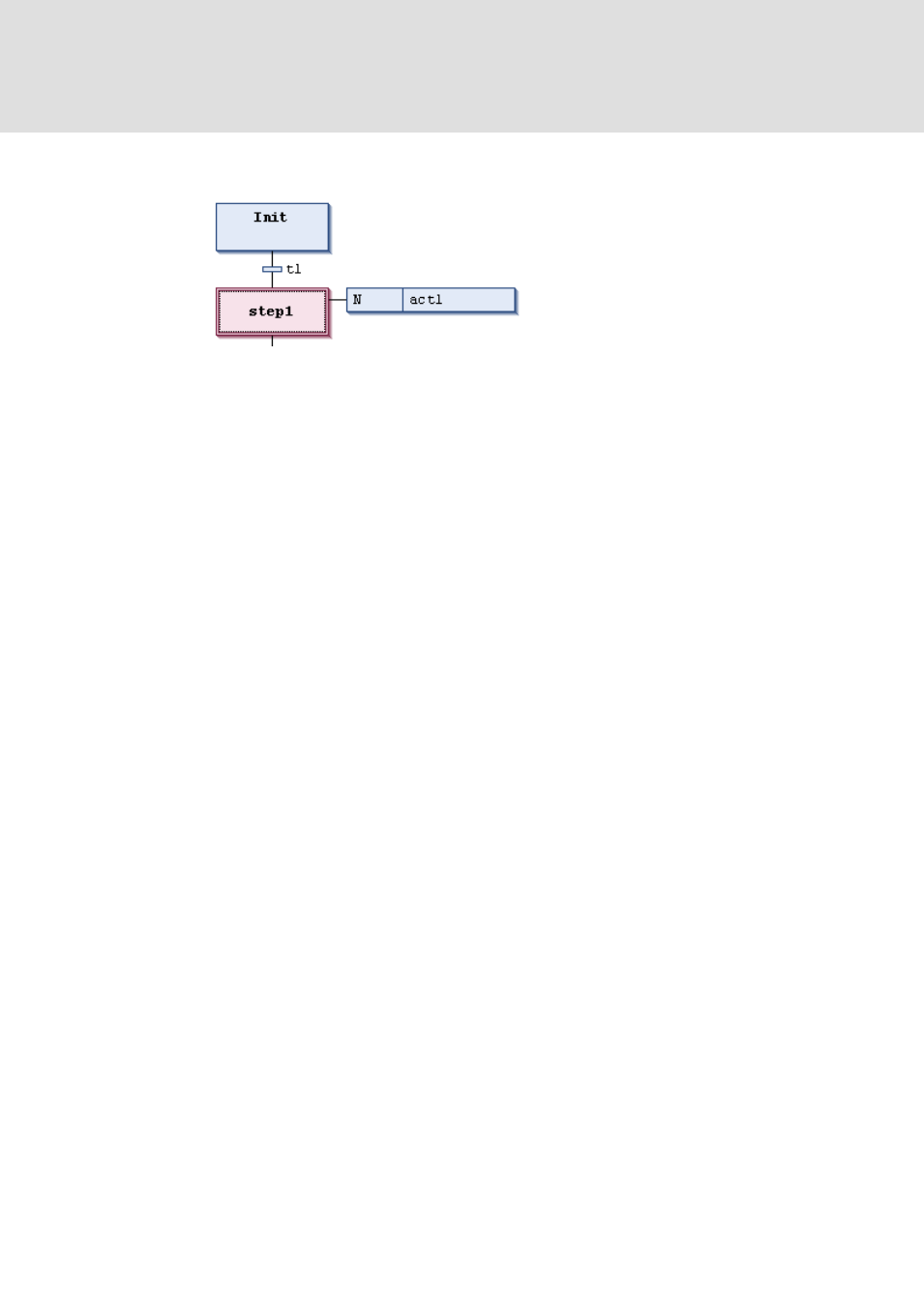

Abb. 404 Selected step element
13.13.3 Working in the SFC Editor
By default a new SFC POU contains an init step and a subsequent transition. For how to
add further elements, how to arrange and edit the elements see the following
information:
Navigating: Jumping to the next resp. previous element in the chart is possible by
using the arrow keys.
Insert elements
The particular SFC elements can be inserted via the respective commands which by
default are available in the "SFC" menu. . A double-click on an already inserted step,
transition or action element, which does not yet reference a project object, will open a
dialog for assigning one.
Select elements
An element resp. text field might be selected by a mouse-click on a possible cursor
position. The selection might also always be given to an adjacent element by using the
arrow keys. The element will change color to red.
In contrast to »PLC Designer« V2.3 steps and transitions can be selected and thus also
moved (cut, copy, paste) or deleted separately!
Multiple selection is possible by the following:
• Keep the -key pressed and subsequently click on the particular elements to
be selected.
• Press the left mouse-key and draw a rectangle (dotted line) around the elements to
be selected.
• Use command Select All, by default from the Edit menu.
Edit texts
By a mouse-click on a text-cursor-position at once the edit field opens, where you can
edit the text. If a text area has been selected via the arrow keys, the edit field must be
opened explicitly by using the -bar.
