Maple Systems MAPware-7000 - Manual (Page 95)

MAPware-7000 Programming Manual 95
1010-1040, Rev. 02

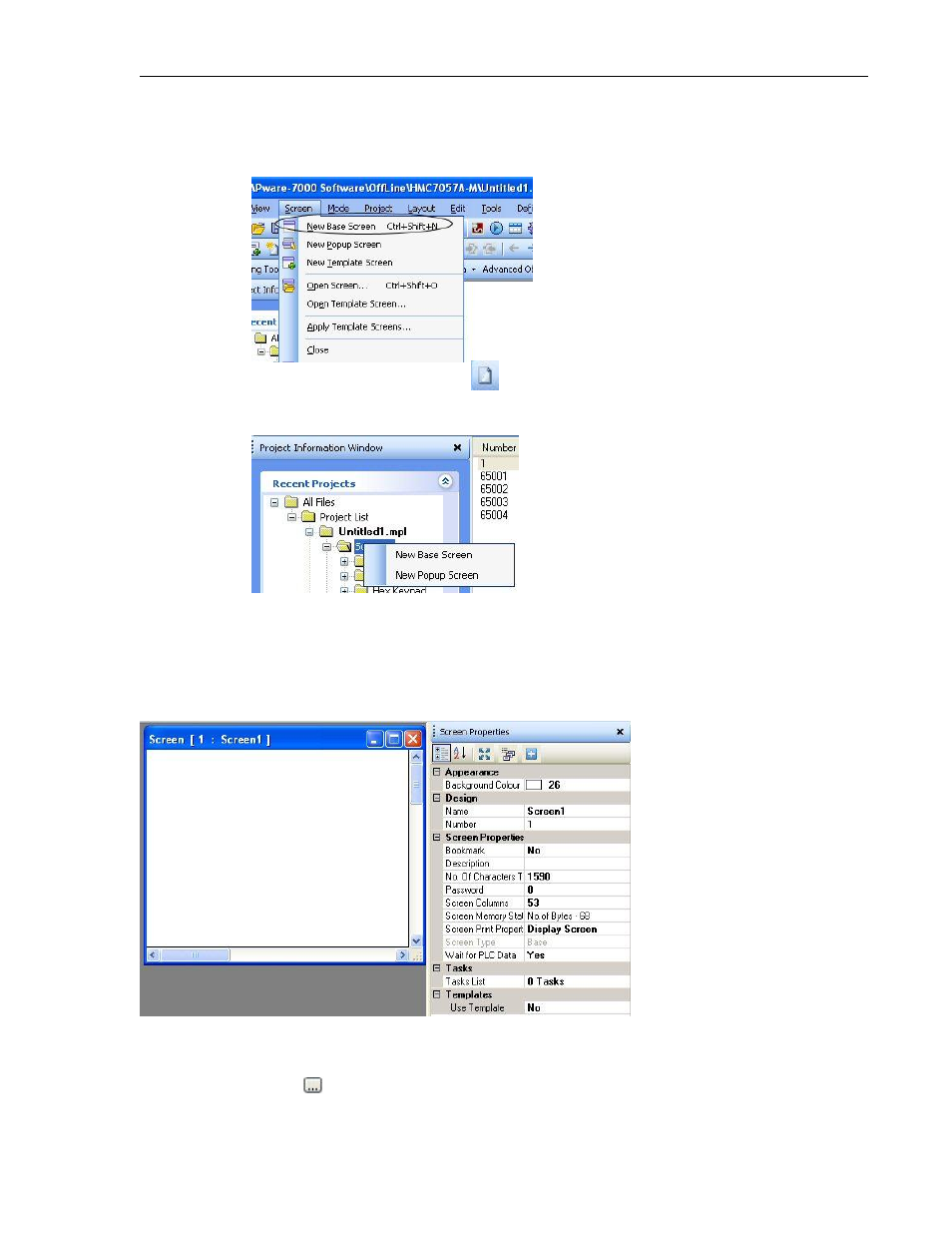

How to create a base screen
1. Use one of the following:
a. Click Screen…New Base Screen from the standard menu
b. Click the New Base Screen icon in the Layout Toolbar.
c. Right-click the Screens folder located in the Project Information Window. A
popup dialog box appears- click New Base Screen.
2. The new screen appears in the work area of MAPware-7000 and the Screen Properties
box displays.
Editing a base screen
Click anywhere on the screen (but not on any objects that have been placed onto the screen) to
display the Screen Properties box on the right side of the screen.
1. Appearance
a. Background Color - determines the fill or background color of the screen. Click
on the button to display the color palette and select a color.
2. Design
