MAPware-7000 Programming Manual 257
1010-1040, Rev. 02


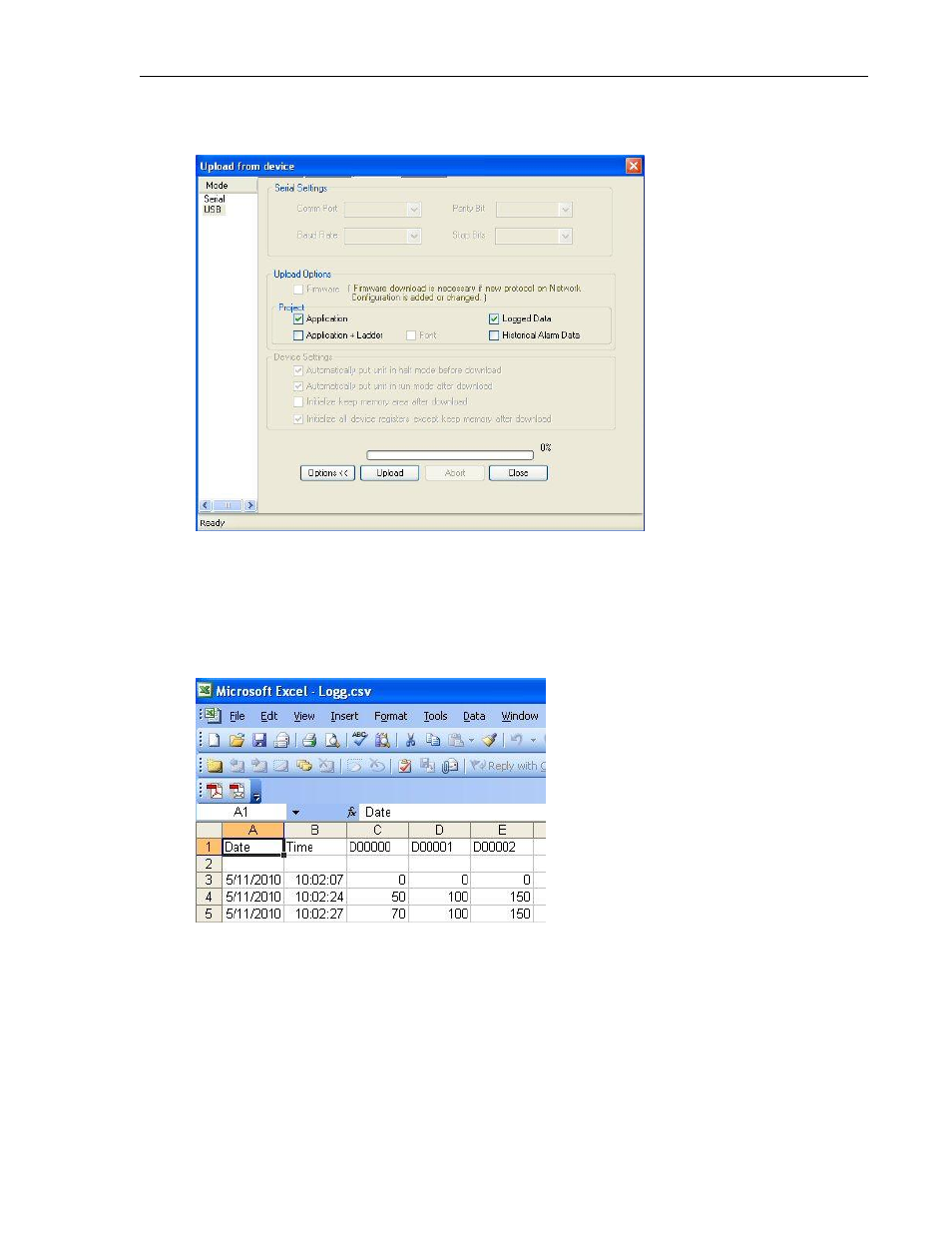

Click Project…Transfer…Upload from the standard menu. The ‘Upload From Device’
dialog box is displayed:

Click on ‘Logged Data’ in the Project section, and then click the Upload button.

Click OK to begin the upload process. Once completed, click the Close button. The
DataLog file is automatically stored onto your computer in the same directory that the
MAPware software is located (default is C:\Program Files\Maple
Systems\MAPware7000) as “Logg.csv”. To view this file, click on Tools…Display Logged
Data from the MAPware7000 standard menus. The file will display using Microsoft
Excel:
Other Data Logger tools
The MAPware-7000 configuration software provides some additional features for Data Logging
that make this feature easier to use.
