322 MAPware-7000 Programming Manual
1010-1040, Rev. 02
Options:


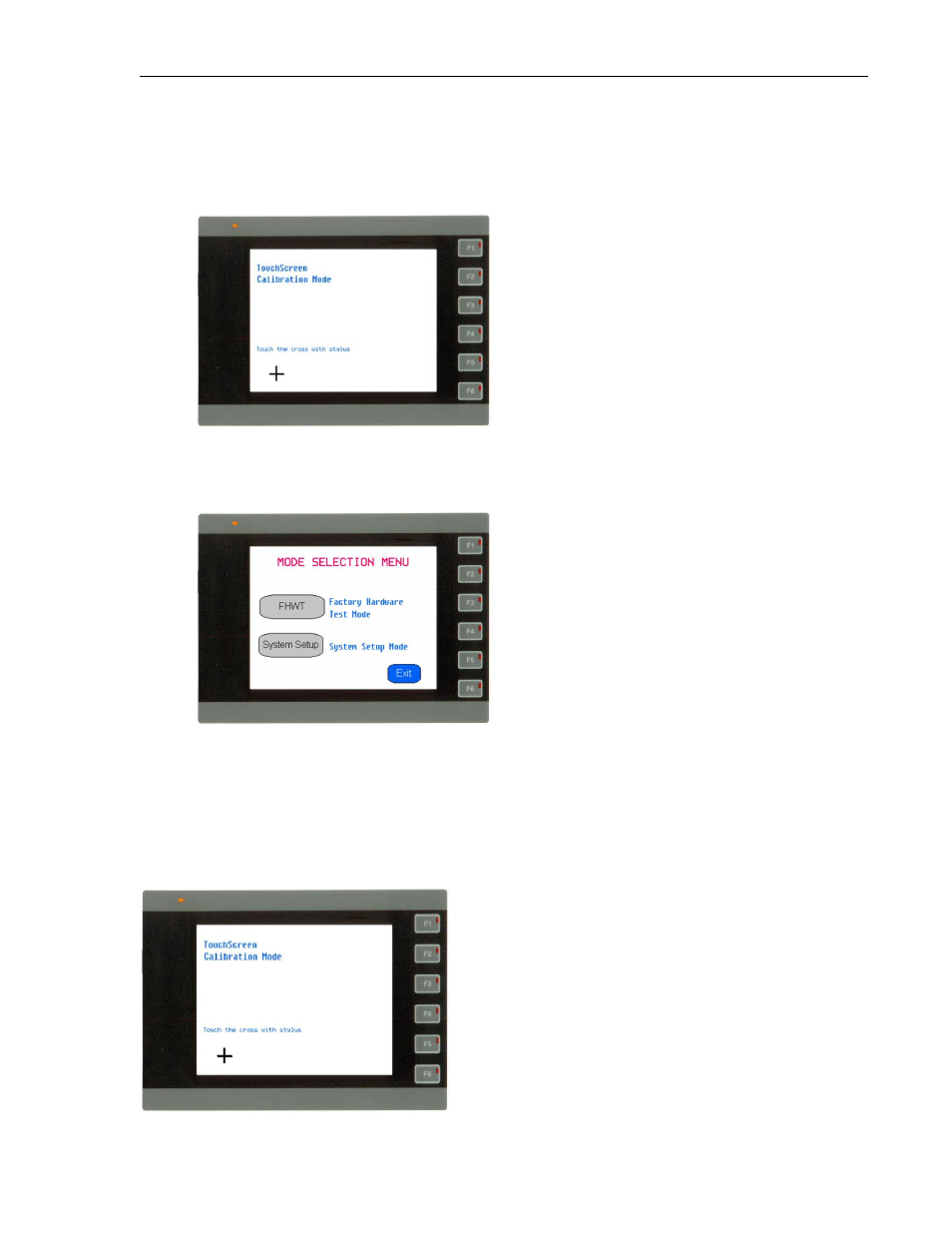

1. Remove stylus and press again… – lift your stylus (or finger) off the lower left corner
of the touchscreen, then touch and hold down the same area (lower left corner). You
should see the following screen appear:
Touch the crosshair symbol. The symbol will then move to the upper right corner; touch
it again. Unit will calibrate and reinitialize.

2. Remove stylus to enter…- lift your stylus (or finger) off the lower left corner of the
touchscreen, then wait for approximately five seconds. The following screen appears:
For more information about this screen, see Mode Selection Menu below.
Touchscreen Calibration Screen
This is entered by pressing any area of the touchscreen (other than the points mentioned above)
during power up:
