Resize an ellipse
Move the mouse pointer over one of the resize handles. When the pointer changes to a double-
headed arrow, simply click and drag to a new location.
Round Rectangle Object
Use to display a rounded (with beveled edges) rectangle or square on a screen of varying size
and color.
Place a rounded rectangle on screen
1. Use one of the following:
a. Click Draw…Graphical Objects…Rounded Rectangle from the standard menu
b. Click Drawing Tools…Rounded Rectangle from the Objects toolbar
2. Move cursor to a starting corner endpoint for the rounded rectangle. Click and hold
mouse cursor.
3. Drag mouse cursor diagonally to the opposite endpoint for the rounded rectangle and

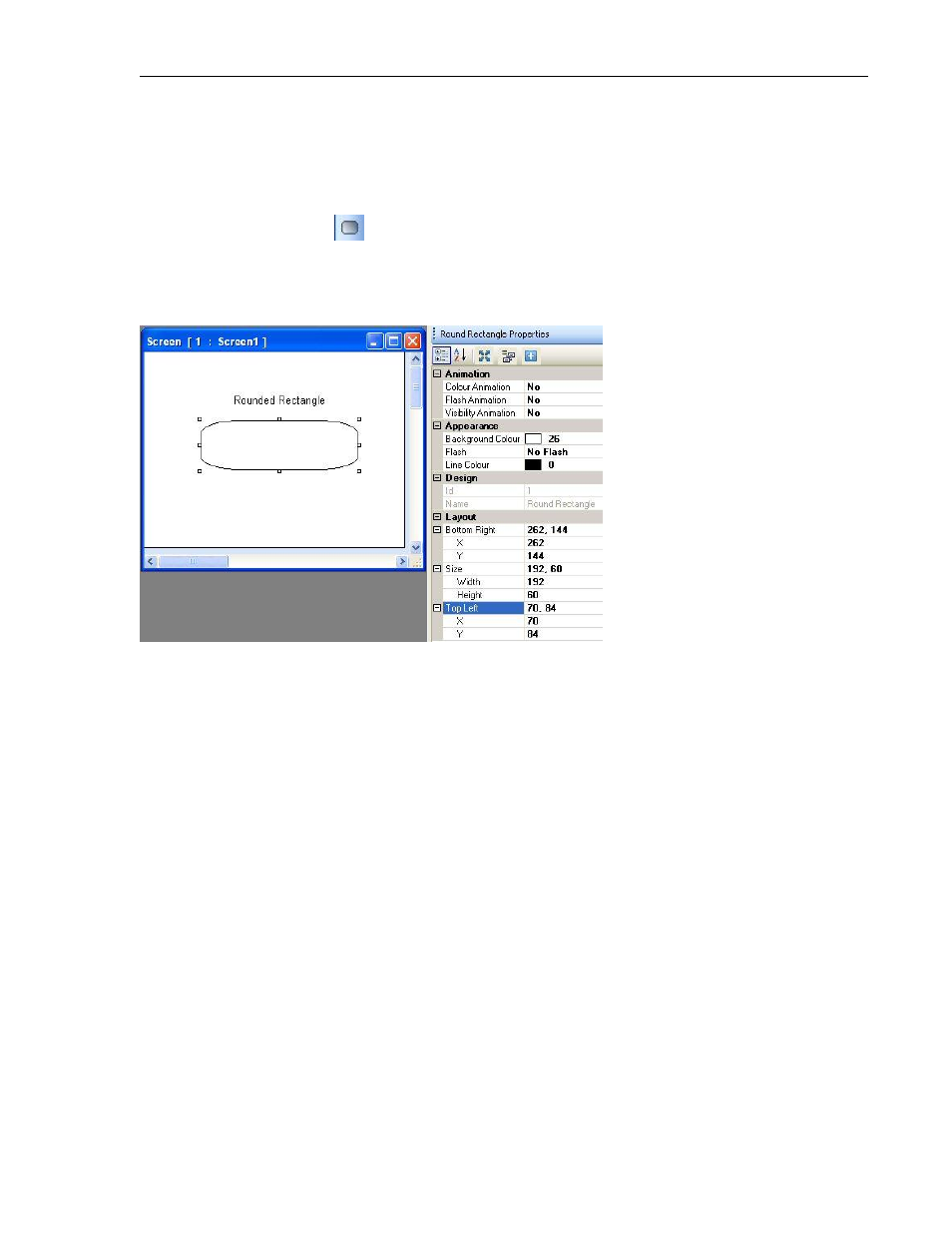

release. The rectangle appears on screen and the Round Rectangle Properties toolbox
displays.
Round Rectangle Properties Options

Color Animation (see Feature List A) - dynamically change the color of the object.

Flash Animation (List B) - dynamically ‘flash’ object.

Visibility Animation (List C) - make the object disappear or become ‘invisible’.

Background Color (List F) – option to select a color as a ‘backdrop’ to the object.

Flash (List D) – continuously ‘flashes’ the object.

Line Color (List E) – sets color of the perimeter line.

Design (List S) - identifies object.

Layout (List T) – coordinates (i.e. size and position) for the object.
