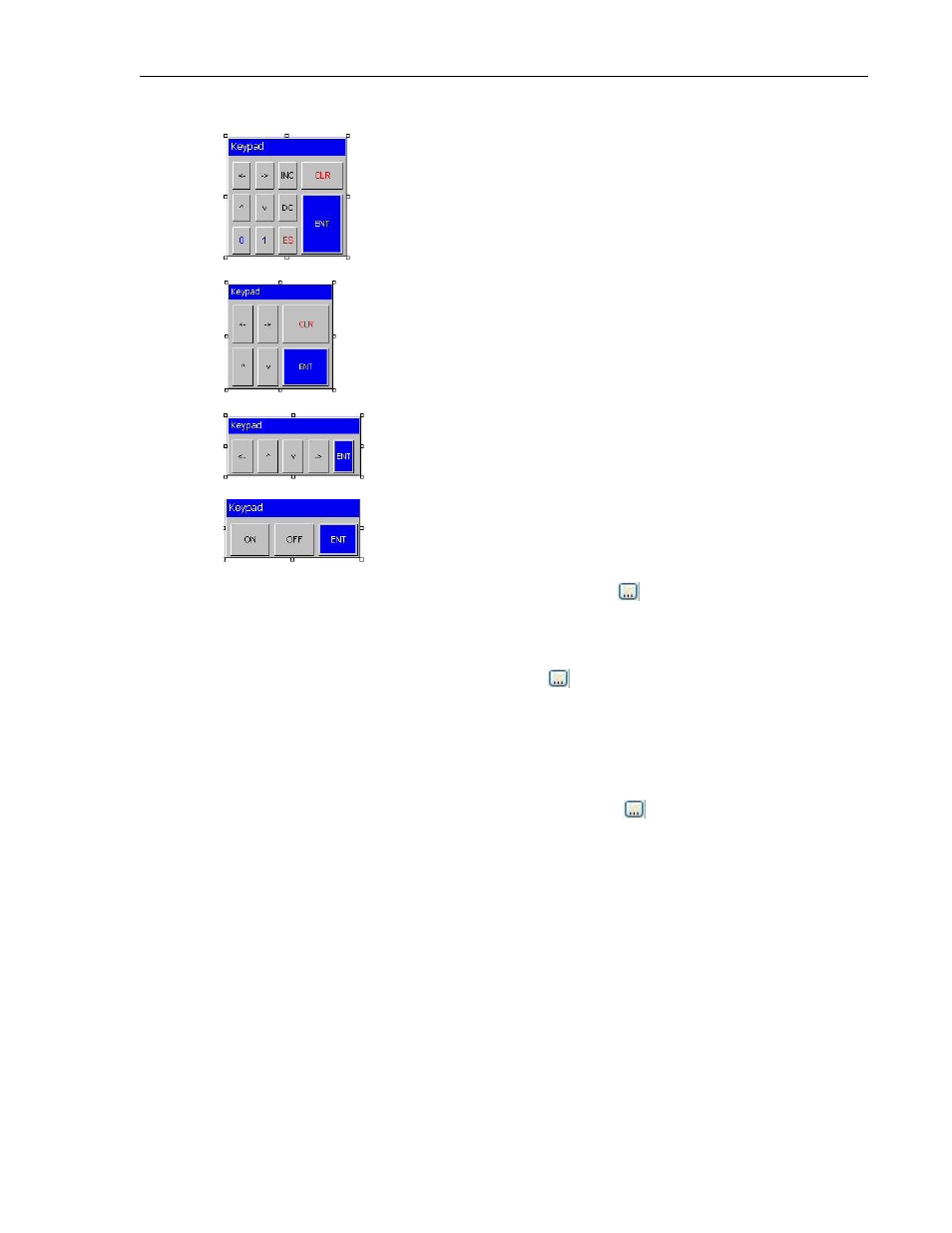

5. Increment/Decrement entry pad
6. Simple increment/decrement by digit entry pad with Clear key
7. Simple increment/decrement by digit entry pad
8. On/Off entry pad

Label (List H) – option to have a label appear on the top/bottom of the object

Label Background Color – select the background color. Click to display the color
palette.

Label Font (List I) – configure how you wish the label text to appear

Label Text – the text that appears in the label. Maximum of 21 characters allowed.

Label Text Color – select the label text color. Click to display the color palette.

Language (List J) – configure displayed text for up to 9 languages per object.

Show Value Display – this option is set to ‘No’ and cannot change.

Design (List S) – identifies object.

Layout (List T) – coordinates (i.e. size and position) for the object.

Keys Properties – select the ‘style’ and function of selected key.

Back Color – select the background color of the button. Click to display the color
palette.

Display Text – option to display text on the button.

Keypad Key Task – select from the pull-down list box which function (i.e. display a
number, control key, etc.) the selected button has:
o Numeric Key 0-9, A-F- used to enter decimal and/or hexadecimal numbers.
o Shift Value to Left- essentially this multiplies the value by 10 each time this key
is pressed.
o Move Cursor to Left, Move Cursor to Right keys – use these keys to move the
focus cursor to the left or right by one digit. This allows you to change each digit
of a number during entry without the need to clear the entry and start over.
o Increase Digit by 1, Decrease Digit by 1 keys – these keys will increment or
decrement the digit that is currently highlighted by the focus cursor. Note: if
digit 0 is displayed, pressing the Decrease by 1 key will change this digit to 9.
