MAPware-7000 Programming Manual 81
1010-1040, Rev. 02


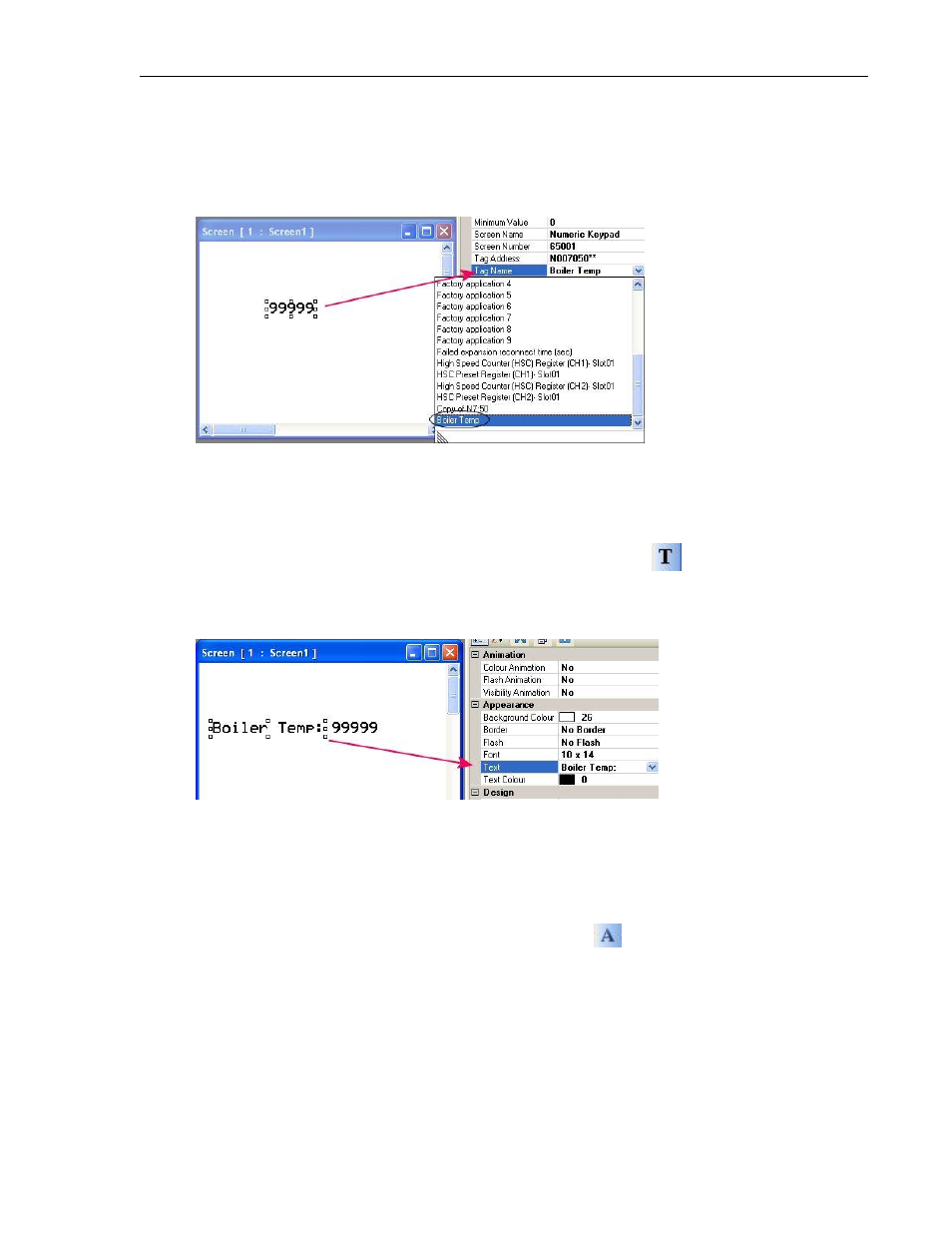

Click on the Numeric Entry object once again to highlight it, and then click on the Tag
Name entry field in the Register Data Entry Properties box. Click on the pull-down box
and scroll down the listing until you find the tag we just created, “Boiler Temp”. Notice
that the Tag Address entry above correctly identifies the target address as ‘N007050’.
Now, we want to identify the Numeric Entry object with some text.

On the Quick Entry toolbar (this is the vertical toolbar located between the Project
Information Window and the screen work area), click on the Text icon.

Move the mouse cursor to a location next to the Numeric Entry object and click to place.
This is too small as well, so in the Text Object Properties box, click on the Font pull-down
tab and select 10x14 pixels. In the Text field, enter ‘Boiler Temp:’.

Now click on the Text box and drag it so that it is in an appropriate position.
We are going to create two screens in this sample project so we need to add a screen label to
this screen. This time, instead of using the simple Text object, we will use the Multilingual Text
object to take advantage of Windows fonts.

On the Quick Entry toolbar, click on the Multilingual Text icon.

Move the mouse cursor to the top of the screen and click to place.
