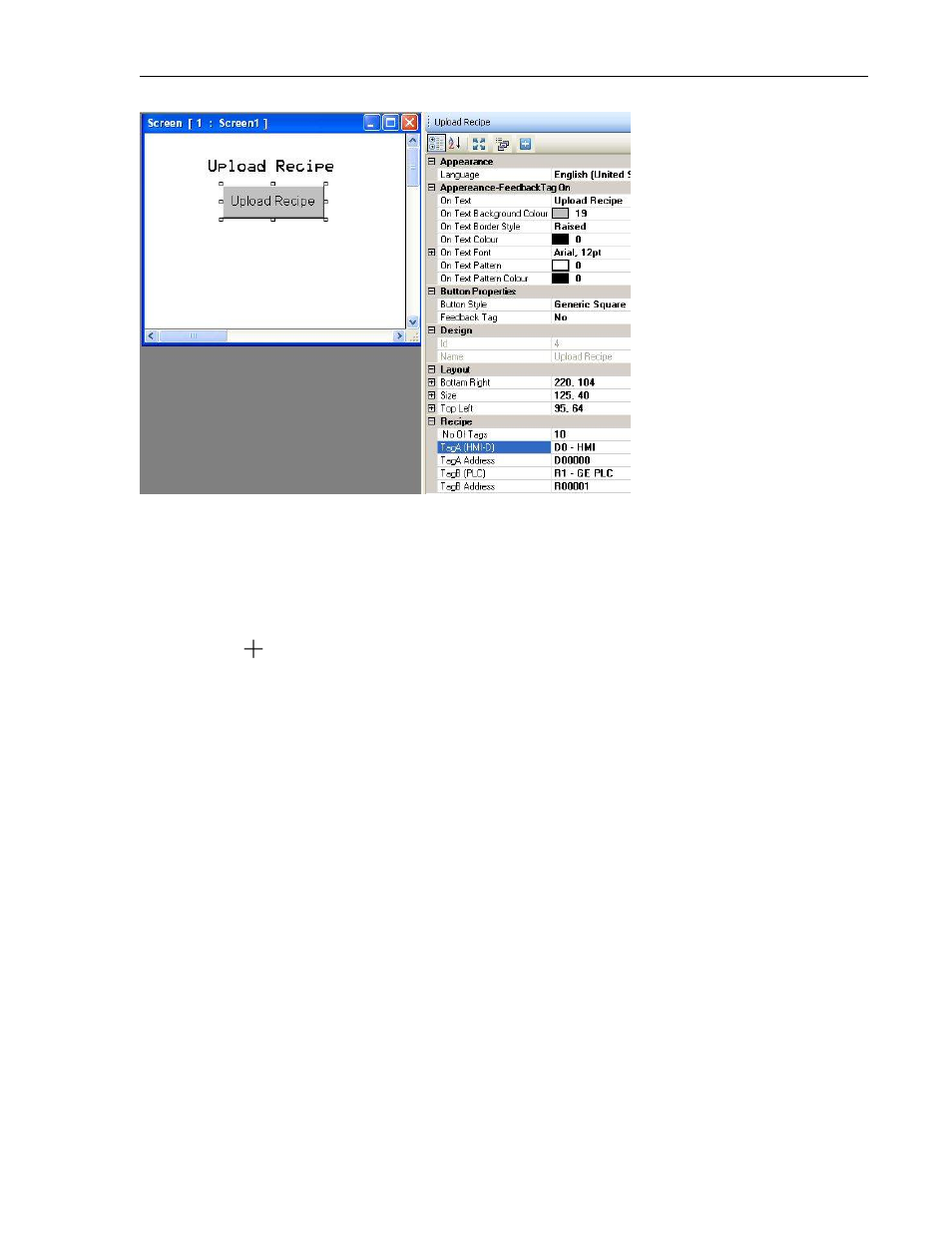

Place an Upload Recipe button object on screen
1. Use one of the following:
a. Click Draw…Buttons…Recipe… Upload Recipe from the standard menu
b. Click Advanced Objects…Buttons…Recipe… Upload Recipe from the Draw
toolbar
2. Move cursor to a start point for the button object. Click and hold mouse cursor.
3. Drag mouse cursor to an end point for the button object and release. The button
appears on screen and the Upload Recipe Properties box displays.
Upload Recipe Properties Options

Language (List J) - highlight the language that must be selected to display the entered
text.

Appearance Feedback Tag On/Off (List L) – select the On and/or Off labels.

Button Style (List M) – select a style or ‘look’ to the button.

Feedback Tag (List N)– Enable this feature and select the same tag for both the target
address and the feedback tag address, if you wish to see the button change state (i.e. go
from an ‘off’ or untouched look to an ‘on’ or touched look).

Simulation (List Nc) – select ‘On/Off’ to see how button looks in that state (only
available if Feedback Tag is set to ‘Yes’).

Design (List S) – identifies object.

Layout (List T) – coordinates (i.e. size and position) for the object.

Recipe – Address of source and target registers to use.

No of Tags – enter the number of preset constant values (registers) that are uploaded
from the source address to the target address. Range is 1 to 100.

Tag A (HMC-D) – name assigned in the tag database to the target register. This is the
address of the target register(s) in the HMC that the recipe preset values are uploaded
