146 MAPware-7000 Programming Manual
1010-1040, Rev. 02
Resize a Reset Bit button object
Move the mouse pointer over one of the resize handles. When the pointer changes to a double-
headed arrow, simply click and drag to a new location.
Toggle Bit
The Toggle Bit button alternates setting and clearing a targeted coil each time the button is
pressed. When pressed by the operator, the HMC reads the current value of the coil, and then
sends a command to set or reset the coil depending upon the value read. The button shows text
labels or a graphic image that is used to represent two states. When a toggle bit button is on
screen, the HMC continuously polls the target bit register to determine which state to display
(feedback tag must be enabled to display two states).

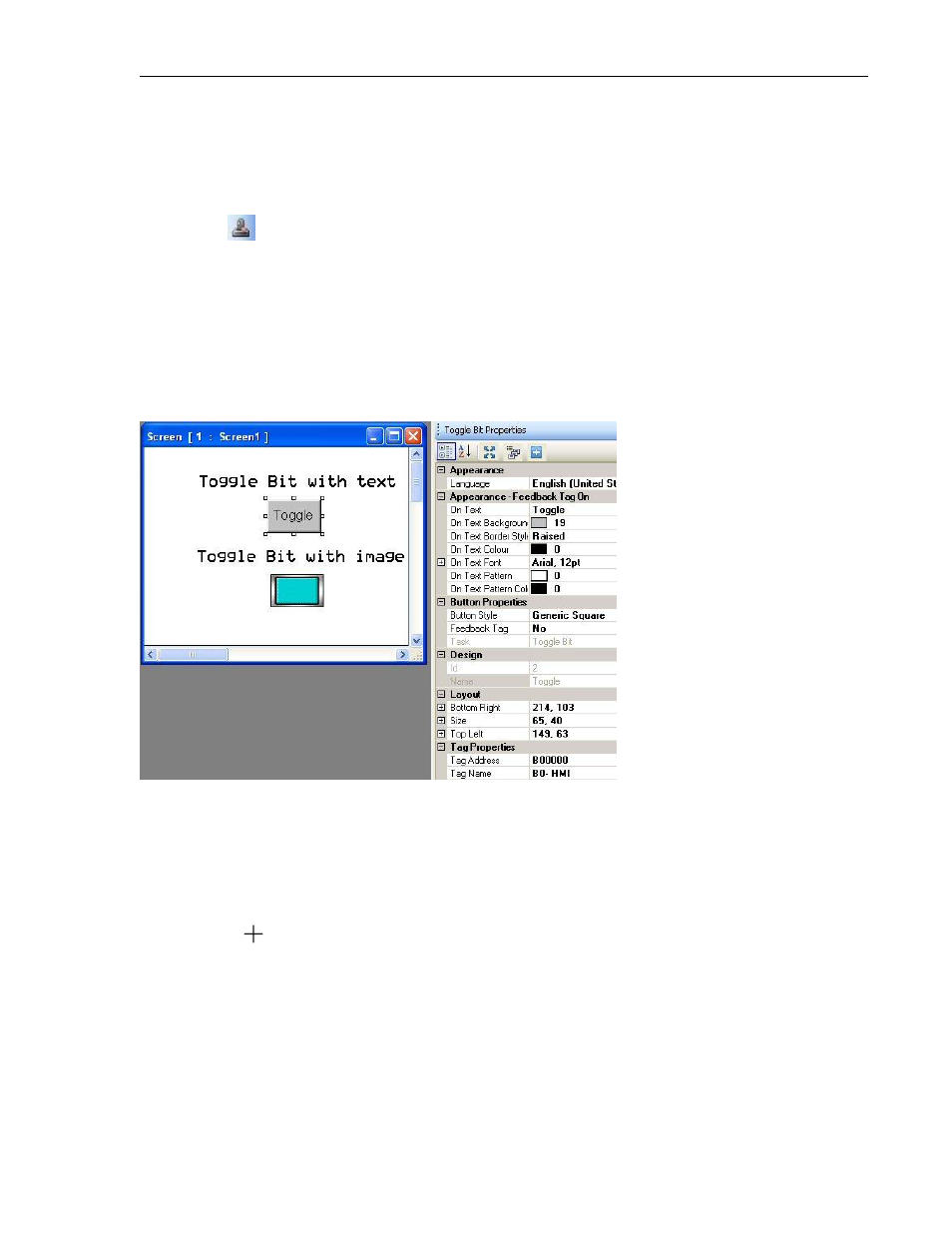

Place a Toggle Bit button object on screen
1. Use one of the following:
a. click Draw…Buttons…Bit Action…Toggle Bit from the standard menu
b. click Quick Buttons…Toggle Bit from the Draw toolbar
c. click on the Toggle Bit icon in the Objects toolbar
2. Move cursor to a start point for the button object. Click and hold mouse cursor.
3. Drag mouse cursor to an end point for the button object and release. The button
appears on screen and the Toggle Bit Properties box displays.
Toggle Bit Properties Options

Language (List J) - highlight the language that must be selected to display the entered
text

Appearance Feedback Tag On/Off (List L) – select the On and/or Off labels
