Next, we want to use the HMC’s internal memory to create an ‘always on’ bit.

Under Tag Name, enter a name that you want to use for the coil (ex: ON BIT).

In the Register/Coil Type field, use the pull-down menu to select Internal Coils.

Under Tag Type, make sure you check the Coil or Bit Addressed Register radio button.

In the Coil section, enter ‘2’.

Click the Add button to add this tag to the database.

Finally, we want to use the HMC’s internal memory to create a register that we are
going to use to copy the contents of the Allen Bradley tag register.

Under Tag Name, enter a name that you want to use for the register (ex: Copy of
N7:50).

In the Register/Coil Type field, use the pull-down menu to select Data Registers.

Under Tag Type, make sure you check the Register radio button.

In the Register section, enter ‘50’.

Click the Add button to add this tag to the database.


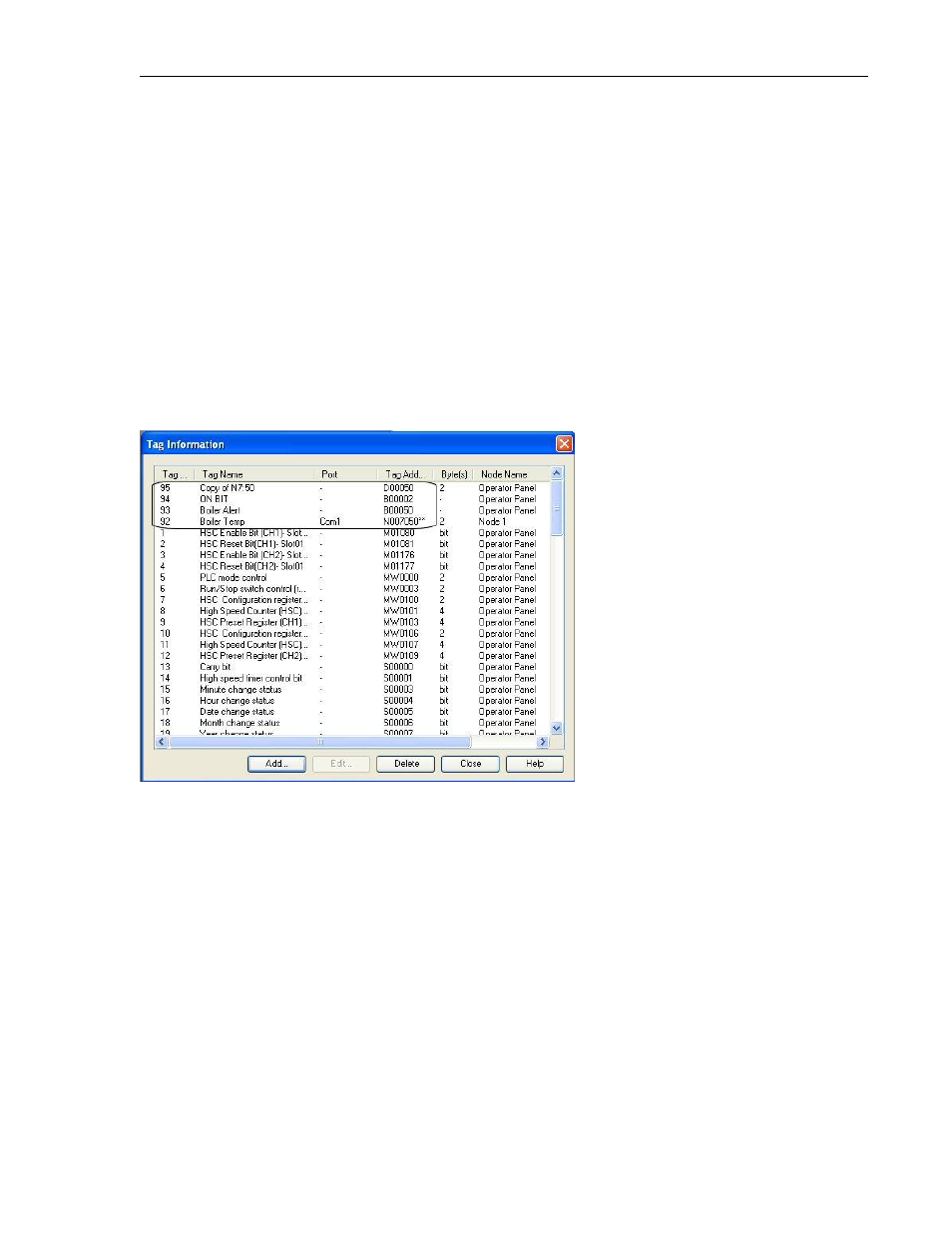

Click the ‘Close’ button to exit the Tag Database and go back to the main work screen
area.
