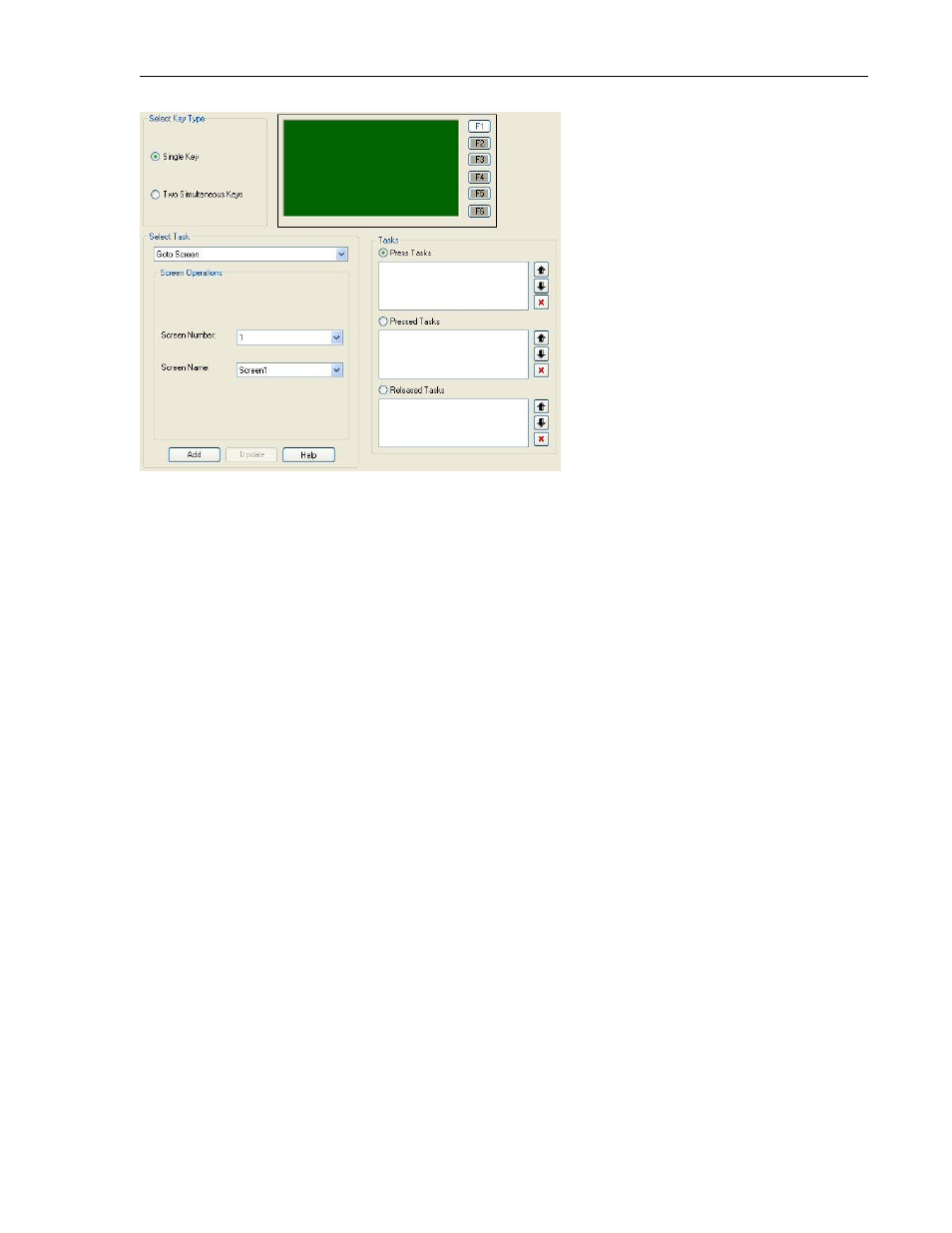

First, click on the Fn key that you wish to configure. This key will be highlighted as the
F1 key in the picture above.

Under Select Key Type: choose the Single Key option or Two Simultaneous Keys.
o Two Simultaneous Keys- this option allows you to select two keys (by
highlighting two of the Fn keys) which during operation, must both be pressed
to perform the assigned tasks.
o Single Key- this option configures only one key to perform the assigned task

Tasks: Before you select which task you want (see Select Task below), you must decide
what key action activates the task. There are three options:
o Press Tasks- the task(s) are activated upon pressing the selected function key.
o Pressed Tasks- the task(s) are activated upon pressing and holding down the
selected function key. With this option, the HMC7000 will repeatedly send the
command until the key is released.
o Released Tasks- the task(s) are activated when the function key is released
Click the radio button of the key action you prefer.

Select Task: click on the scroll-down menu to select one of the tasks available (see
Chapter 6 – Task Management for more information on what each task does). If
additional parameters are required for the selected task, they will appear in the area
below (as shown for Screen Number and Screen Name for the GoTo Screen task above).
Enter the required additional parameters. Now click the Add button. The task is
entered into the selected key action.
