326 MAPware-7000 Programming Manual
1010-1040, Rev. 02

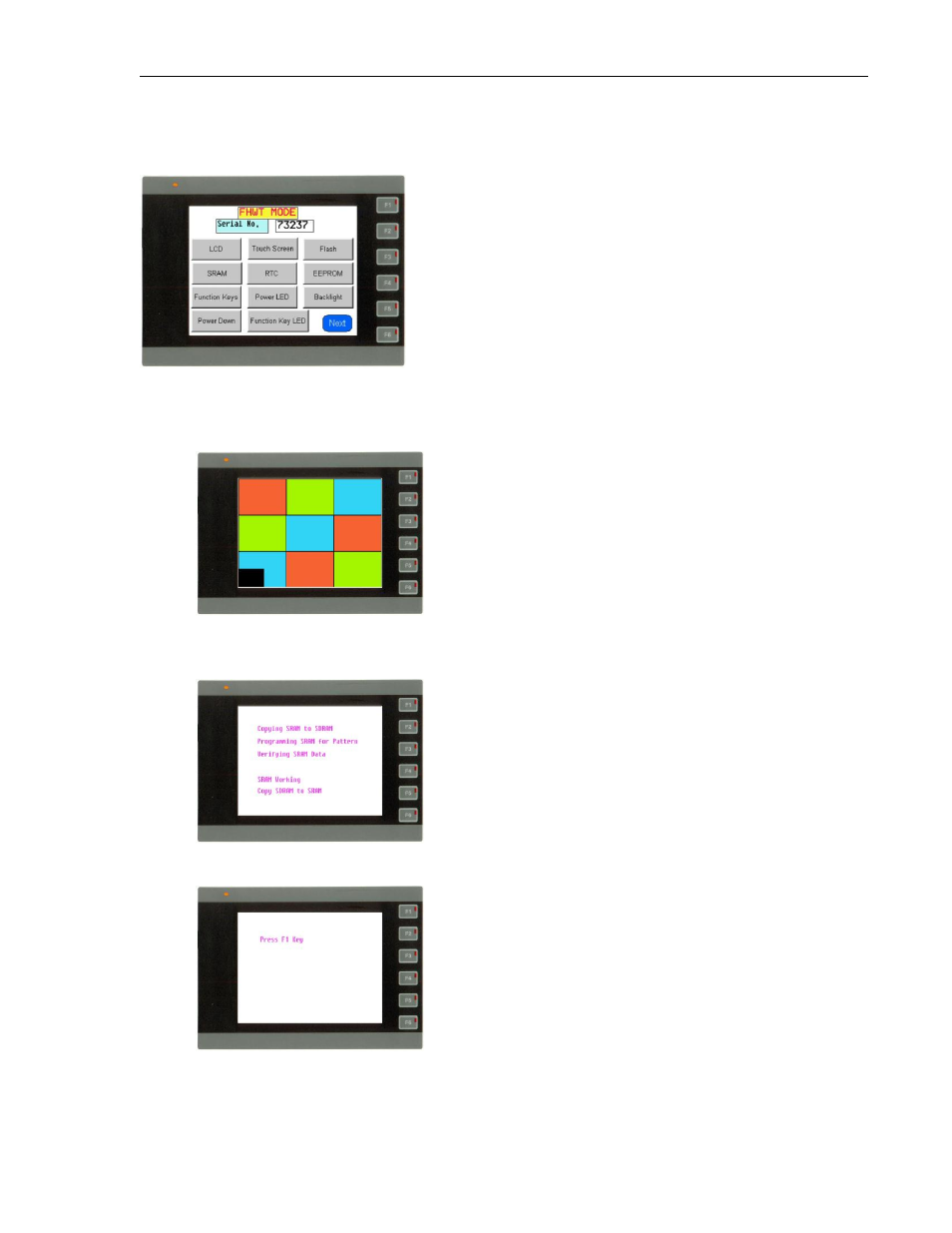

Press the FHWT button on the MODE SELECTION MENU to enter the Factory Hardware Test
Mode (FHWT) main screen:

Serial No.- this is the serial number assigned to the HMC

LCD button – executes the LCD display color test. When pressed, the following screen is
displayed:
Verify that the proper colors are displayed and there are no missing pixels. Press the
black square in the lower left corner to return to the FHWT menu.

SRAM button – executes a non-destructive SRAM memory test when pressed:
The HMC automatically returns to the FHWT menu after the test.

Function Keys button – executes a function key test:
Press the F1 key. If this key is operative, then you will see ‘Press F2 Key’ on screen.
Continue in this fashion until all keys have been tested.
