284 MAPware-7000 Programming Manual
1010-1040, Rev. 02

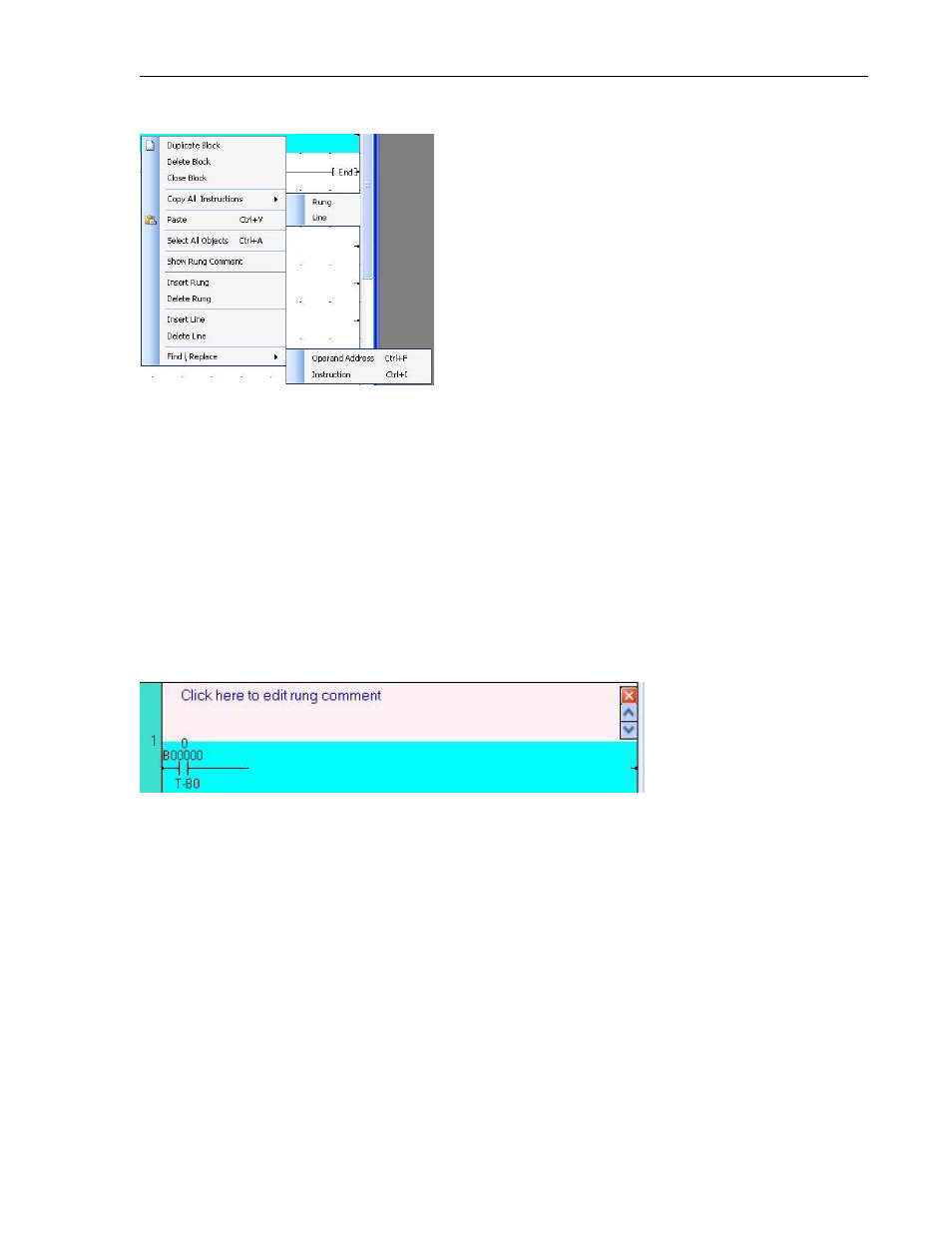

Right click on one of the rungs to display a popup dialog box:
Use this handy box to:

Duplicate, Delete, or Close Blocks

Copy all Instructions within a rung or line

Select All Objects

Insert and delete rungs and lines

Find/Replace instructions or specific Operand Addresses
Using Rung Comments
The dialog box in the last section can also be used to activate the rung comments.
These are small sections allocated for each rung into which can be placed notes:
Logic Block Types
HMC7000 supports six different types of logic blocks:

Power up

Main program

Subroutine

Timer Interrupt

I/O Interrupt #1 (HMC7030A-L only)

I/O Interrupt #2 (HMC7030A-L only)
Although each logic block is basically the same, each type is targeted for special purposes.
