150 MAPware-7000 Programming Manual
1010-1040, Rev. 02

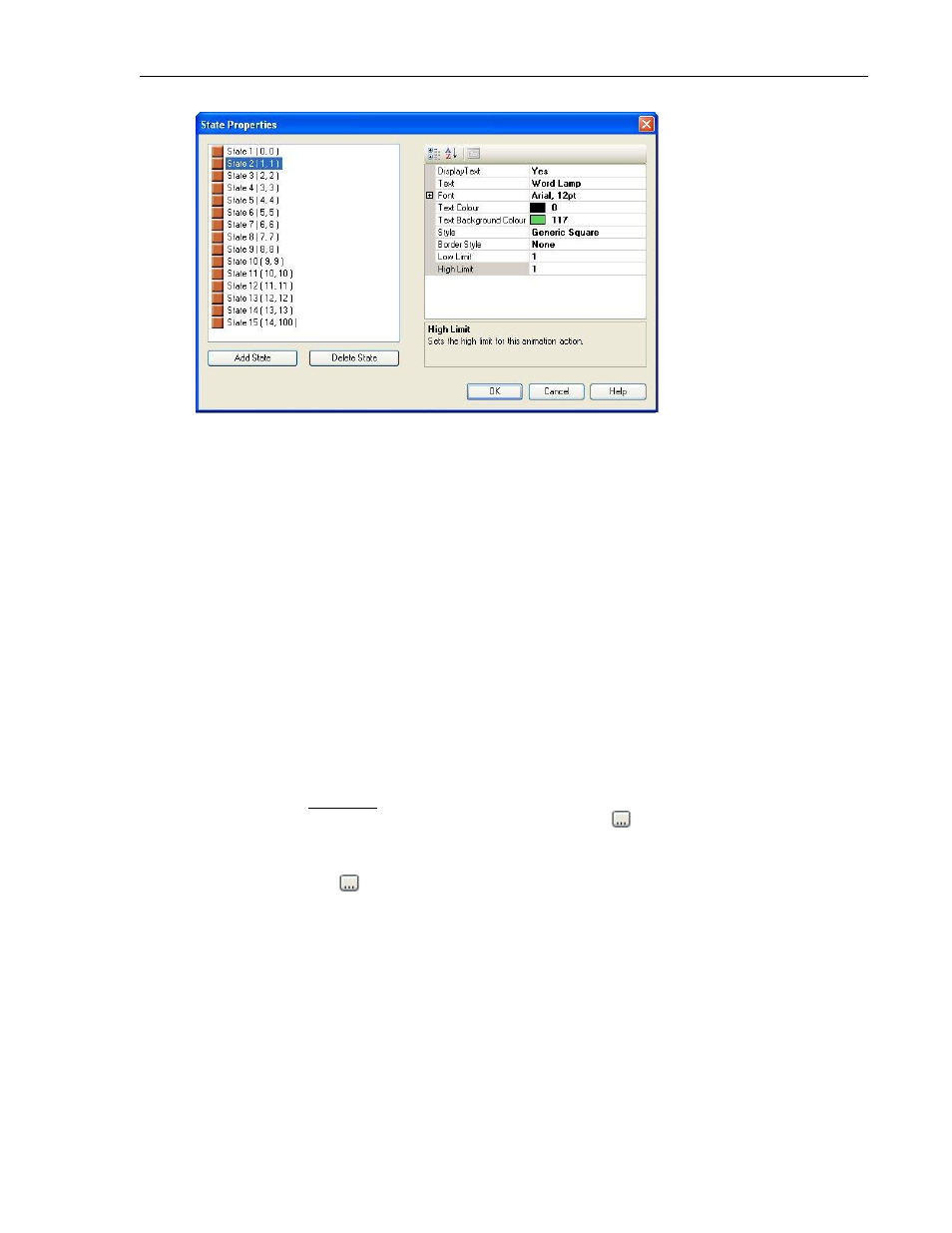

The left side of the State Properties box shows all of the States currently configured.
There are a maximum of 32 states per Word Lamp.
o Add State – click on this button to add a new state (always appended to the
bottom of the list).
o Delete State – click on one of the States in the list box to highlight and then click
this button to delete it. Note: when deleting a state that is in-sequence, all
states, listed after the selected state, are renumbered.
The right side of the State Properties box shows the configuration for the highlighted
state:
o Display Text – option to display what is written in the Text field on the button
for that state.
o Text – label applied to that particular state. Default text is ‘Word Button’.
o Font – the text attributes
 Name- Type font used
 Size- select font size
 Bold- select ‘True’ to enable
 Italic- select ‘True’ to enable
 Underline- select ‘True’ to enable
o Text Color – determines the text color. Click on the button to display the
color palette and select a color.
o Text Background Color – determines the fill or background color of the state.
Click on the button to display the color palette and select a color.
o Style – options are Generic Square, Circle, Rounded Rectangle, User defined
Images, or From Picture Library.
o Border Style – the style or appearance of the button. Options are Raised,
Etched, Bump, Sunken, Frame, Flat and None.
o Low Limit – enter the minimum value associated with this particular state. Any
value read from the target PLC address that is within the Low Limit and High
Limit will display this state.
o High Limit – enter the maximum value associated with this particular state.

Tag Address (List Qa) – this is the address of the target bit/coil that is monitored.

Tag Name (List Qb) – name assigned in the tag database to the target bit/coil.
