Place a time object on screen
1. Use one of the following:
a. Click Draw…Display Objects… Time from the standard menu
b. Click Clock Objects… Time from the Objects toolbar
2. Move precision cursor to the desired location for the Time and click to place.

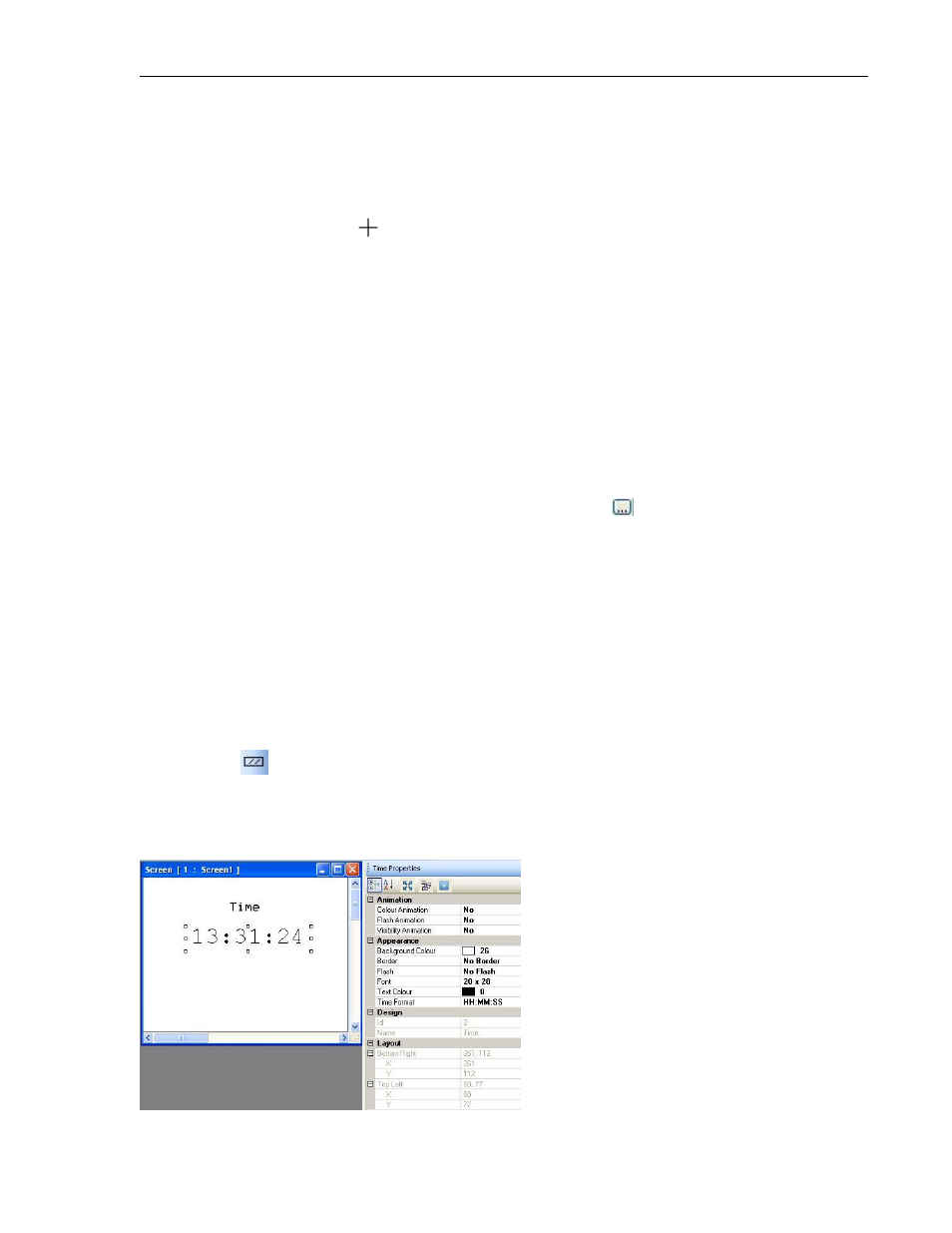

3. The Time object (with current computer time) appears on screen and the Time
Properties toolbox displays.
Time Object Properties Options

Color Animation (see Feature List A) - dynamically change the color of the object.

Flash Animation (List B) - dynamically ‘flash’ object.

Visibility Animation (List C) - make the object disappear or become ‘invisible’.

Background Color (List F) – option to select a color as a ‘backdrop’ to the object.

Border (List G) - add a line around the perimeter of the object.

Flash (List D) – continuously ‘flashes’ the object.

Font (List I) – select from one of four options- 5x7, 7x14, 10x14, and 20x28 pixels.

Text Color (List Kb) - Determines the color of the text. Click to display the color
palette.

Time Format: options are HH:MM:SS (hours, minutes, seconds) or HH:MM (hours,
minutes)

Design (List S) - identifies object.

Layout (List T) – coordinates (i.e. size and position) for the object.
Resize a time object
Time objects are not resizable- the size is fixed by the number of characters and font size. To
move the time object, simply click and drag using the mouse to the target location on screen.
Date Object
Use to display date (all HMCs have a built-in real time clock RTC) on a screen using one of four
font sizes and selectable color.
