76 MAPware-7000 Programming Manual
1010-1040, Rev. 02

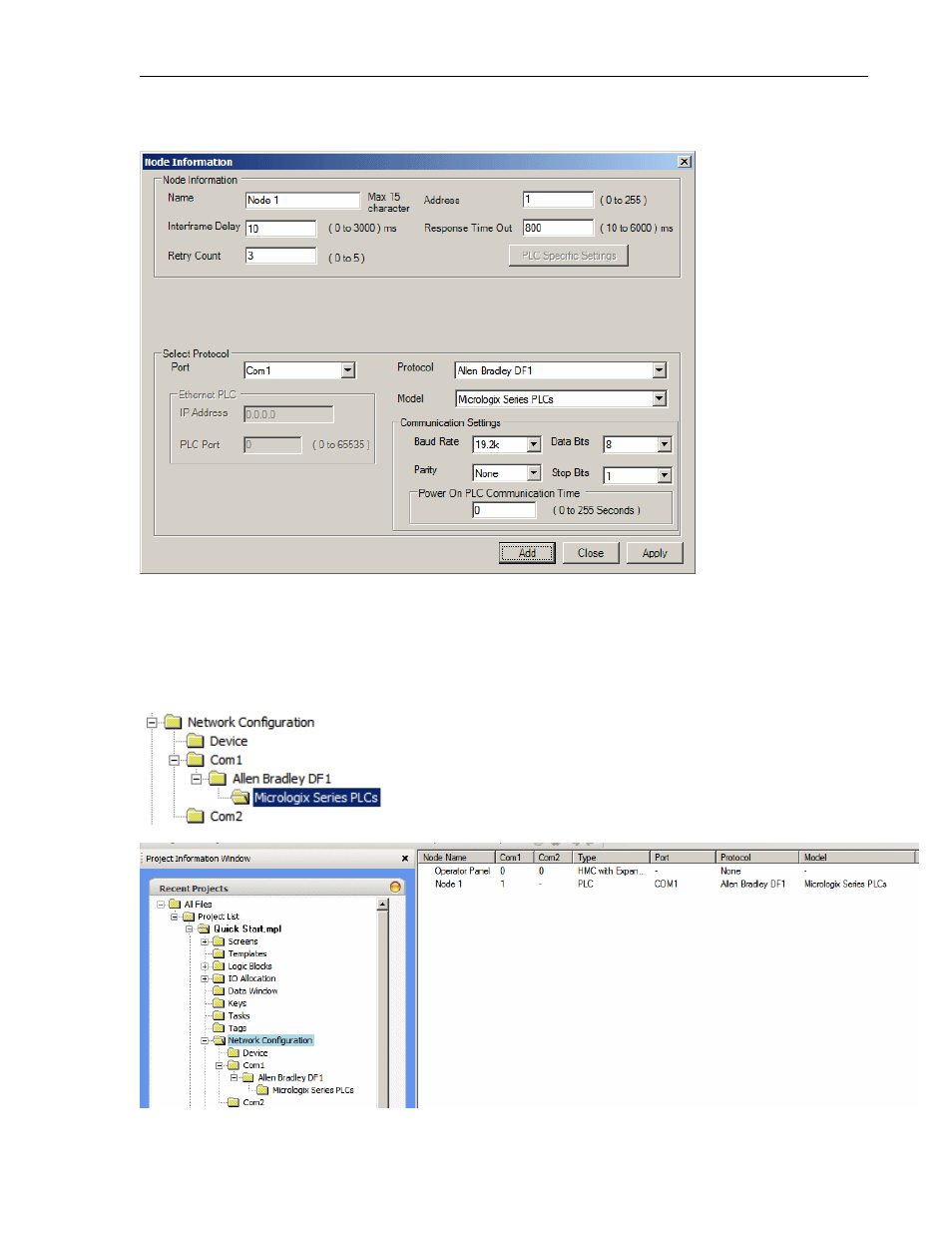

The following dialog is displayed.
Note that the port is preset to COM1. Enter the protocol data for the desired PLC. Since the
HMC7057 does not support Ethernet, those options are disabled. The Node Information data at
the top of the dialog is how this protocol will be displayed in the project tree.
Click Add, then Close, to continue, and the protocol is added to the project tree:
