 Method 2: Configure the USB Data Log Upload task to download a
particular data group (1-4) to the USB Flash Drive.

The USB Data Log Upload task can be initiated in several ways:
o Using a global or screen-dependent function key with
the Press Task or Released Task.
o Using a Multi-State Single/Multiple Task touchscreen
button with the Press Task or Released Task.
o Use the Power-On or Global Task option.
o Use any of the screen-dependent tasks.
o Use the USB Data Log Upload instruction (see Functions
when Logic Block selected)

When the USB Data Log Upload task is selected using a Function

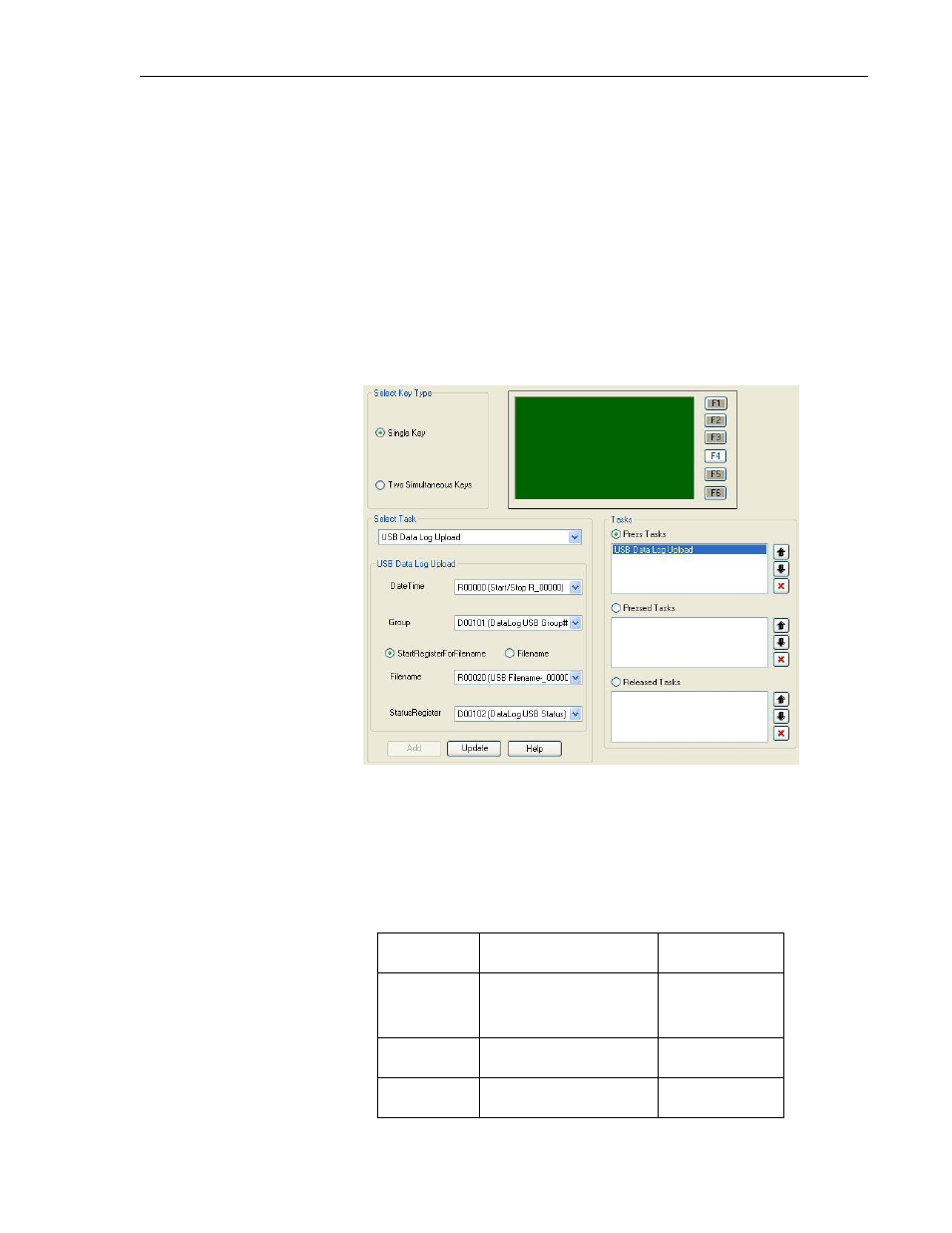

key, the following screen appears:
Before you Add the selected task to the Press Task field, you
must select several registers that are used by the HMC7000
during upload. All referenced tags must be internal memory of
the HMC and must be 16-bit registers.

DateTime: this is the Start/End Date/Time tag registers that
determine what portion of the DataLog file is uploaded to the
USB Flash Drive. The HMC7000 will read twelve consecutive
registers beginning with the tag address referenced.
Register Description Value Range
Referenced
Tag+0 Start Date: Day 1-31
+1 Start Date: Month 1-12
+2 Start Date: Year 0-99
