MAPware-7000 Programming Manual 327
1010-1040, Rev. 02


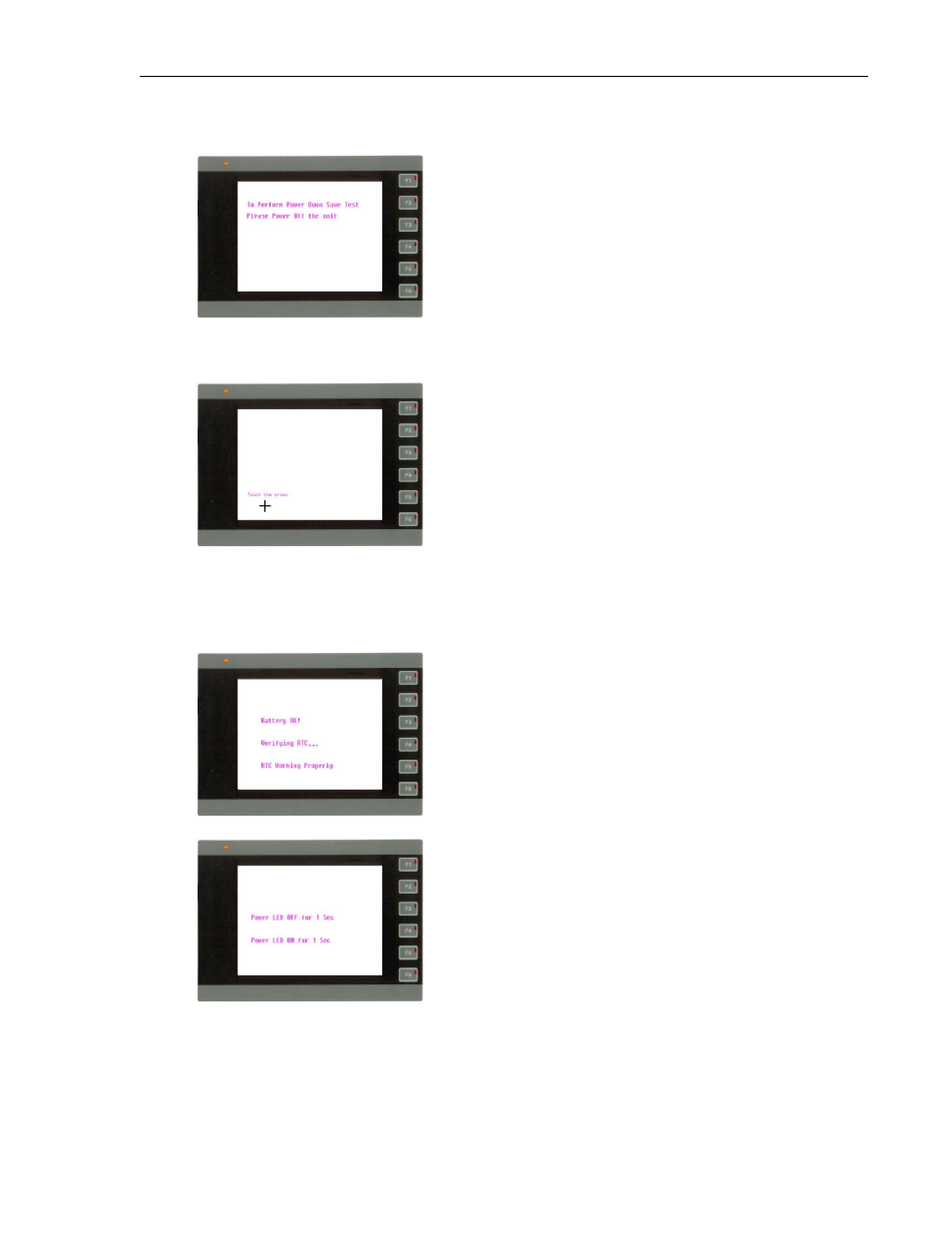

Power Down button – tests ability to retain data in non-volatile memory after the HMC
has shut off:
Shut off the HMC7000 when this screen appears, then reapply power after a few
seconds.

Touch Screen button – this button executes a test of the touchscreen:
Press the crosshair symbol at each requested location, (you must touch the crosshair
within two seconds of appearance). If all goes well, the HMC7000 will report that the
touchscreen is working properly.

RTC button – this button executes a test on the battery for the RTC (Real-time clock) and
then tests the RTC:

Power LED button – tests the power LED.
To perform this test, watch the power LED and verify that it turns Off then On.
