MAPware-7000 Programming Manual 159
1010-1040, Rev. 02

Simulation (List Nc) – select ‘On/Off’ to see how button looks in that state (only
available if Feedback Tag is ‘Yes’).

Task (List O) – subtract Constant Value from Tag (cannot be modified)

Value (List P) – this is the constant value that is subtracted from the Tag Address

Value Data Type (List Pa) – select the data format used to add the value to the target
register. Options are unsigned, signed, hexadecimal, BCD, and binary.

Design (List S) – identifies object

Layout (List T) – coordinates (i.e. size and position) for the object

Tag Properties (List Q) – address of target to use

Tag Address (List Qa) – this is the address of the target bit/coil that is toggled

Tag Name (List Qb) – name assigned in the tag database to the target bit/coil
How do I resize a Subtract Value from Tag button object? Move the mouse pointer over one of
the resize handles. When the pointer changes to a double-headed arrow, simply click and drag
to a new location.
Add Tag B to Tag A
When pressed by the operator, causes HMC to read the current value in a defined register
designated as Tag B and then add this value to the current value in a targeted register
designated as Tag A.

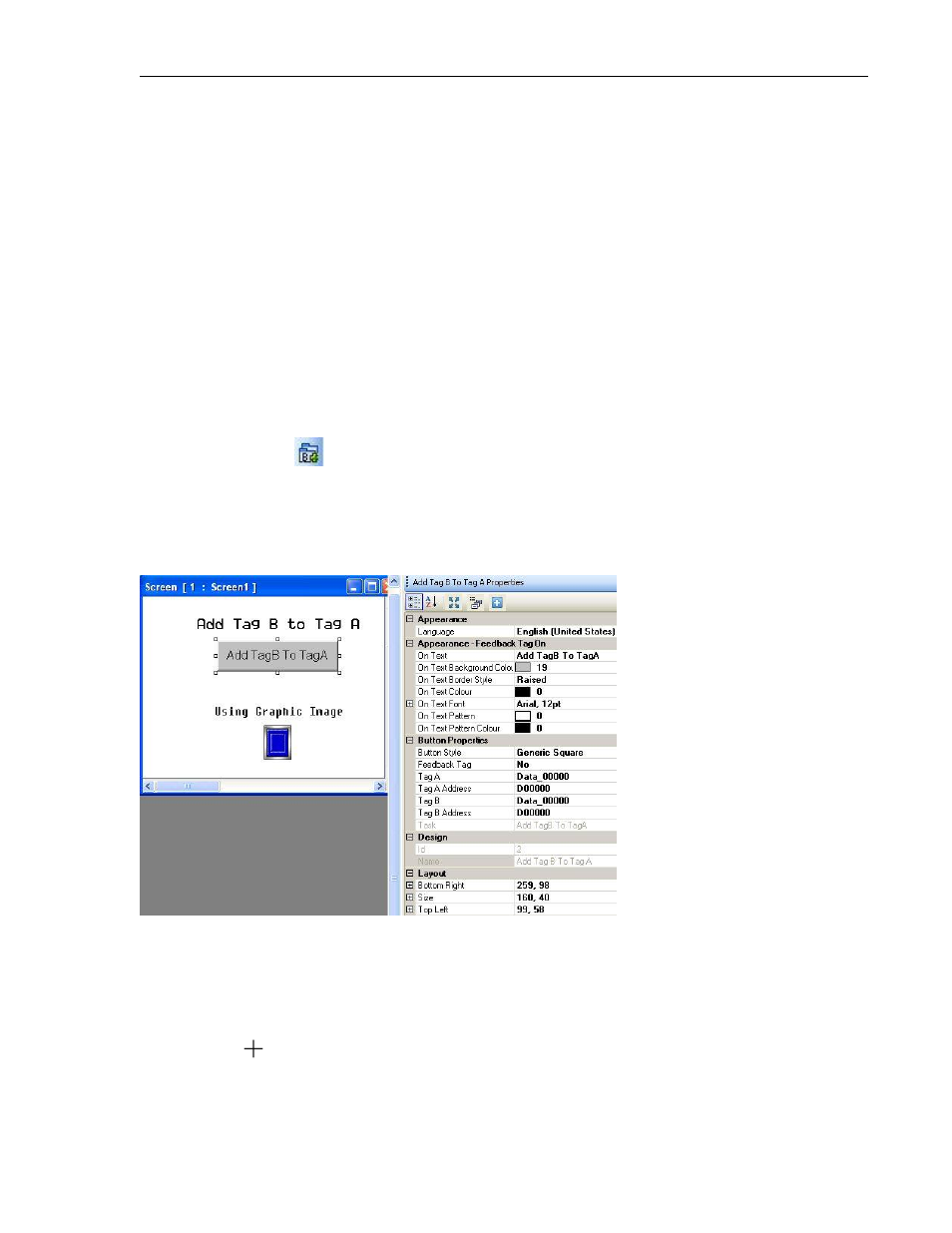

Place an Add Tag B to Tag A button object on screen
1. Use one of the following:
a. click Draw…Buttons…Word Action…Add Tag B to Tag A from the standard menu
b. click Quick Buttons…Add Tag B to Tag A from the Draw toolbar
2. Move cursor to a start point for the button object. Click and hold mouse cursor.
3. Drag mouse cursor to an end point for the button object and release. The button
appears on screen and the Add Tag B to Tag A Properties box displays.
