282 MAPware-7000 Programming Manual
1010-1040, Rev. 02

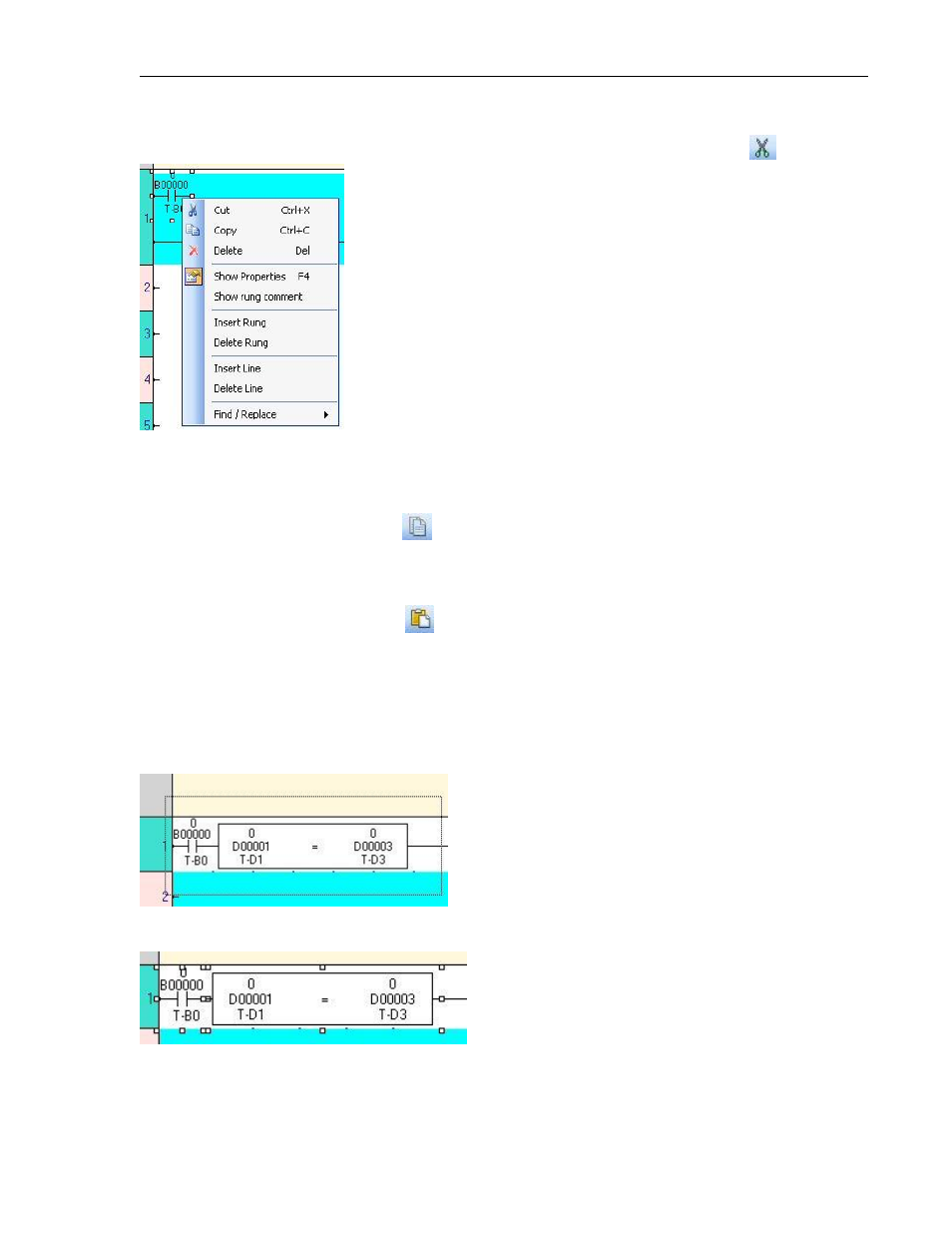

To cut:
Right-click over the element and select Cut from the popup dialog box (or select ):
The element(s) are removed from the ladder logic and placed in the Windows clipboard
memory.
To copy:
Same as above except select Copy
Similar to Cut, except that the original remains.
To paste:
Same as above except select Paste
Elements can be pasted where no obstruction (like another element) exists. To paste
any element, you must have first copied or cut it. All of these actions can be performed
on multiple elements by highlighting the elements first.
For example, suppose we have two elements below that we wish to copy and paste into
the 2
nd
rung:
Using the mouse click and drag to highlight both elements:
Click the Copy icon, then right-click on the 2
nd
rung (first column) and click Paste on the
popup dialog box:
