280 MAPware-7000 Programming Manual
1010-1040, Rev. 02

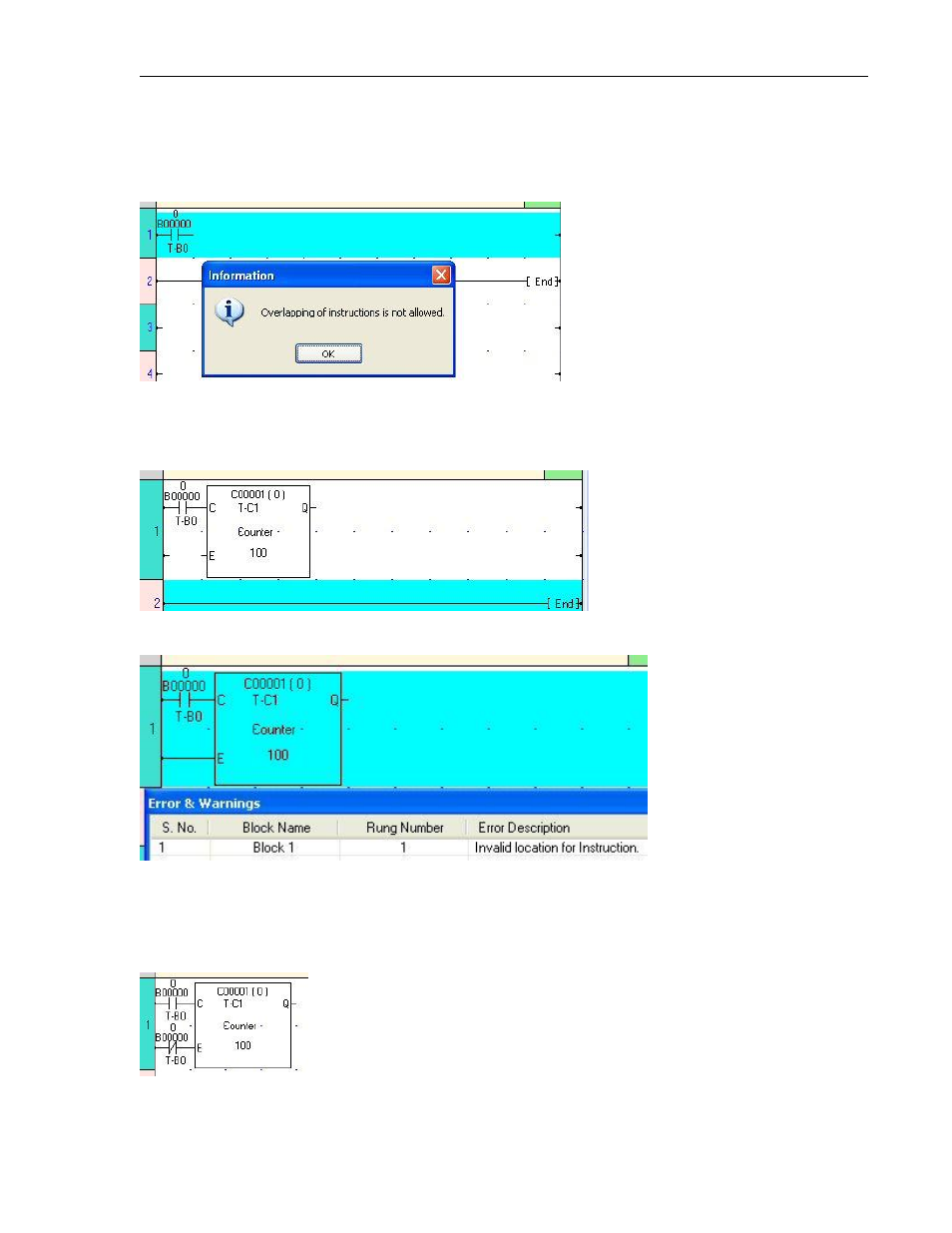

Errors when placing elements in rungs
In some instances, an element or instruction may require more space than is available
on the rung. In such an instance, you may see an error displayed:
When such an error occurs, try inserting additional lines or inserting the instruction in a
different column location:
If you get the following compile error:
Try using a different instruction. In this example, there must be a contact coil between
the Enable input to the counter and the left power rail. So we delete the horizontal link
and replace it with a Normally Closed contact:
