MAPware-7000 Programming Manual 143
1010-1040, Rev. 02

Border (List G) - add a line around the perimeter of the object.

Flash (List D) – continuously ‘flashes’ the object.

Font (List I) – select from one of four options- 5x7, 7x14, 10x14, and 20x28 pixels.

Off/On Text – message text displayed according to the current value in the target
address. Maximum number of characters is 40.

Text Color (List Kb) - Determines the color of the text. Click to display the color
palette.

Design (List S) - identifies object.

Display Data Properties – address of target.

Tag Address (List Qa) – this is the address of the target bit/coil that is monitored.

Tag Name (List Qb) – name assigned in the tag database to the target bit/coil.

Layout (List T) – coordinates (i.e. size and position) for the object.
Resize a Bit Display object
The Bit Data object cannot resize (unless you change the Font attribute) but can move.
Display and Write

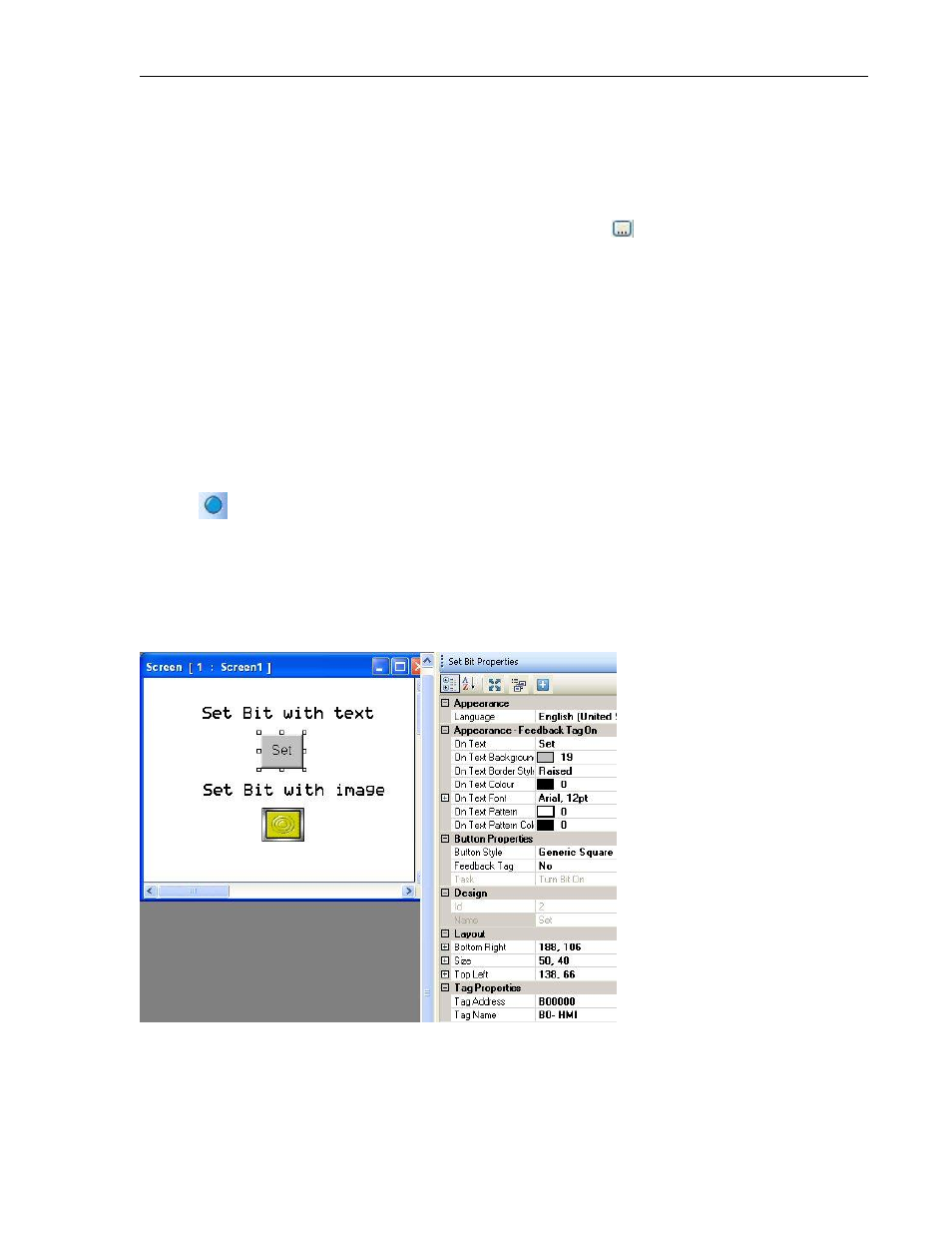

Set Bit
The Set Bit button sets a targeted bit/coil. The button displays with either text labels or a
graphic image to represent two states. When a set bit button is on screen, the HMC
continuously polls the target bit register to determine which state to display (feedback tag must
be enabled to display two states).
