180 MAPware-7000 Programming Manual
1010-1040, Rev. 02

Tag Address (List Qa) – this is the address of target register that is monitored

Tag Name (List Qb) – this is the name given to the tagged register in the Tag Database

Layout (List T) – coordinates (i.e. size and position) for the object
Resize a Bar Graph object
Move the mouse pointer over one of the resize handles. When the pointer changes to a double-
headed arrow, simply click and drag to a new location.
Multiple Bar Graphs

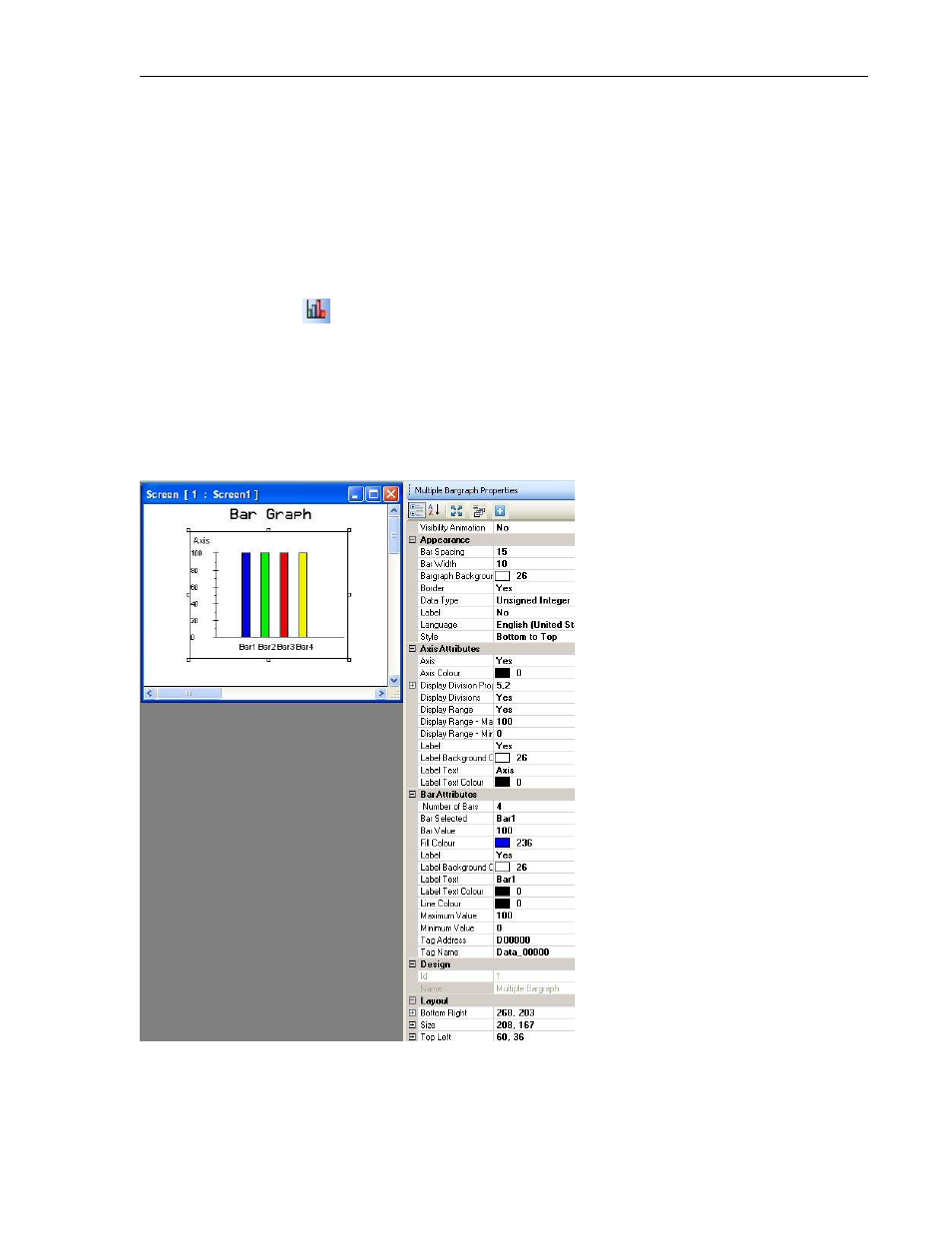

The Multiple Bar Graph object represents up to four consecutive 8/16/32-bit registers as a bar
chart whose proportional lengths correspond to the quantity in each register. A multiple bar
graph can move in any direction (i.e. left to right, bottom to top, etc.) and monitor the target
registers as signed/unsigned integer, BCD, or floating point values. The Multiple Bar Graph
object supports title bars, selectable colors, and number designators along the Y-axis.
