330 MAPware-7000 Programming Manual
1010-1040, Rev. 02


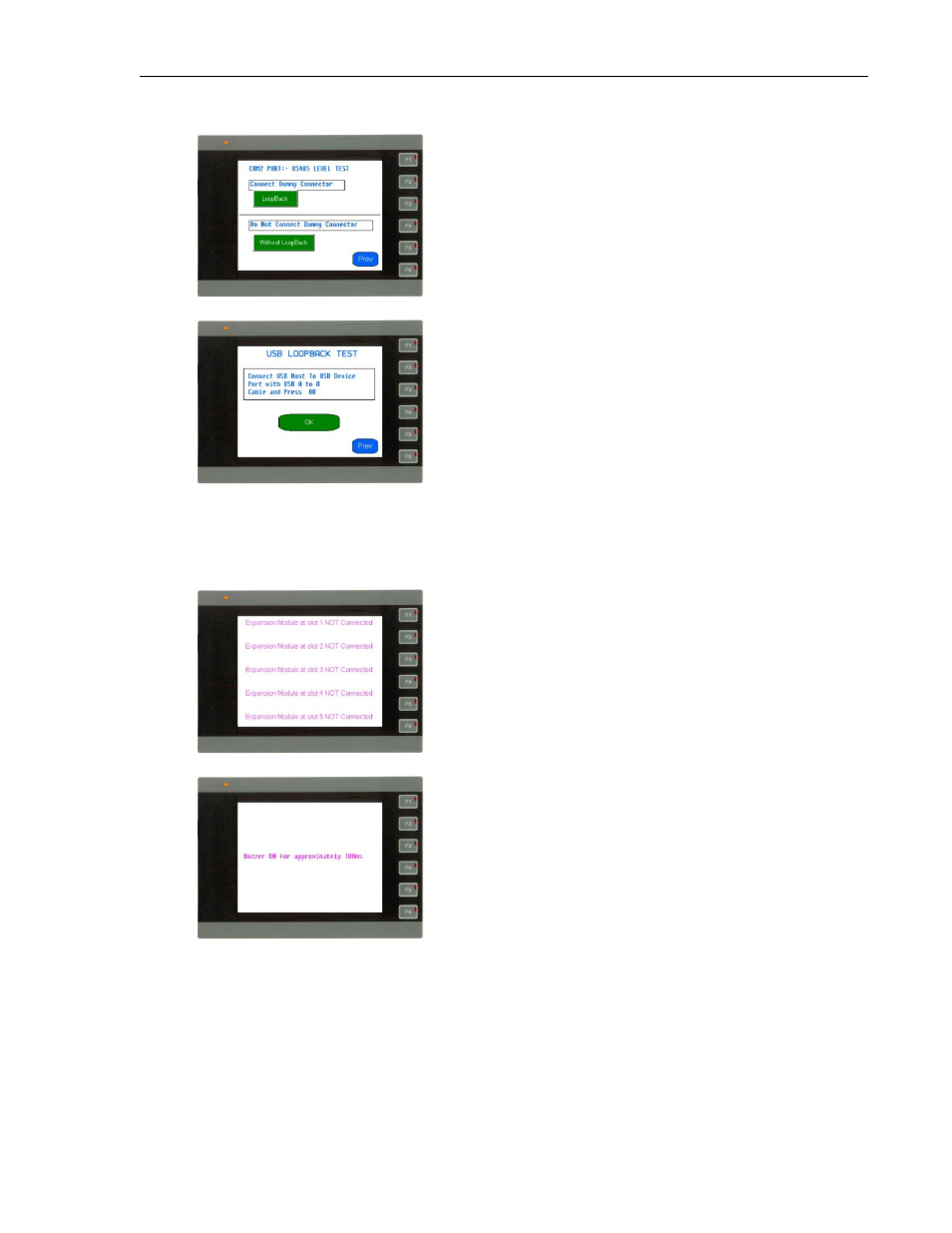

RS485 Com2 button (HMC7057 only) – executes serial port tests for Com2 RS485:

USB button – executes a USB loopback test.
This test requires that a USB cable connect to the USB Host port (Type A) and the other
end connect to the USB Slave (Type B) port.

Expansion Port button – this tests each I/O expansion slot on the HMC7000 unit. If an
expansion module is connected to the slot, the test will report the condition of the
module. If no expansion module is connected to the slot, the test will report this:

Buzzer button – this test sounds the internal HMC7000 buzzer for 100msec.

Save Result button – saves the results of all FHWT tests to internal memory.

Erase Result button – erases the results of all FHWT tests from internal memory.
