MAPware-7000 Programming Manual 59
1010-1040, Rev. 02

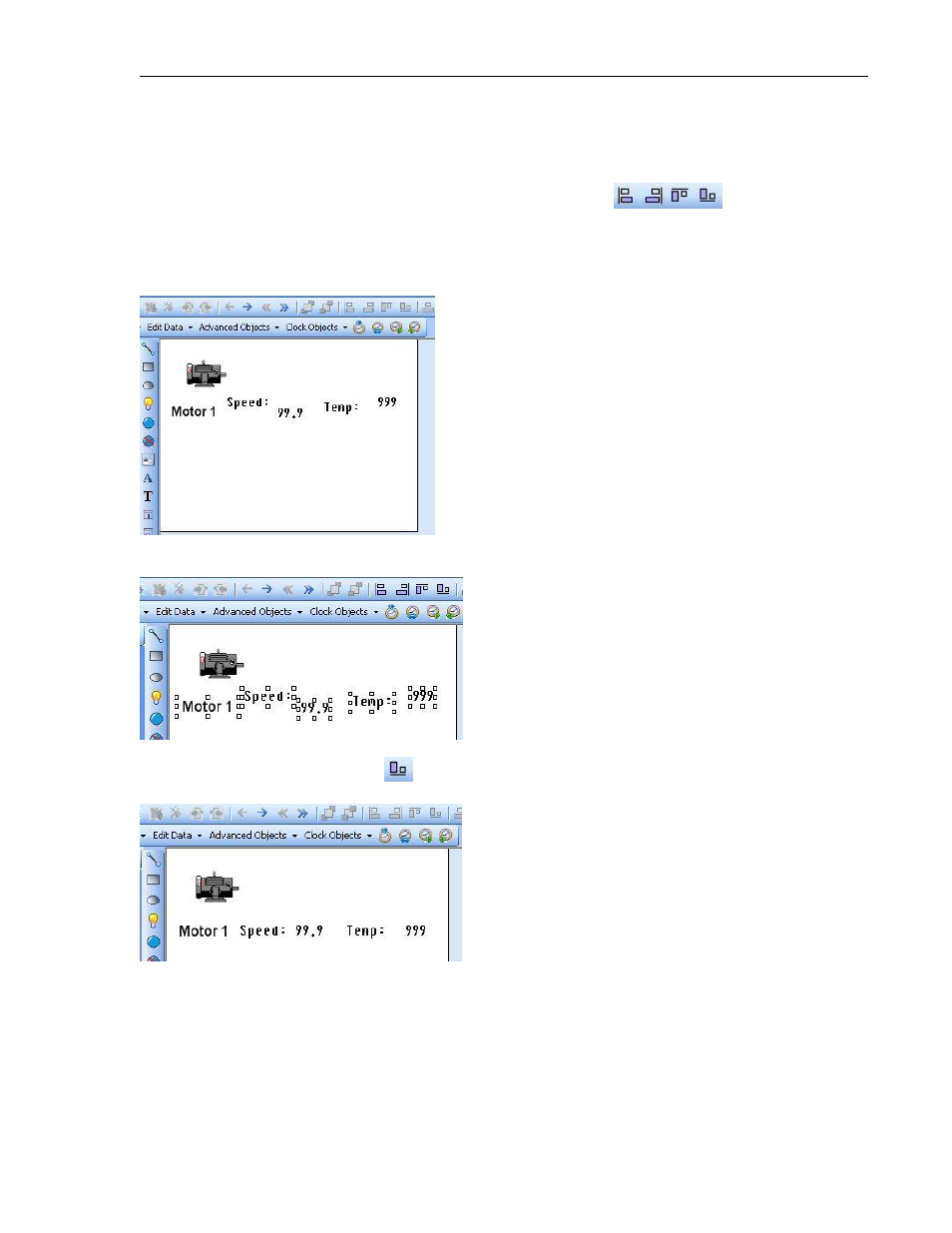

Aligning objects
As you create projects in MAPware-7000, you will often wish to have two or more objects
leveled either horizontally or vertically. The easiest method is to highlight the objects (see
Moving and Resizing Objects) and then use the four alignment tools located in
the Layout…Align… menu or Layout toolbar.
For example, the programmer wants the following objects to be horizontally level:
First, he highlights all objects to be leveled:
Then he clicks on the Align Bottom icon:
