Resize a Bit Lamp object
Move the mouse pointer over one of the resize handles. When the pointer changes to a double-
headed arrow, simply click and drag to a new location.
Bit Display
Bit Display indicates the current state of a bit register using two predefined messages (i.e.
ON/OFF). The current value read in the targeted bit/coil message determines what message
displays. Messages can be of varying length (maximum of 40 characters). When a bit data
display is on an HMC screen, the HMC continuously polls the target bit register to determine
which message to display.
Place a Bit Display object on screen
1. Use one of the following:
a. Click Draw…Display Objects…Data Display…Bit Data from the standard menu
b. Click Show Data…Bit Data from the Draw toolbar
c. Click on the Bit Display icon in the Objects toolbar.
2. Move cursor to a start point for the button object. Click to place the object on
screen.

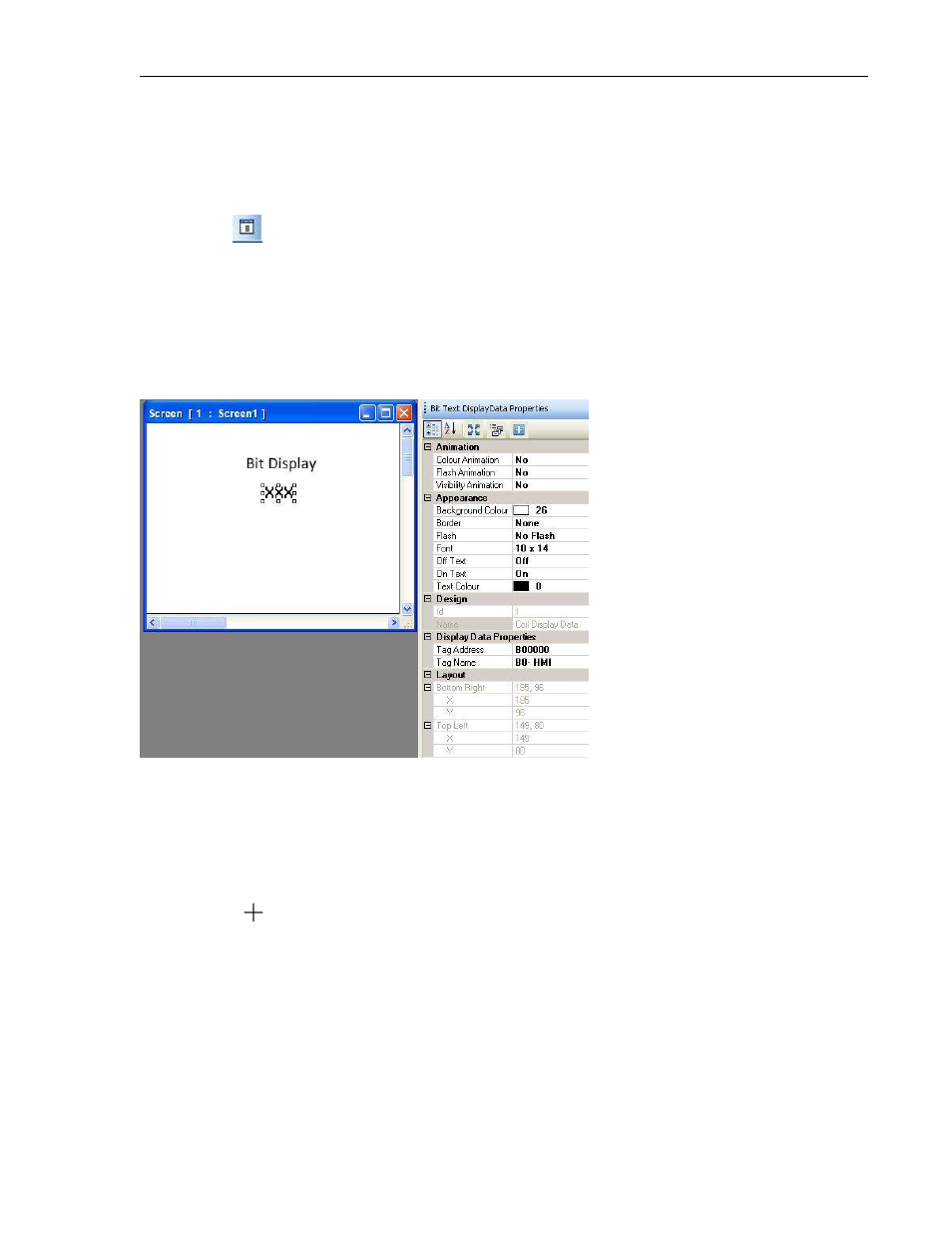

3. The object appears on screen and the Bit Text Display Data Properties box displays.
Bit Display Properties Options

Color Animation (see Feature List A) - dynamically change the color of the object.

Flash Animation (List B) - dynamically ‘flash’ object.

Visibility Animation (List C) - make the object disappear or become ‘invisible’.

Background Color (List F) – option to select a color as a ‘backdrop’ to the object.
