Maple Systems OIT4165A User Manual
Installation manual

Appendix D

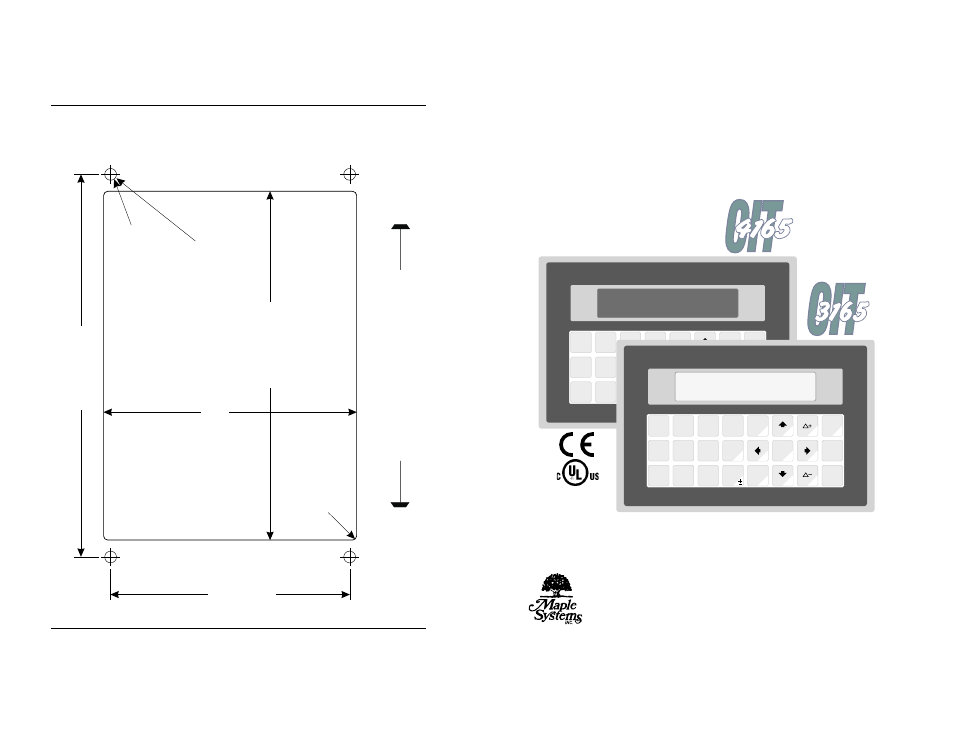

OIT Panel Cutout Dimensions – Front View
24
OIT3165A/4165A
1010-0102, REV 05
3.50" +/-0.01 88.9mm +/-0.3
0.172"
+/-0.01
Dia.,
4.4mm
+/-0.3
4H
ol
es
5.10"
+/-0.03
129.5mm
+/-0.8
5.60"
+/-0.01
142.2mm
+/-0.3
3.70"
+/-0.03
94mm
+/-0.8
R0.08"
max.
2.0mm 4
Places
Connect
mounting
stud(s)
to
control
panel
earth
ground
Check
Dimension
4.00"
[101.6
mm]
