Place a Go to Next Screen button on screen
1. Use one of the following:
a. Click Draw…Buttons…Navigation Buttons…Go to Next Screen from the standard
menu
b. Click Quick Buttons…Go to Next Screen from the Draw toolbar
2. Move cursor to a start point for the button object. Click and hold mouse cursor.
3. Drag mouse cursor to an end point for the button object and release. The button
appears on screen and the Go to Next Screen Properties box displays.
Go to Next Screen Properties Options

Language (List J) - configure a text label for up to 9 languages per object.

Appearance Feedback Tag On/Off (List L) – select the On and/or Off labels.

Button Style (List M) – selects a style or ‘look’ to the button.

Feedback Tag (List N): Enable this feature and select the same tag for both the target
address and the feedback tag address, if you wish to see the button change state (i.e. go
from an ‘off’ or untouched look to an ‘on’ or touched look).

Simulation (List Nc) – select ‘On/Off’ to see how button looks in that state (only
available if Feedback Tag is set to ‘Yes’).

Task (List O) - Go to Next Screen (cannot be modified)

Design (List S) - identifies object.

Layout (List T) – coordinates (i.e. size and position) for the object.
Resize a Go to Next Screen button
Move the mouse pointer over one of the resize handles. When the pointer changes to a double-
headed arrow, simply click and drag to a new location.

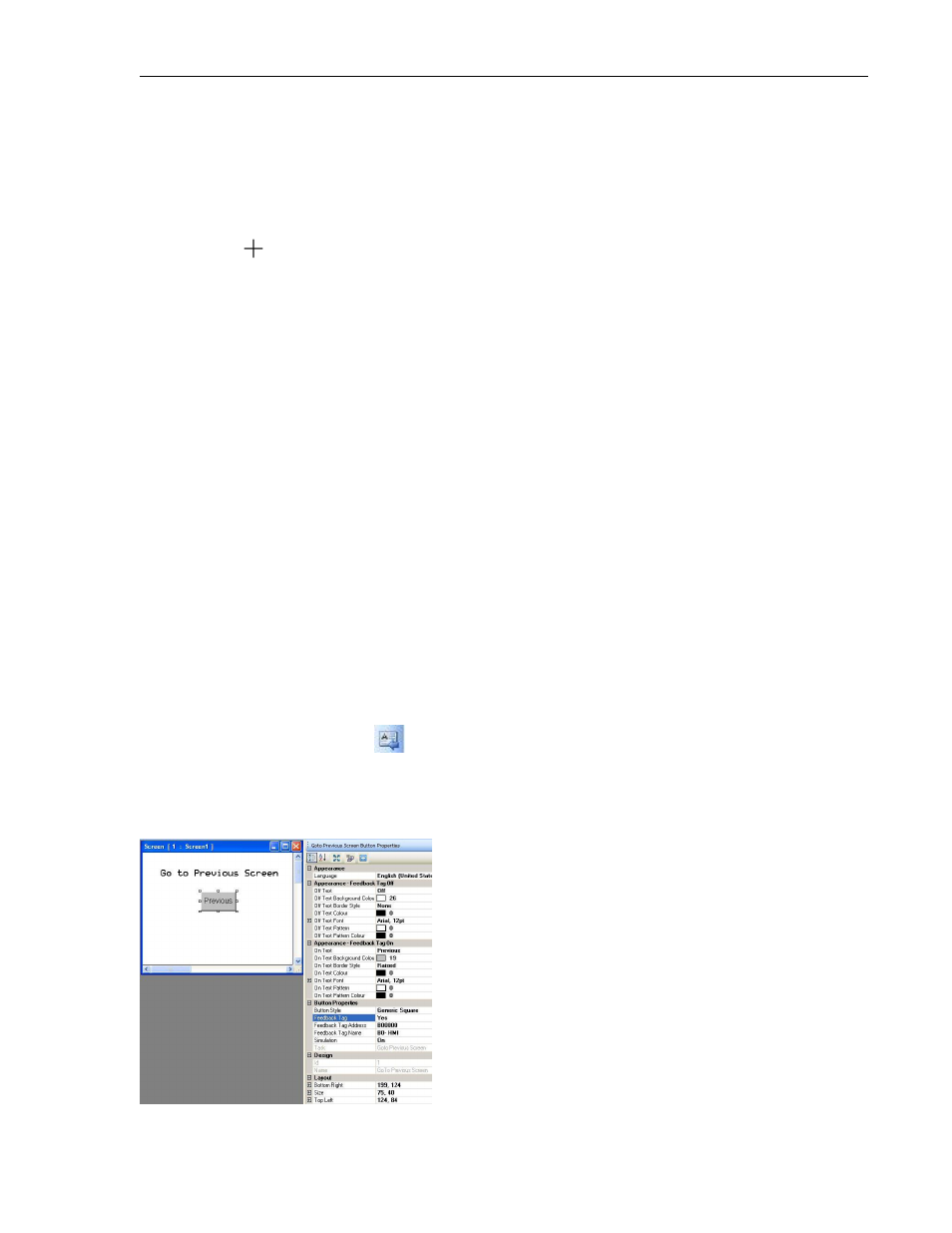

Go to Previous Screen Object
Use to display a button on screen that, when pressed, displays the prior screen in numerical
sequence. If there are no lower screens, then pressing this button has no effect.
