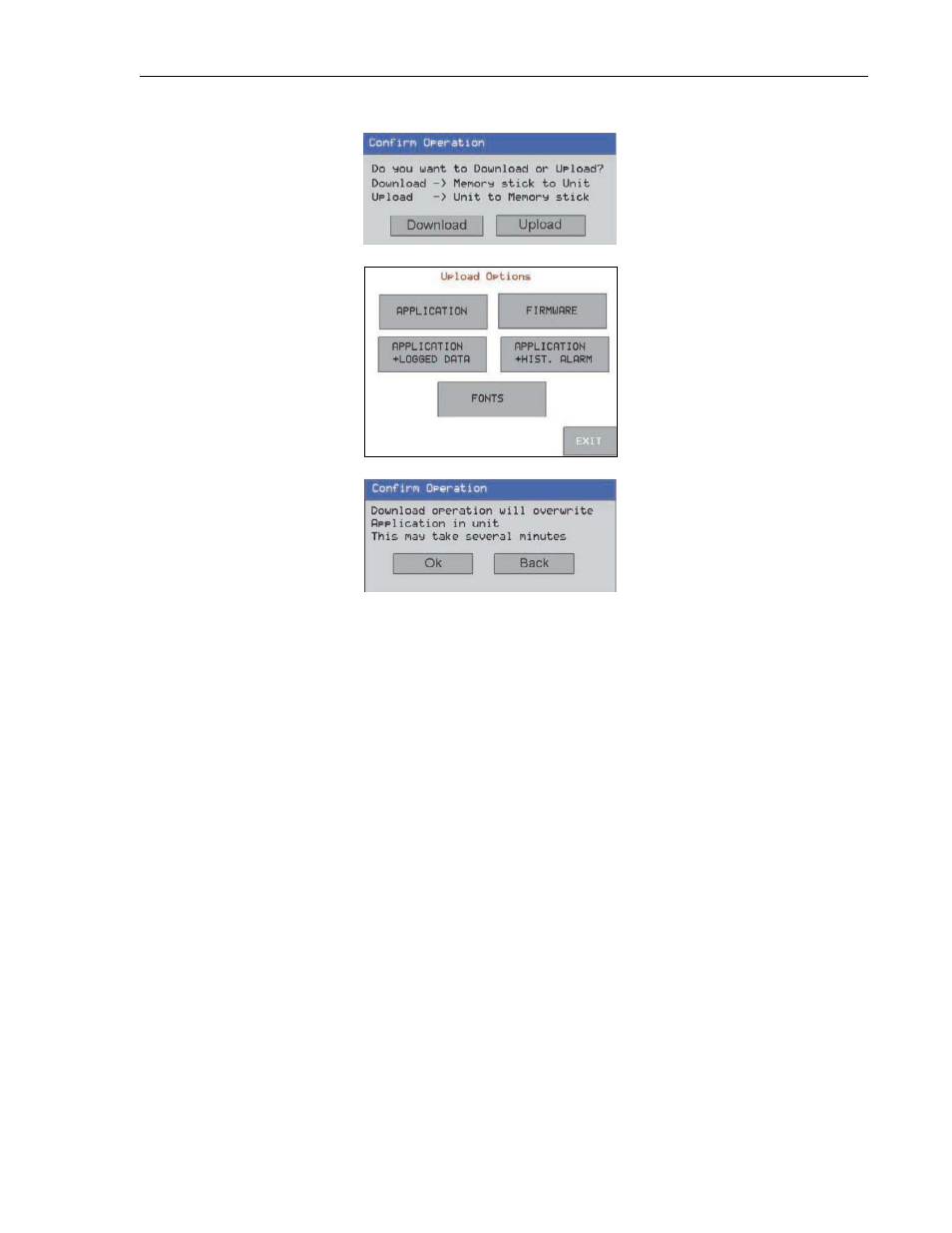

following message should appear:

Click ‘Upload’ to see:

Click on ‘Application+Logged Data’ to see:

Click ‘OK’. The message ‘Uploading Application file’ should
appear along with a System Load Bar. After some time, another
message ‘Uploading Logged Data file’ should appear. The entire
DataLog file (size is 256KB, 512KB, 1024KB, or 2048KB
depending upon memory allocated) is uploaded into the Flash
Drive. When done, a message appears indicating that the
Upload was completed successfully- Press OK to continue.

Click ‘OK’. The Upload Option screen reappears. Click ‘Exit’ to
leave this menu. The HMC7000 will now reboot and run the
project.

Remove the Flash Drive from the HMC7000 and examine the
files using your computer. Two files should be present:
o HMCModel.mpl – this is the project application file that
you can select and configure using the MAPware-7000
configuration software.
o Logger_Data.bin – this is the DataLog file that the
HMC7000 uses internally to record all data collected
using the Data Logger feature. To view the data, you
must rename this file to Logger.bin and then copy this
file into the main directory of MAPware-7000 (ex.
C:\Program Files\MapleSystems\MAPware7000).

In MAPware-7000, click Tools…Display Logged Data…
The data is converted into a CSV file (Logg.csv) and displayed
using Microsoft Excel.
