4 Device control (DCTRL)
4.3 Auto-start option "Inhibit at power-on"
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

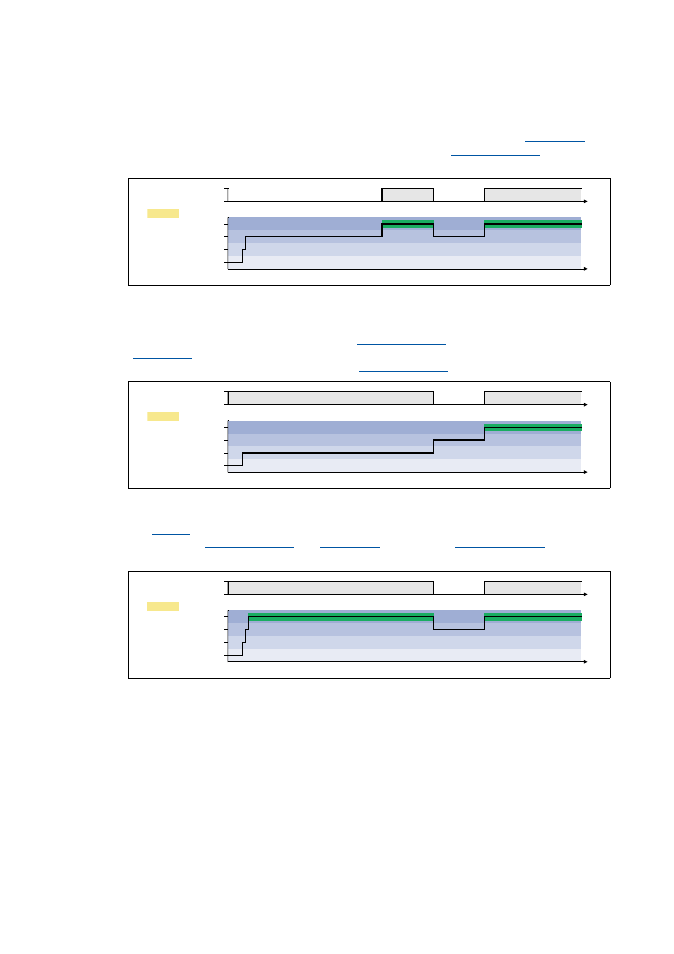

Case 1: No controller enable at mains connection
If the controller is not enabled at mains connection, the controller remains in the "
SwitchedOn " sta-
tus. Only with the controller enable, the device changes to the " OperationEnabled " status, inde-
pendent of the set auto-start option:
Case 2: Controller enable at mains connection and "Inhibit at power-on" activated
If the controller is enabled at mains connection and the auto-start option "Inhibit at power-on" is
activated, the controller remains in the " ReadyToSwitchOn " status. For changing to the
" SwitchedOn " status, the controller enable must first be deactivated. Only when the controller is en-
abled again afterwards, the status changes to " OperationEnabled ":
Case 3: Controller enable at mains connection and "Inhibit at power-on" deactivated
If in
C00142 the autostart option "Inhibit at power-on" is deactivated (bit 0 = 0), the status first
changes from " ReadyToSwitchOn " to " SwitchedOn " and then to " OperationEnabled " after mains
connection with an enabled controller:
