3 Commissioning
3.6 Commissioning of the "Switch-off positioning" technology application
42 Lenze · 8400 motec · Reference manual · DMS 4.1 EN · 08/2013 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.6 Commissioning of the "Switch-off positioning" technology application

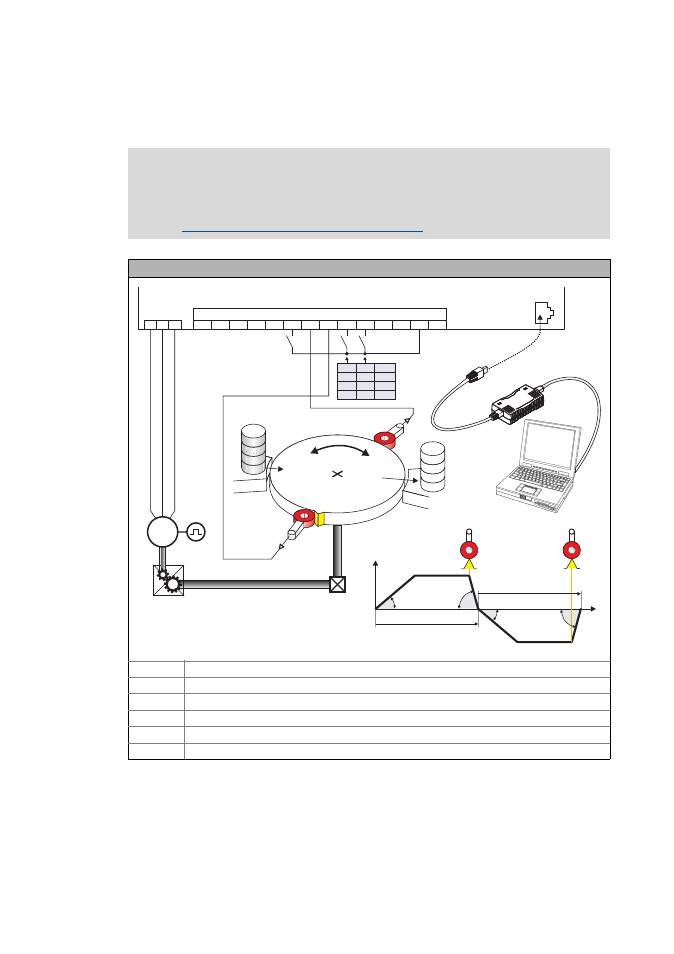

[3-2] Block diagram for wiring of the commissioning example for the "Switch-off positioning" technology application

Note!
Take all the necessary safety precautions before you carry out the following
commissioning steps and switch the device on!
 Safety instructions with regard to commissioning ( 31)
System constellation
RFR Controller enable
DI1 Initiator connection for stop function 1
DI2 Initiator connection for stop function 2
DI3 Quick stop for CW rotation / selection of switch-off position 1
DI4 Quick stop for CCW rotation / selection of switch-off position 2
DIAG Diagnostic interface for connecting the USB diagnostic adapter
8400 motec
X61
X6
DIAG
U V W DO1 24O GND NO COM AR AU GND
X3/X4
RFR DI1 DI2 DI3 DI4 DI5 DO1 24O GND NO COM
t [s]
0
1 QSP
Cw
Ccw
-
DI1 DI2
DI1
DI2
v [m/s]
C00039/3
C00012
C00012
C00013
C00039/3
C00013
Cw
Ccw
Cw
Ccw
M
3~
i
0
1
0
0
1
1
