9.3 Drive diagnostics with the »Engineer«

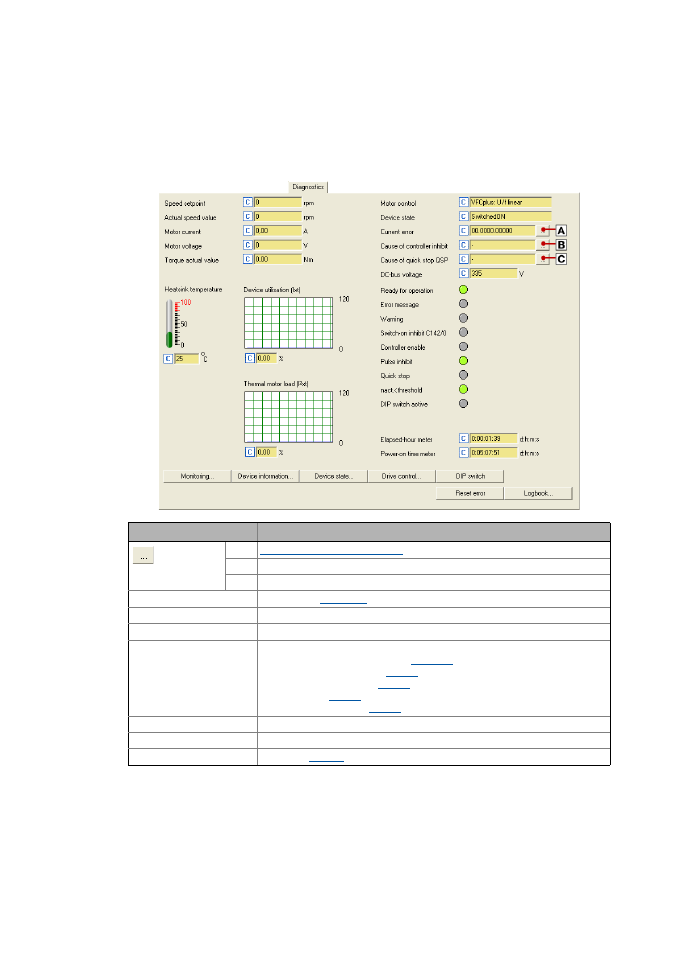

When an online connection to the controller has been established, the connected controller can be
diagnosed and relevant actual controller states can be displayed in a clearly arranged visualisation
using the »Engineer«:
Button Function
 Display details of the current error .
 Display all active sources of a controller inhibit.
 Display all active sources of a quick stop.
Monitoring... Configure the Monitoring . ( 291)
Device information... Display identification data, e.g. information on firmware version.
Device status... Display the internal state machine including the current device status.
Drive control... Display the bit assignment of the following control-related words:
• Network MCI/CAN control word ( C00136/1 )
• Cause of controller inhibit ( C00158 )
• Cause of quick stop QSP ( C00159 )
• Status word ( C00150 )
• Extended status word ( C00155 )
DIP switch Display setting of the DIP switches.
Reset error Acknowledge error message (if the error cause has been eliminated).
Logbook... Display the Logbook of the controller. ( 289)
