6 I/O terminals
6.2 Analog terminals
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6.2.1 Parameterising analog input

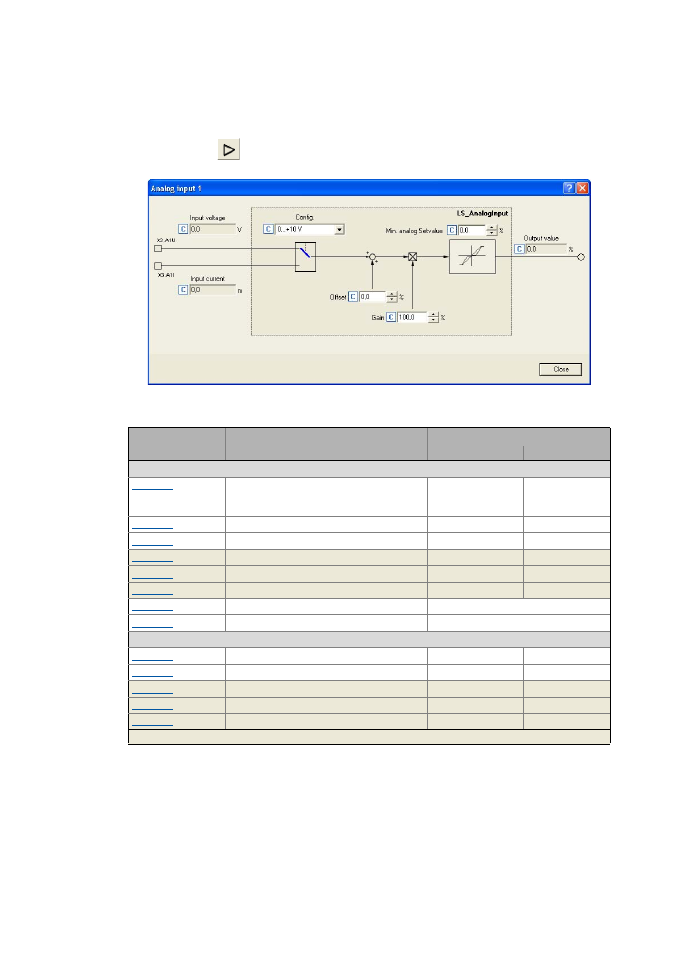

By clicking on the button on the Terminal assignment tab, you reach the parameterising dia-
log for the corresponding analog input:
Short overview of parameters for the analog inputs:
Parameter Info Lenze setting
Value Unit
Analog input 1
C00010/1 minimum analog setpoint
• Not effective with bipolar analog input (-
10 V ... +10 V)
0.0 %
C00026/1 AIN1: Offset 0.0 %
C00027/1 AIN1: Gain 100.0 %
C00028/1 AIN1: Input voltage - V
C00029/1 AIN1: Input current - mA
C00033/1 AIN1: Output value (to application) - %
C00034/1 AIN1: Config. 0: 0 ... +10 V
C00598/1 Resp. to open circuit AIN1 1: Fault
Analog input 2
C00026/2 AIN2: Offset 0.0 %
C00027/2 AIN2: Gain 100.0 %
C00028/2 AIN2: Input voltage - V
C00029/2 AIN2: Input current - mA
C00033/1 AIN2: Output value (to application) - %
Highlighted in grey = display parameter
