3.5 Commissioning of the "Actuating drive speed" technology application
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.5.4 Parameterise application

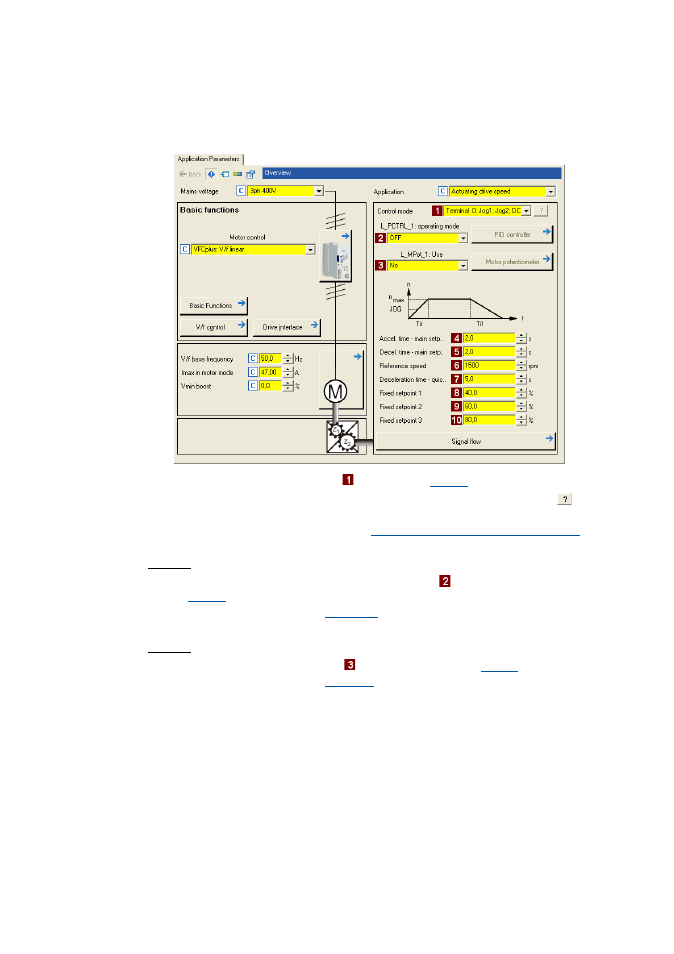

The application parameters can be found on the right side of the Application parameter tab:
1. Select the required control mode in the Control mode ( C00007 ) list field.
• The corresponding wiring diagram is displayed in a pop-up window if you click the button
right to the list field.
• For a detailed description, see the chapter " Terminal assignment of the control modes ".
( 214)
2. Optional: Use process controller.
• For this purpose, select the desired operating mode in the L_PCTRL_1: Operating mode list
field ( C00242 ).
• For a detailed description see the L_PCTRL_1 function block. ( 450)
• Go to the parameterisation dialog of the process controller via the Process controller button.
3. Optional: Use motor potentiometer.
• For this purpose, select "1: On" in the L_MPot_1: Use list field ( C00806 ).
• For a detailed description see the L_MPot_1 function block. ( 439)
• Go to the parameterisation dialog of the motor potentiometer via the Motor potentiometer
button.
