Lenze · 8400 motec · Reference manual · DMS 4.1 EN · 08/2013 · TD05 205
7 Technology applications
7.2 TA "Actuating drive speed"
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
7.2.1.1 "GeneralPurpose" functions
The following "GeneralPurpose" functions are freely available:
• The inputs of the "GeneralPurpose" functions can be linked to other output signals via the
configuration parameters of the application.
• On the other hand, the outputs of the "GeneralPurpose" functions can be selected in the
configuration parameters of other inputs.

How to open the parameterisation dialog of a "GeneralPurpose" function:
Go to the Overview  Signal flow dialog level and click the GP: GeneralPurpose >> dialog
box.

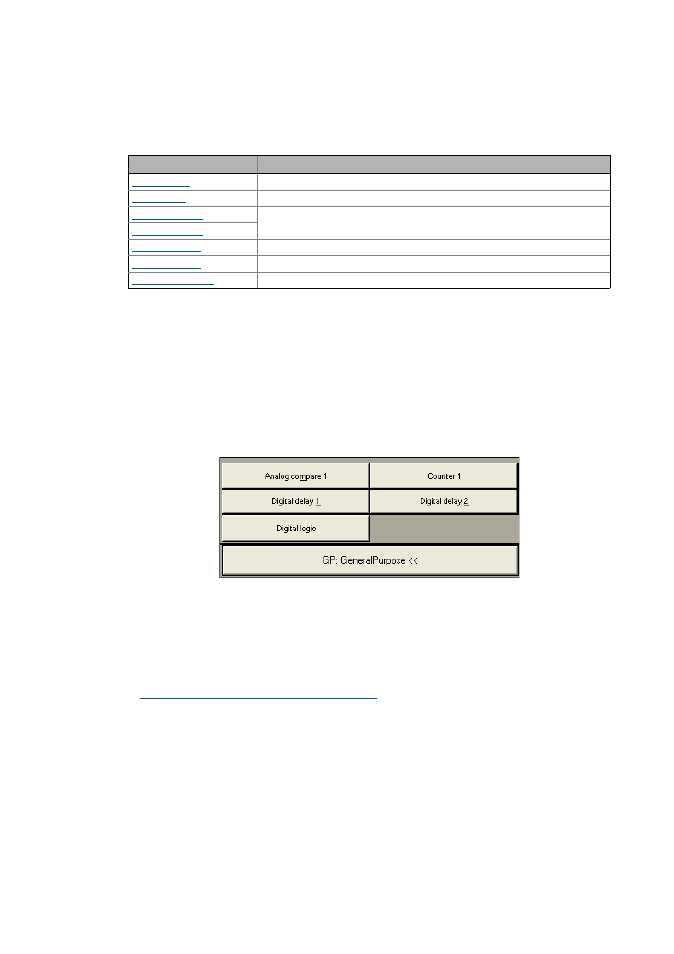

• Now, further buttons are displayed which are required for opening the parameterisation
dialog of the corresponding "GeneralPurpose" function:
• Renewed clicking on the GP: GeneralPurpose << button hides the additional buttons
again.
Related topics:
 Application example: Debouncing a digital input ( 468)
Function block Function
L_Compare_1 Analog comparison
L_Counter_1 Digital up/down counter
L_DigitalDelay_1 Binary delay element
(e.g. for debouncing a digital input)
L_DigitalDelay_2
L_DigitalLogic_1
Binary logic (as of version 02.00.00)
L_DigitalLogic_2 Binary logic (as of version 04.00.00)
LS_ParReadWrite_1 Reading and writing of local parameters (from version 04.00.00 onwards)
