Lenze 8400 motec - Manual (Page 117)

5
M
otor control (MCTRL)
5.7
V/f cont
ro
l (V
FCplus
+
e
nco
der)
Lenze ·
8400
motec ·
Refer
enc
e manual ·
DM
S
4.
1
EN
· 08
/2013 ·
TD05
11
7
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_ _
_

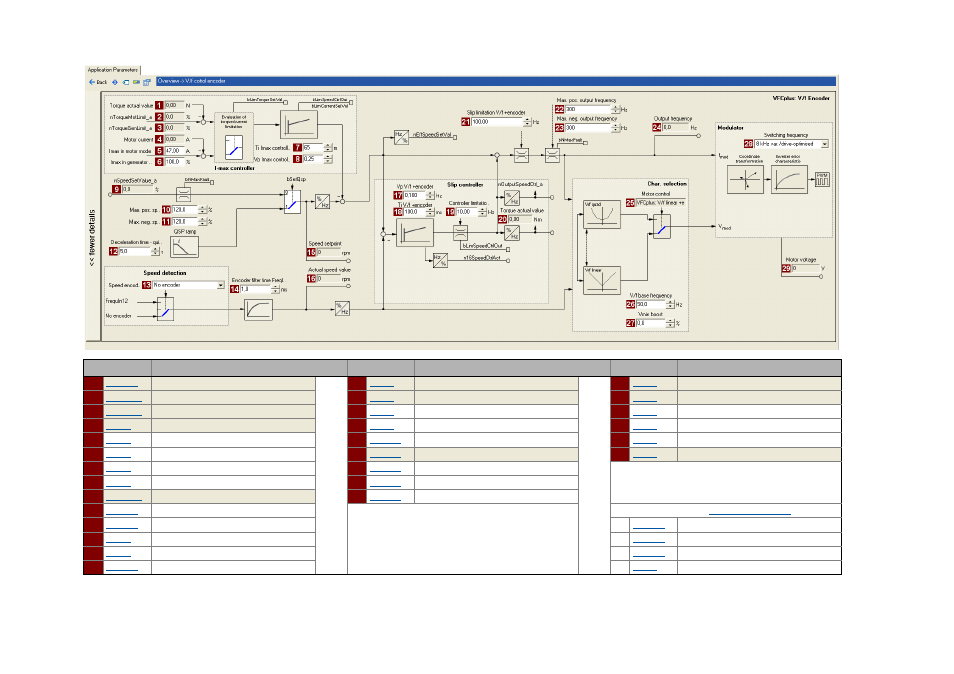

Parameter Info Parameter Info Parameter Info
1 C00056/2 Actual torque value 15 C00050 Speed setpoint 24 C00058 Output frequency
2 C00830/29 Limitation of torque in motor mode 16 C00051 Actual speed value 25 C00006 Motor control
3 C00830/28 Limitation of torque in generator mode 17 C00972 Vp Vf+encoder 26 C00015 V/f base frequency
4 C00054 Motor current 18 C00973 Ti Vf+encoder 27 C00016 Vmin boost
5 C00022 Imax in motor mode 19 C00971/1 Controller limitation Vf+encoder 28 C00018 Switching frequency
6 C00023 Imax in generator mode 20 C00056/2 Actual torque value 29 C00052 Motor voltage
7 C00074 Ti Imax controller 21 C00971/2 Slip limitation Vf+encoder
8 C00073 Vp Imax controller 22 C00910/1 Max. pos. output frequency
9 C00830/22 Speed setpoint 23 C00910/2 Max. neg. output frequency
10 C00909/1 Max. pos. speed More relevant parameters for Encoder/feedback system :
11 C00909/2 Max. neg. speed C00115/1 Fct. DI1/2 10kHz
12 C00105 Decel. time - quick stop C00420/1 Number of encoder increments
13 C00495 Speed sensor selection C00425/1 Encoder scanning time
14 C00497/1 Encoder filter time FreqIn12 C00496 Encoder evaluation method
