Lenze · 8400 motec · Reference manual · DMS 4.1 EN · 08/2013 · TD05 497
12 Function library
12.26 LS_SetError_1
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

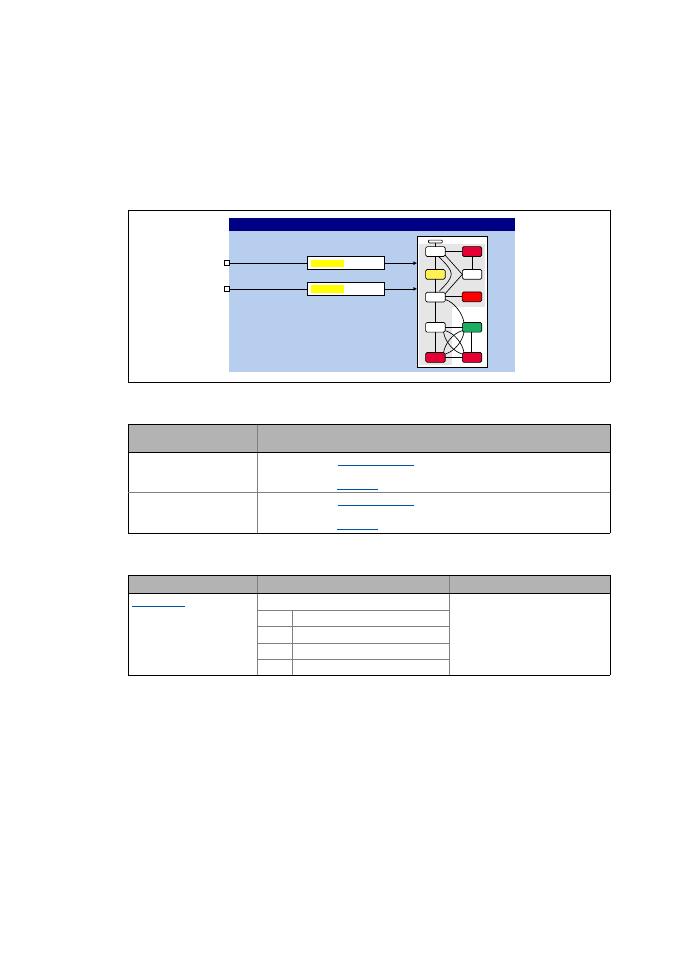

12.26 LS_SetError_1
This system block is used for error handling within the application.
• The application can trip up to two different user error messages with parameterisable error
response via the two boolean inputs.
• If both inputs are set to TRUE at the same time, the bSetError1 inputs trips the error message.
Inputs
Parameter
Identifier
Data type
Information/possible settings
bSetError1
BOOL
Input for tripping " US01: User error 1 "
• Error subject number: 980
• Error number: ( C00581/1 x 0x0400000) + (980 x 0x10000)
bSetError2
BOOL
Input for tripping " US02: User error 2 "
• Error subject number: 981
• Error number: ( C00581/2 x 0x0400000) + (981 x 0x10000)
Parameter Possible settings Info
C00581/1...2 Response for user error 1 ... 2
• lenze setting: "Fault"
0 No response
1 Fault (pulse inhibit)
2 Trouble
4 WarningLocked
