The “Cursor’s Value” dialog box appears showing the date and time of measurement
and the measured values at the cursor positions.
To precisely adjust the cursor position, click the “cursor adjustment” button on the
right of the data number. The cursor moves by one data point at each click.
If the monitor window is used for operation, the results of the operation are reflected
to the “Cursor’s Value” dialog box; and vice-versa.

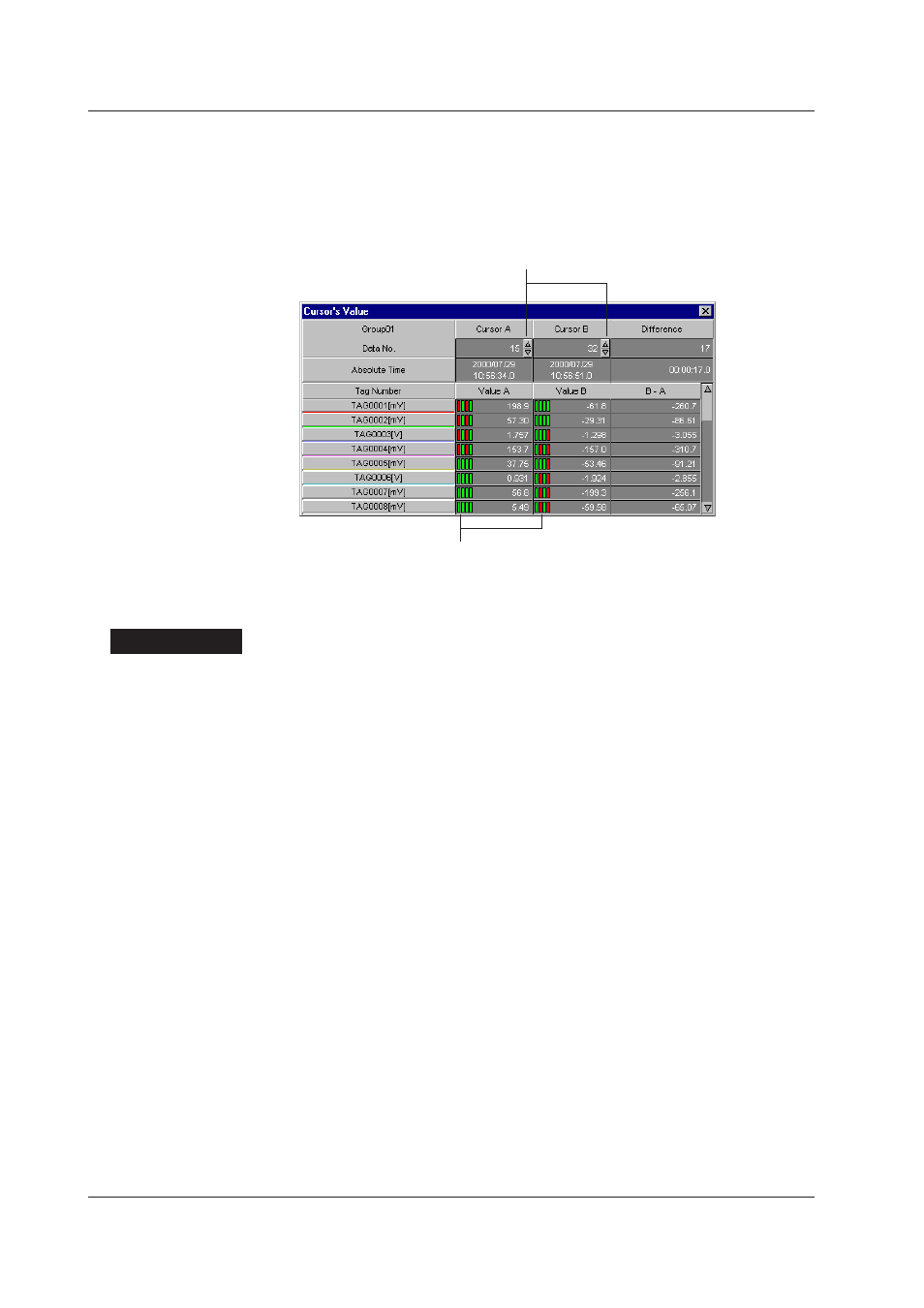

Cursor adjustment button
Alarm indication (Level 1, 2, 3, 4, from the left)
Alarm ON: red
Alarm OFF: green
Displaying cursor’s values with the Alarm Log display
Procedure
1. To pause the monitor’s display updating, click the “Pause” button on the toolbar, or
from the menu bar, select “Monitor” then “Pause.”
2. Click the “Cursor’s Value” button on the toolbar or select “View” then “Display Cursor’s
Value” from the menu bar.
The “Cursor’s Value” dialog box appears.
3.4 Using the Cursors
