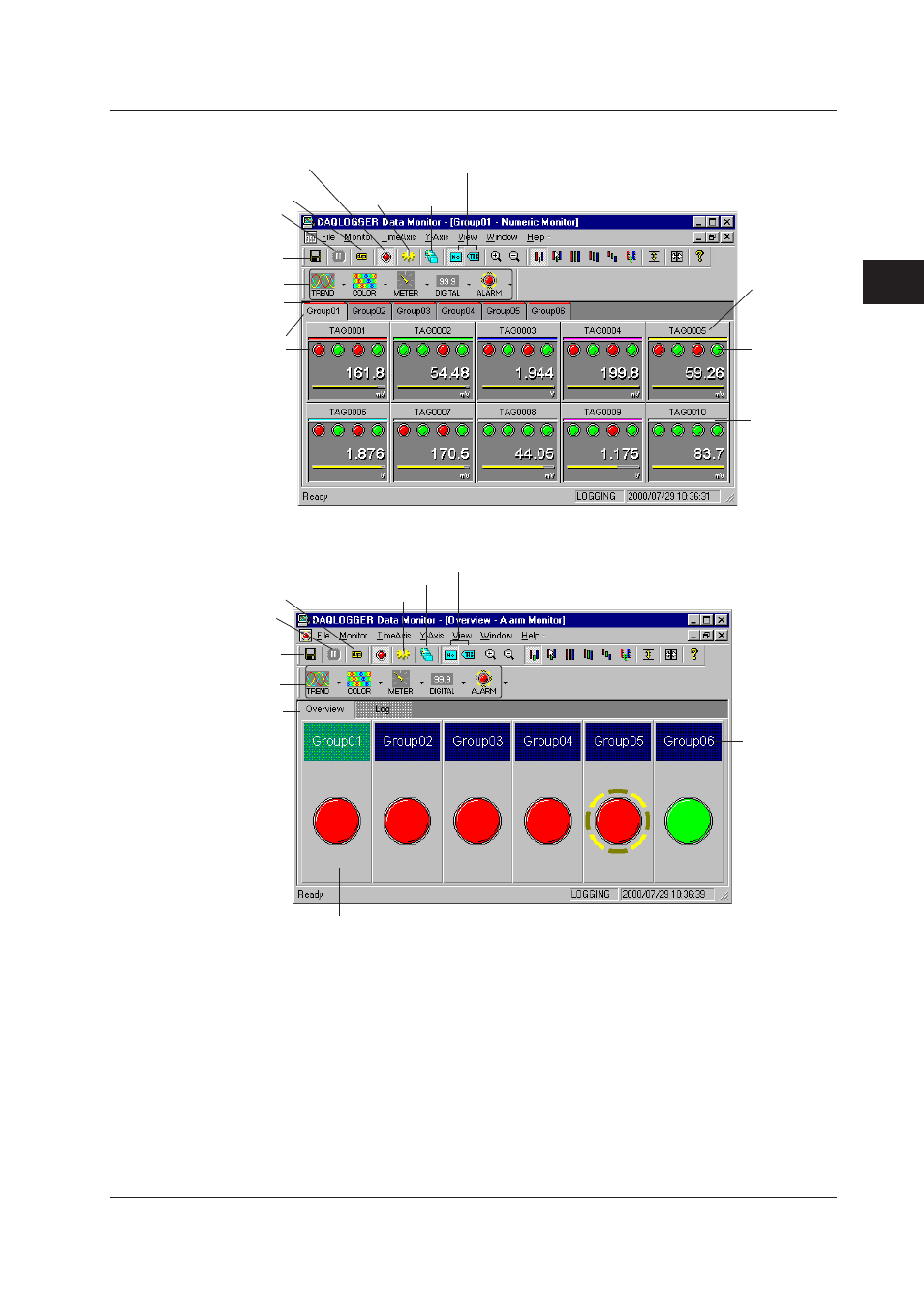

Using Data Monitor
Numeric Monitor
Link ON/OFF button
Display
settings
Pause updating data
Save display settings
Alarm display ON/OFF button
Tag number/name display switch button
Tag number
/name
Current
measured
value with
respect to
the scale
Waveform
display color
Select monitor
Red bar start blinking
when an alarm occurs
Select display group
Alarm indicator
(Level1, 2, 3, 4,
from the left)
Auto
Grouping
Alarm Monitor
Link ON/OFF button
Display settings
Pause updating data
Save display settings
Tag number/name display switch button
Group number
Select monitor
Select display
Alarm indicator
Turns red when an alarm occurs.
A blinking yellow ring is displayed around the lamp when there is an unconfirmed alarm.
The alarms are considered to have been confirmed if you click the lamp. At this point, the
ring disappears.
Auto Grouping
For the log display, see “Alarm Monitor” (P. 3-16).
