Timer

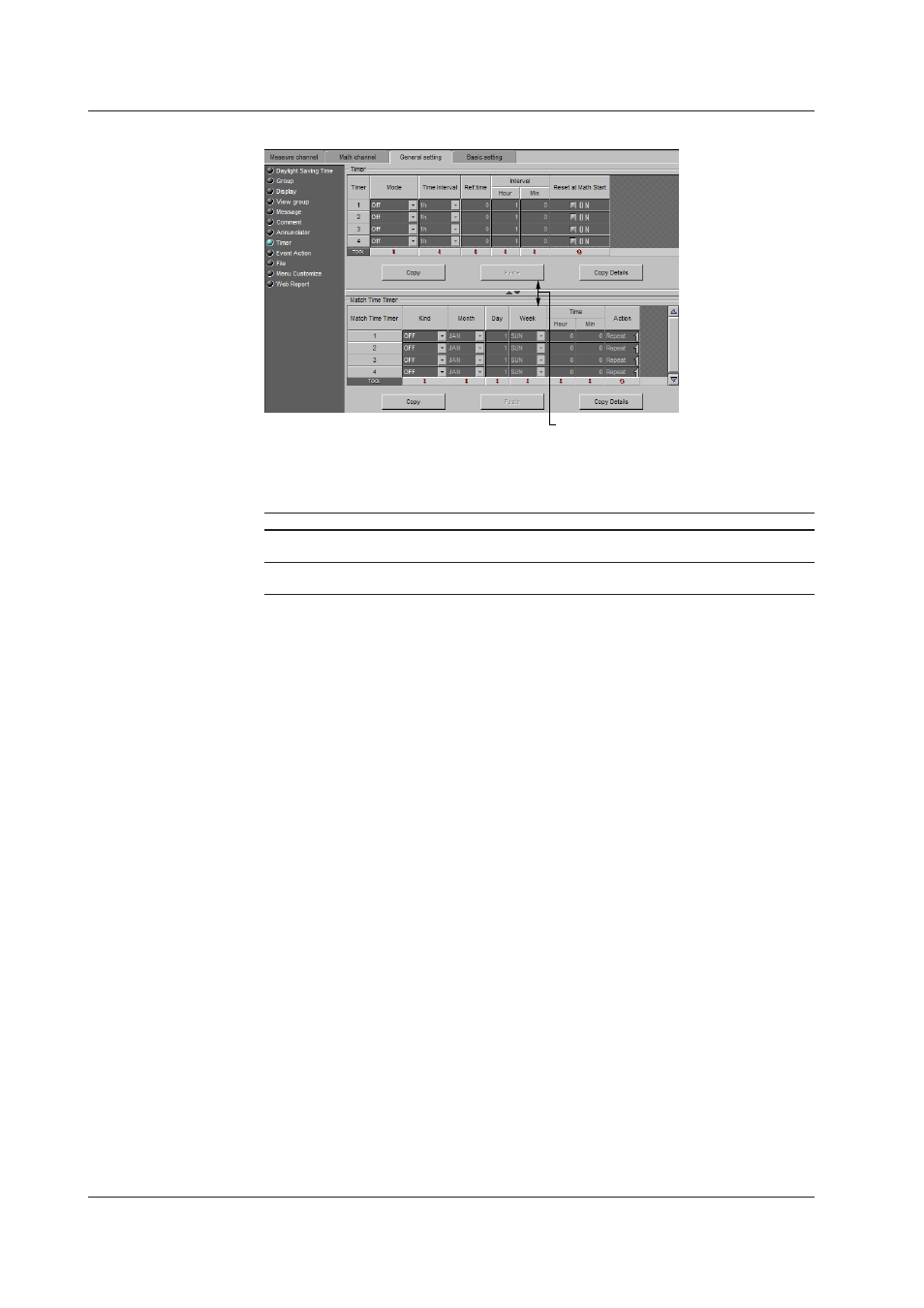

Changes the upper/lower display area
Timer used by event action. Used also in the TLOG computation of the computation
function. The table below shows the number of timers supported by the DX1000 and
DX2000.
Model Number of Timers
Models without the multi batch function
(/BT2 option) 4
Models with the multi batch function
(/BT2 option; release number 3 or later) 12
When Using an Absolute Timer
• Mode
Select [Absolute].
• Time interval
Select the interval from the available settings between 1min to 24h.
• Ref.time
Set the time in the range of hour 0 to hour 23.
When Using a Relative Timer
• Mode
Select [Relative].
• Time interval
Set in the range from 00:01 (1 min.) to 24:00 (24 hours).
Hour: Set in the range from 0 to 24.
Min: Set in the range from 0 to 59.
• Reset at Math Start
ON Resets the timer when computation is started. The resetting of the timer is not
considered to be a timeout. Even if the timer is used as an event, the action is
not executed.
