7-174 IM WX101-01E

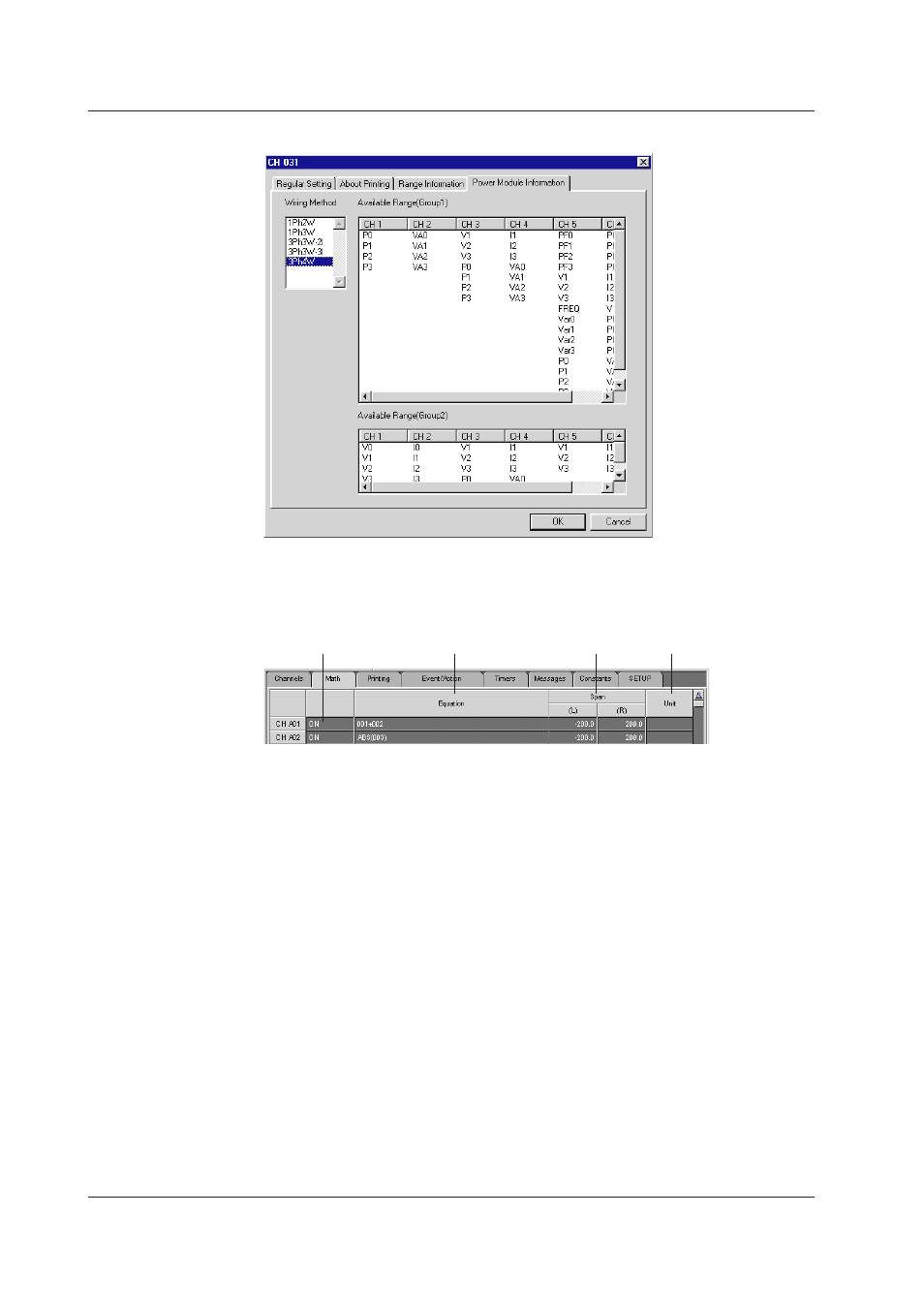

For power monitor channels, click the Power Module Information tab.
Setting Math Channel Equations
Math channels can be set on DARWIN recorders with the computation function (/M1) or
the Pulse Module, or DR with FD driver.
Math channel ON/OFF Equations Left and right span Unit
Making Settings Per Channel
The settings in “Channels” screen can also be carried out per channel. To open a single
channel-specific setting screen, double-click the desired channel number, displayed on
the left side of the “Channels” screen.
Computation equation
In addition to operators in the Operators Selection dialog box the following symbols can
be used in equations:
(/): Used for ( ) setting.
K: Used if equations contain constants K01 to K60.
M: Used to specify the measurement channel No. for which the data saved on the RAM
disk is to be regenerated. Applicable for the DR232-1/DR242-1 equipped with a
floppy disk drive.
A: Used to specify the computation channel No. for which the data saved on the RAM
disk is to be regenerated. Applicable for the DR232-1/DR242-1 equipped with a
floppy disk drive.
C: Used to specify communication input data (digital data).
G: Used to specify the group No. for which CLOG (computation of data of a group
measured on the same time) is to be used.
7.9 Setting DARWIN
