Using DAQLOGGER Client Package

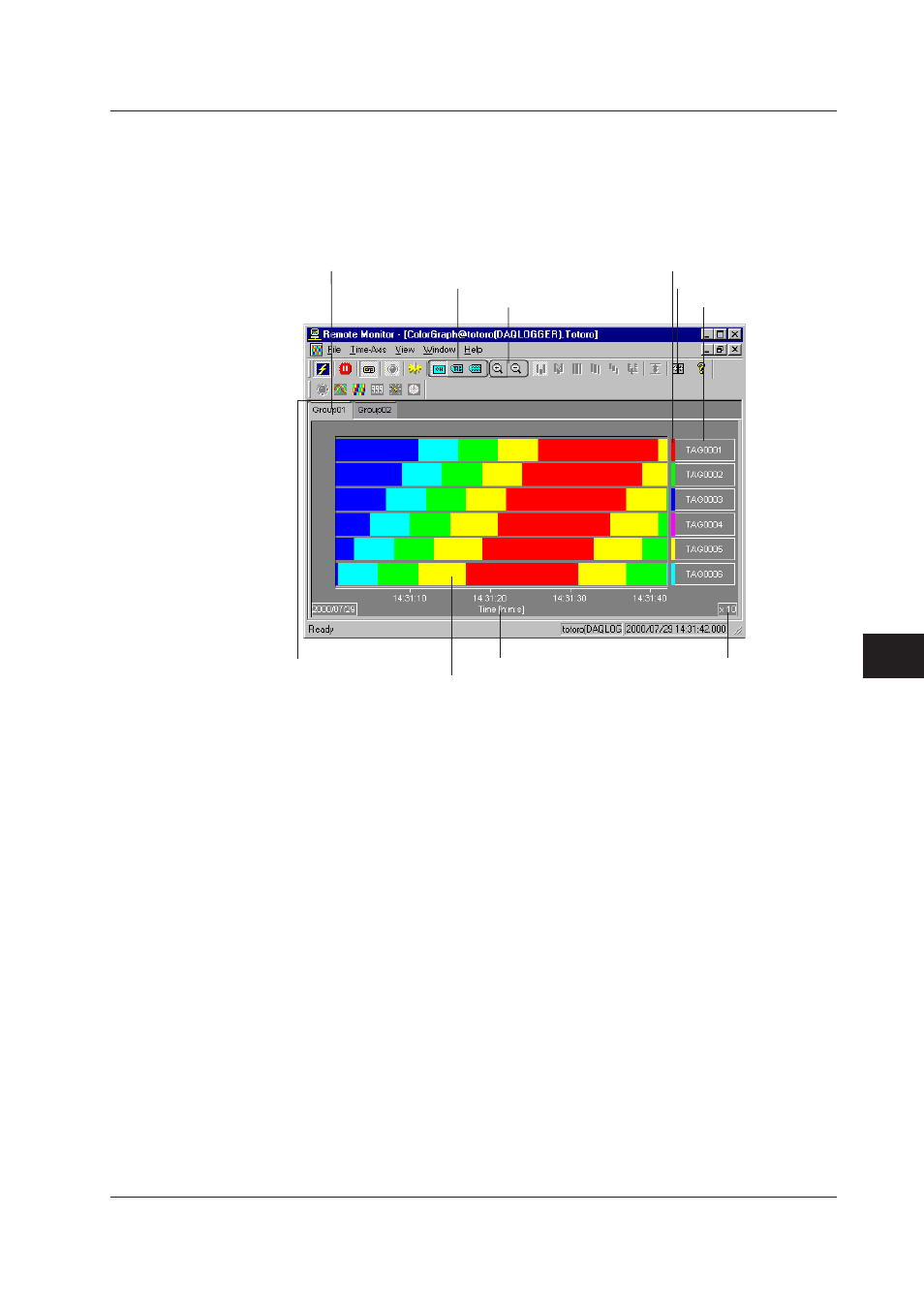

Color Graph Monitor
For the operating procedure, see “Color Graph Monitor” in section 3.3, “Changing the
Display Settings of Monitor Windows.”
For operations using the cursor, see section 3.4, “Using the Cursors.”
For details on general display settings, see “Setting the Display Conditions” in this
section (page 8-13).
Zoom factor
Select the displayed group
Switch tag number/tag name
Zoom in or out of the time axis
Display cursor value
Waveform display color
Tag number/tag name
Color of the color graph
Displays by using the 50 different colors that are assigned
between the minimum and maximum values of the scale.
In the following order:
blue (minimum), light blue, green, yellow, and red (maximum).
Absolute or relative time Group alarm condition
8.2 Monitoring the Data
