3-10 IM WX101-01E
3.3 Changing the Display Settings of Monitor
Windows
The display settings of monitor windows can be changed as desired.
This section describes the display settings of monitor windows: trend monitor, alarm
monitor, and color graph monitor windows.
Changes Common to Monitor Windows
Making changes effective in other monitor windows
Changes made to the display settings in a monitor window-such as a change of display
group, switching between tag number display and tag name display, or a change of the
cursor position on the trend monitor window-can be made to other monitor windows by
simply clicking one button.
Procedure
1. Click the “Link” button on the toolbar or, in the menu bar, select “Monitor” then “Link.”

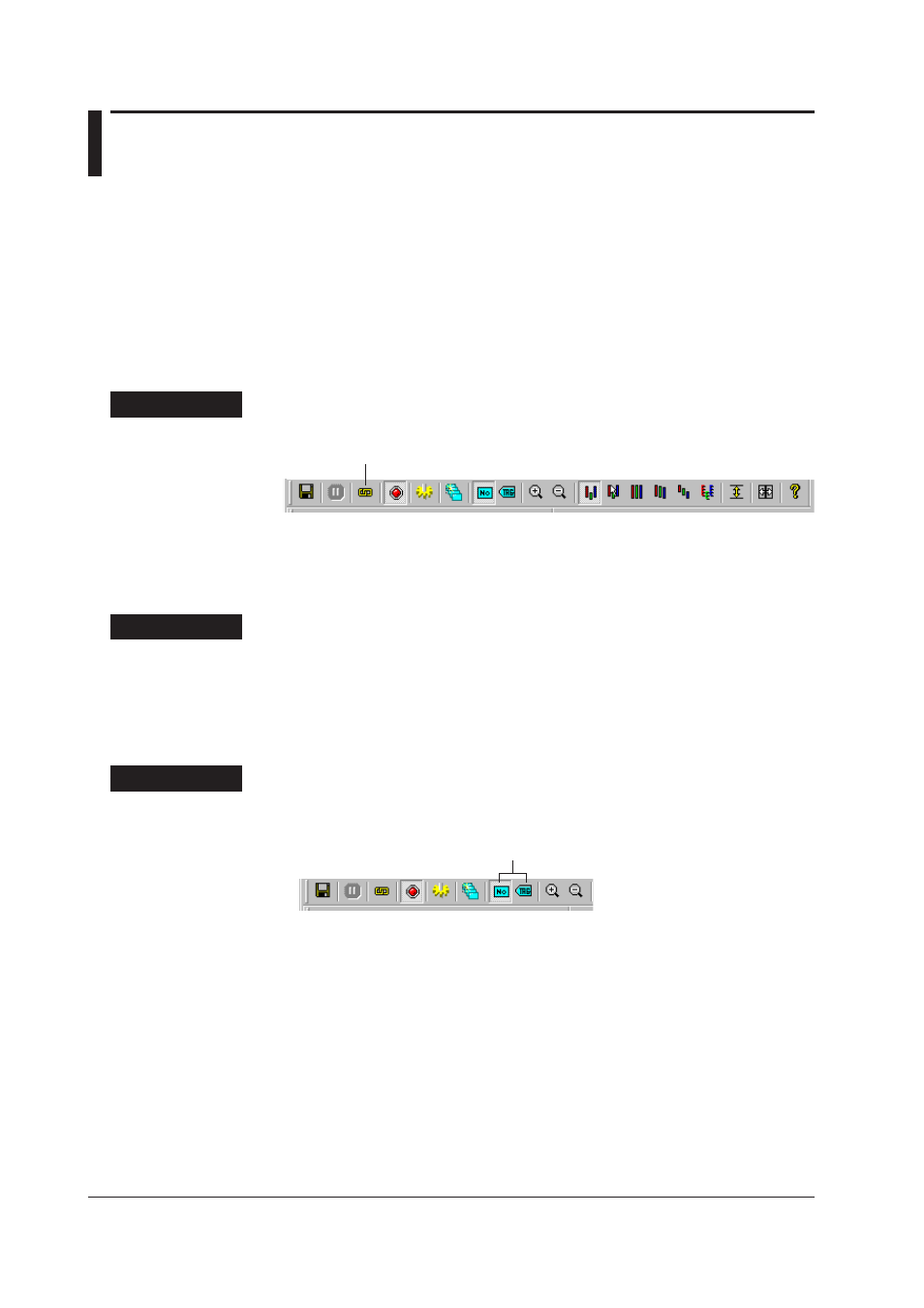

Link button
Switching the display group
The group of measured data that is being displayed can be switched. If a link is set
between monitored windows, the measured data of that group is also displayed in other
monitor windows.
Procedure
1. Click the “Group” tab in the monitor window.
The measured data of that group is displayed.
Switching tag number/name display
The tag display can be switched between tag numbers and tag names. If a link is set,
tag number/tag name display is also switched in other monitor windows.
Procedure
1. Click the “Tag Number” button or “Tag Name” button on the toolbar or, from the menu
bar, select “View” then “Tag Number” or “Tag Name.”
Tag Number / Tag Name buttons
Saving the Settings
The procedure is the same as “Saving the Settings” on the previous page.
